102.5MM INSULATED PLASTERBOARD (2438 X 1200 X 102.5MM)

DUBLIN DELIVERY ONLY

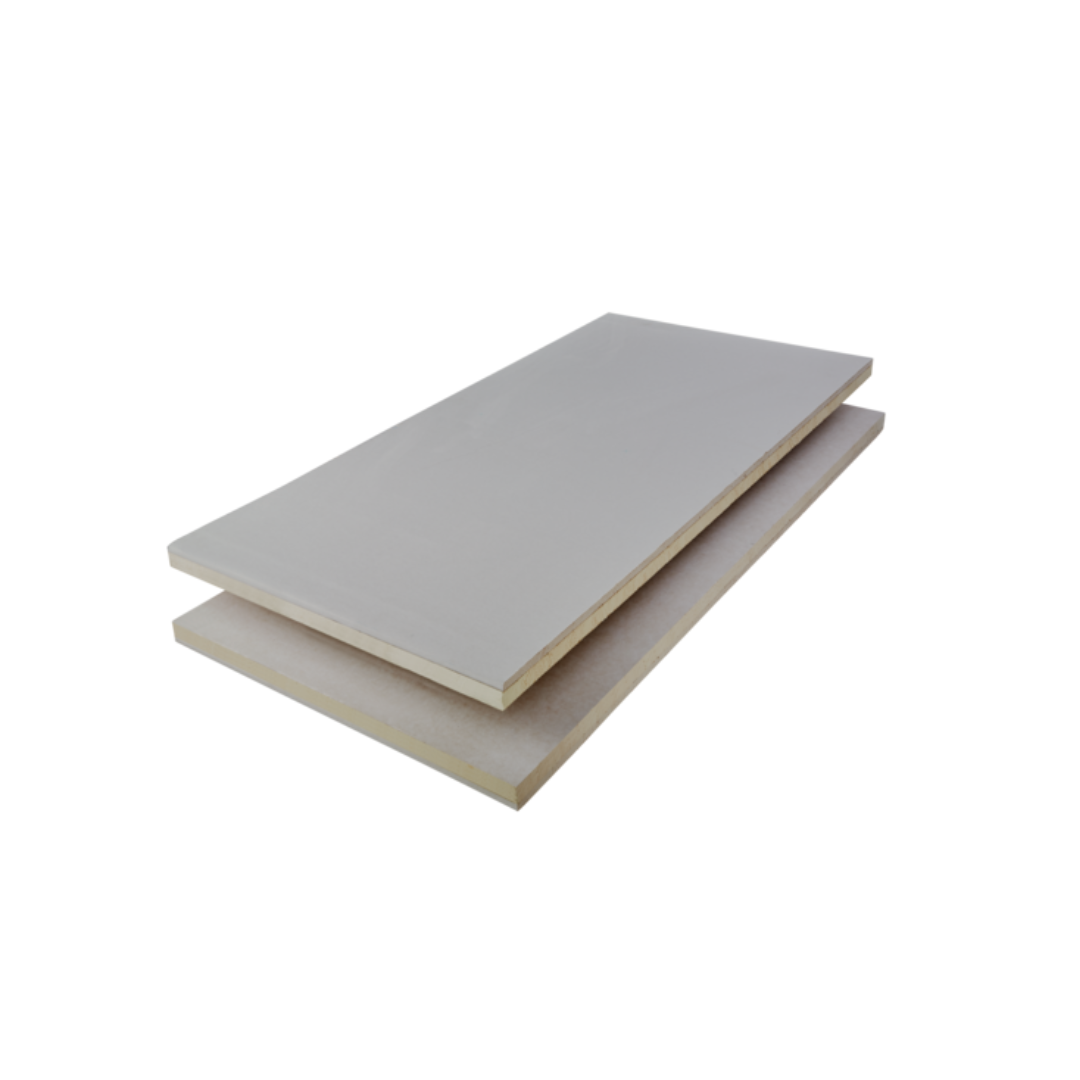

102.5mm Mannok insulated plasterboard, 2438 x 1200mm (8ft x 4ft) – a thermal board made from 90mm of rigid PIR insulation bonded to 12.5mm plasterboard, so you insulate and dry-line a wall in one go.

Key specifications

• Total thickness: 102.5mm (90mm PIR insulation + 12.5mm plasterboard)
• Board size: 2438 x 1200mm (8ft x 4ft)
• Coverage: 2.93 m² per board
• Board type: fibre-free PIR (polyisocyanurate) insulation laminated to 12.5mm plasterboard
• Thermal conductivity of PIR core (λ): 0.022 W/mK
• Reaction to fire: Euroclass B-s1,d0 (bonded to plasterboard, per Mannok's Declaration of Performance)
• Compressive strength: >150 kPa
• Certification: BBA certificate 07/4444, IAB certificate 05/0223

Uses

• Internal dry-lining of solid masonry and cavity walls, bonded with dot-and-dab adhesive plus secondary mechanical fixings
• Dry-lining onto timber battens
• Upgrading the thermal performance of walls in new builds and retrofit/renovation projects

Benefits

• Insulation and internal finish fitted in one operation, which saves time on site.
• High-performance PIR (0.022 W/mK) means less thickness for the same U-value, so you keep more room space.
• The plasterboard face gives a ready surface for finishing, and it improves the finish on old, uneven walls.
• Zero ozone depletion potential (ODP), low global warming potential (GWP) and an A+ rating against the BRE Green Guide.

FAQs

How do I fix insulated plasterboard?
On even, dry masonry walls, fix it with dot-and-dab drylining adhesive and 2 secondary mechanical fixings at mid-height. Alternatively, fix it to timber battens. Follow Mannok's installation guidance.

How many boards do I need?
Each board covers 2.93 m² (2.438 x 1.2m). Divide your wall area by the board coverage and round up, allowing extra for cuts around openings.

Which thickness do I need?
That depends on your wall build-up and target U-value. Thicker boards give better insulation. As a guide, Mannok quotes a U-value of about 0.21 W/m²K for 102.5mm board dot-and-dabbed onto a 215mm dense block wall. Mannok's U-value calculator and technical support can confirm the right board for Irish Building Regulations.

Do you deliver?
Insulated plasterboard is available for Dublin delivery only.

Insulation specifications from Mannok's published product information for Mannok Therm Laminate insulated plasterboard.
