Crimp Tees

Equal, reducing and female-branch multilayer crimp tees. Reducing tee sizes are read end x branch x end.

Rifeng multilayer crimp fittings from Excel Industries, for 16mm, 20mm and 26mm PEX-AL-PEX multilayer pipe. Nickel-plated brass bodies, 304 stainless steel crimp sleeves with inspection windows and twin EPDM O-rings, rated to 95°C and 10 bar.

Make the joint with a multilayer crimp/press tool fitted with U or TH profile jaws for the pipe size. Cut the pipe square, then calibrate and deburr it before fitting. For hot and cold water and central heating - not for gas.

Multilayer pipe sizes are outside diameters (16mm, 20mm, 26mm), so check your pipe and jaw profile before ordering.

MORE INFORMATION About Crimp Tees

Equal, reducing and female-branch multilayer crimp tees. Reducing tee sizes are read end x branch x end.

Rifeng multilayer crimp fittings from Excel Industries, for 16mm, 20mm and 26mm PEX-AL-PEX multilayer pipe. Nickel-plated brass bodies, 304 stainless steel crimp sleeves with inspection windows and twin EPDM O-rings, rated to 95°C and 10 bar.

Make the joint with a multilayer crimp/press tool fitted with U or TH profile jaws for the pipe size. Cut the pipe square, then calibrate and deburr it before fitting. For hot and cold water and central heating - not for gas.

Multilayer pipe sizes are outside diameters (16mm, 20mm, 26mm), so check your pipe and jaw profile before ordering.

15 products

15 products

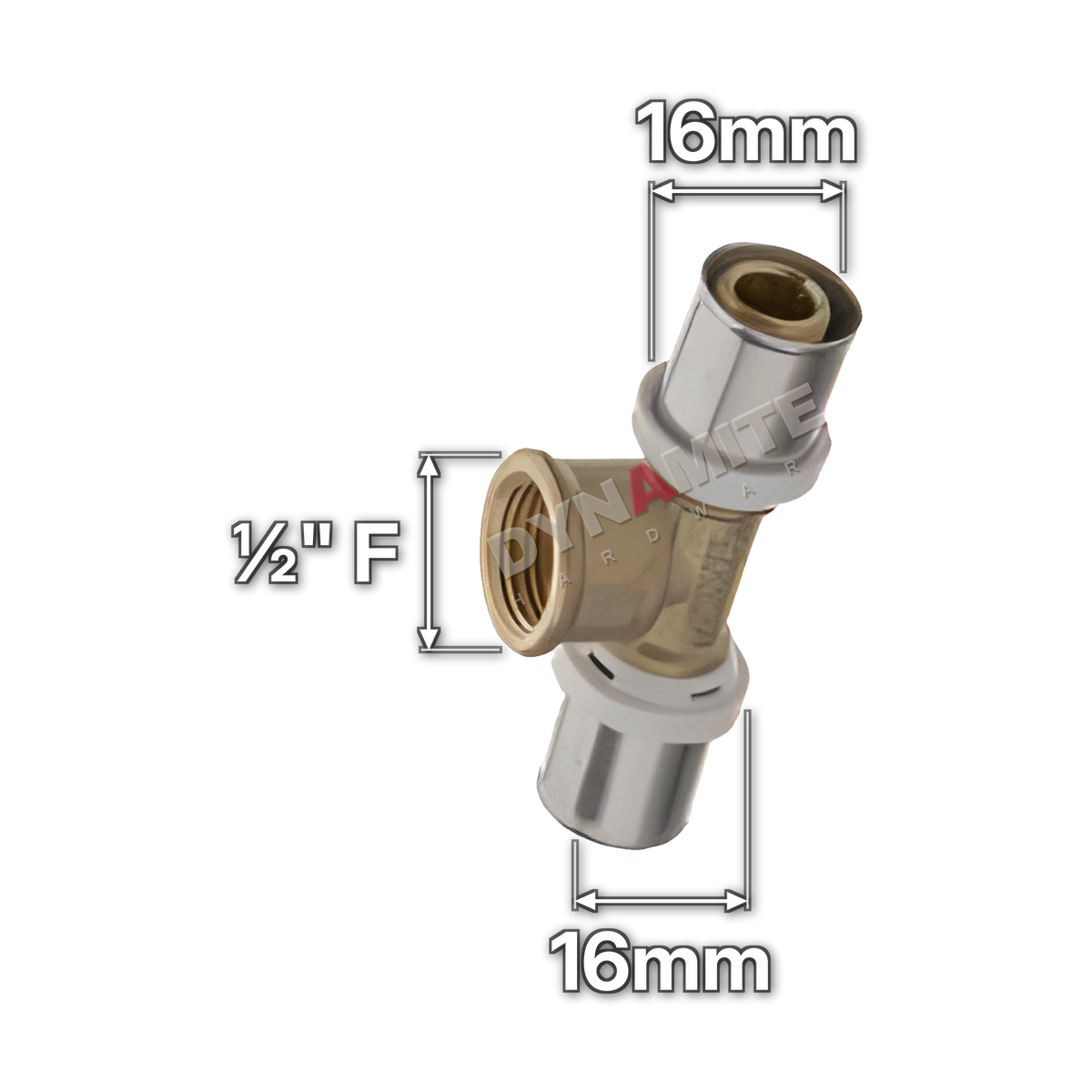

16mm x ½" Female x 16mm Multilayer Crimp Tee (code MF301612), size marked with white arrows: 16mm crimp x ½" female iron (BSP) branch x 16mm crimp
16mm x ½" Female x 16mm Multilayer Crimp Tee €4,25

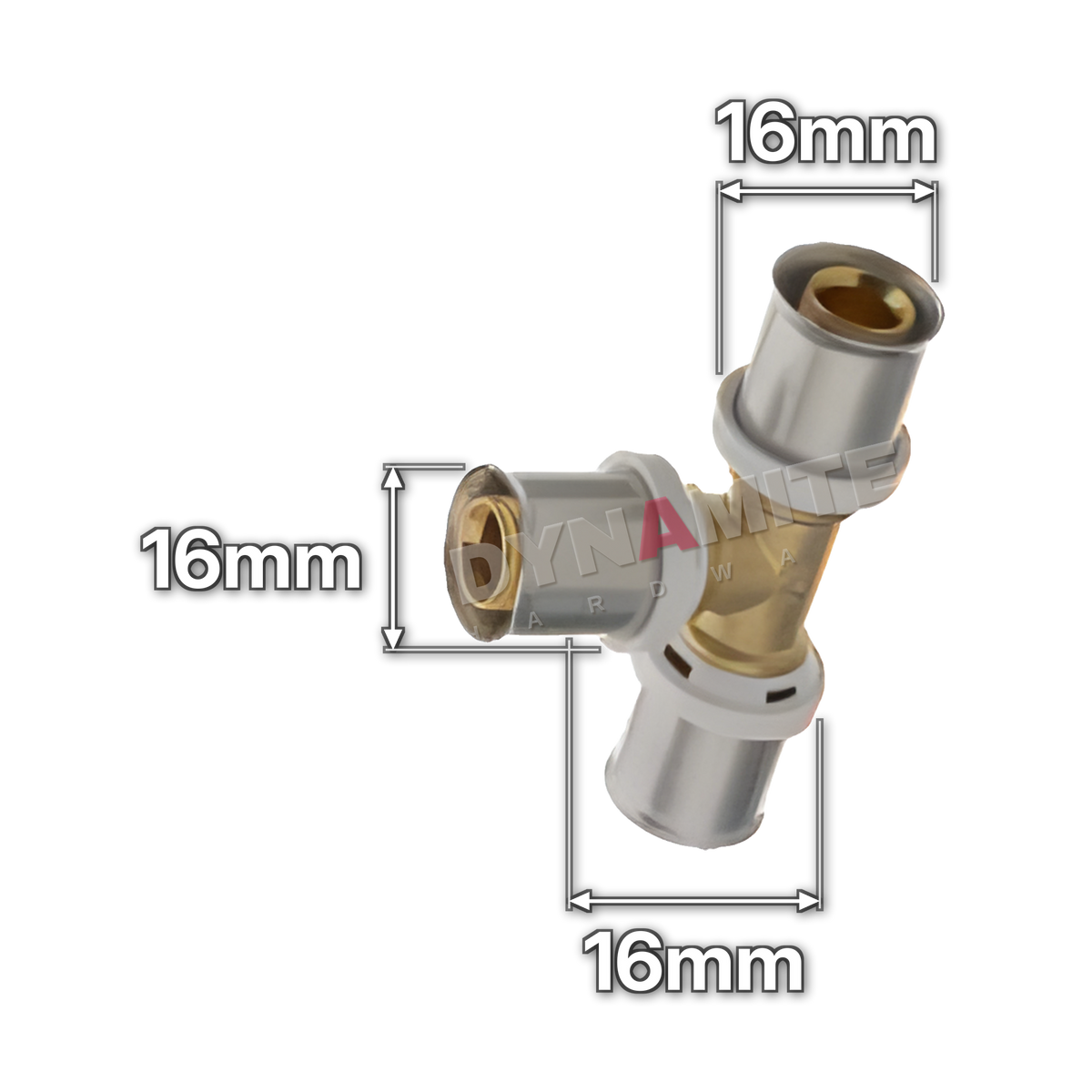

16mm Multilayer Crimp Equal Tee (code MF1816), size marked with white arrows: 16mm crimp on all three ends
16mm Multilayer Crimp Equal Tee €4,25
16mm x 20mm x 16mm Multilayer Crimp Reducing Tee (code MF18162016), size marked with white arrows: End 16mm x branch 20mm x end 16mm (all crimp)
16mm x 20mm x 16mm Multilayer Crimp Reducing Tee €4,95
20mm x ½" Female x 20mm Multilayer Crimp Tee (code MF302012), size marked with white arrows: 20mm crimp x ½" female iron (BSP) branch x 20mm crimp
20mm x ½" Female x 20mm Multilayer Crimp Tee €4,95

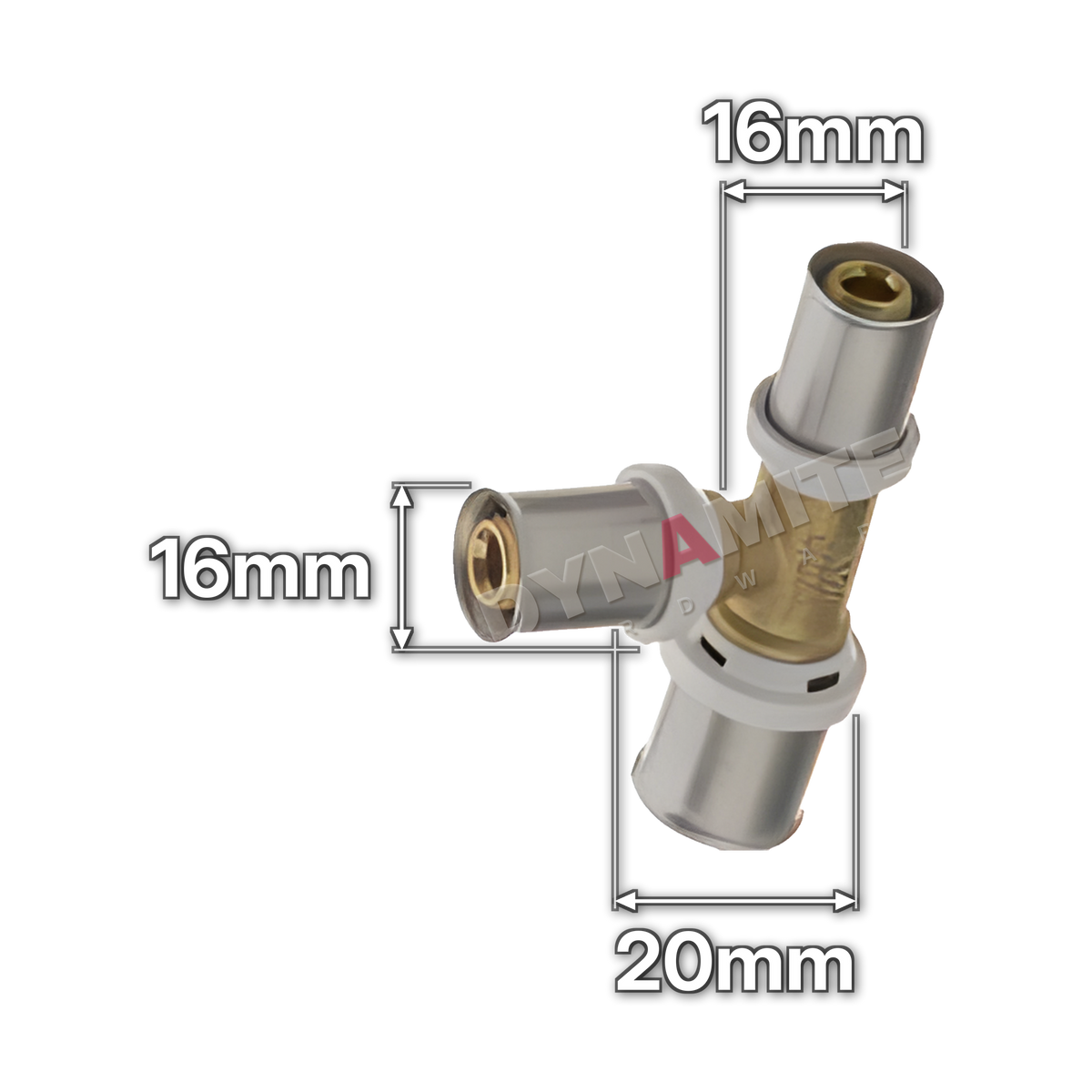

20mm x 16mm x 16mm Multilayer Crimp Reducing Tee (code MF18201616), size marked with white arrows: End 20mm x branch 16mm x end 16mm (all crimp)
20mm x 16mm x 16mm Multilayer Crimp Reducing Tee €4,95

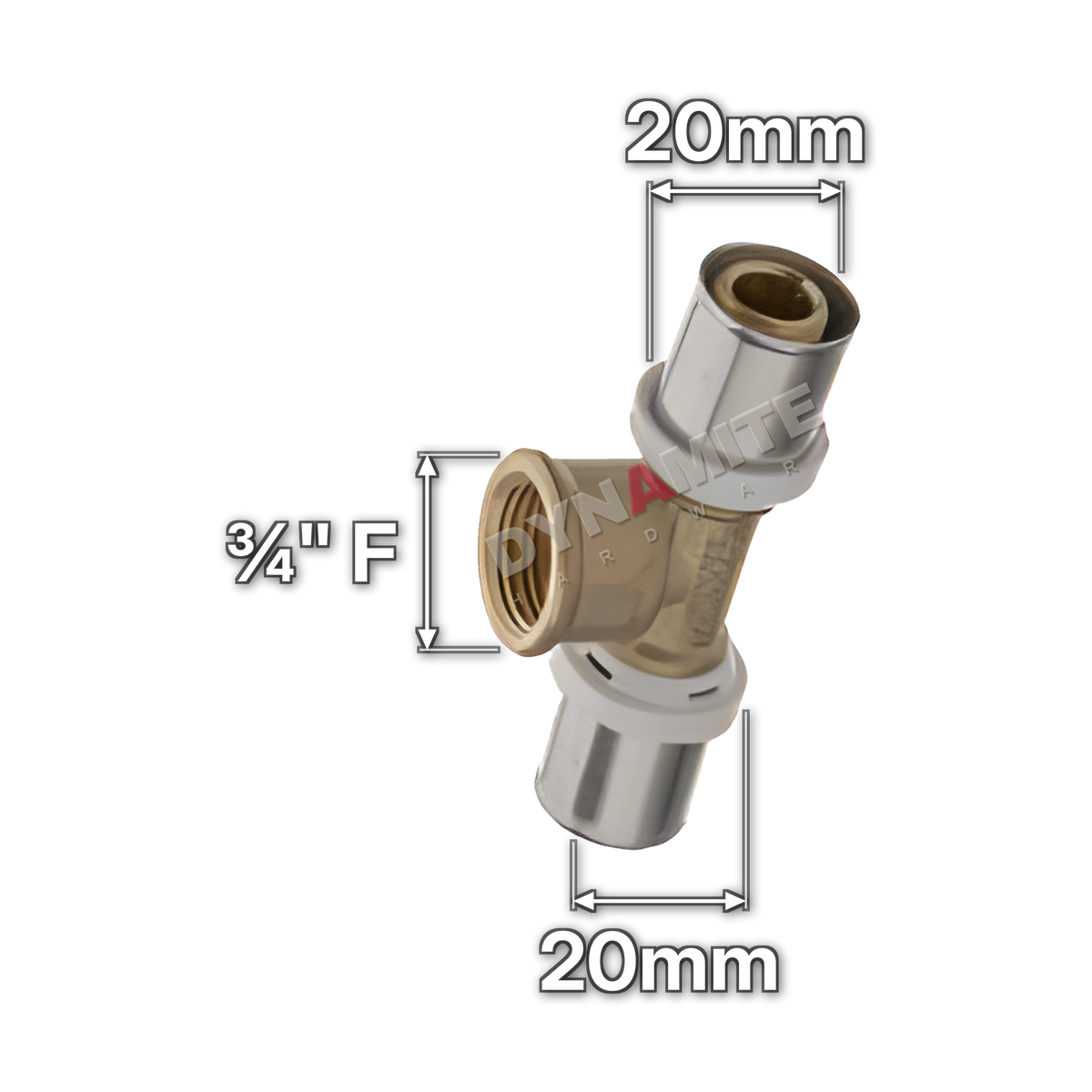

20mm x ¾" Female x 20mm Multilayer Crimp Tee (code MF302034), size marked with white arrows: 20mm crimp x ¾" female iron (BSP) branch x 20mm crimp
20mm x ¾" Female x 20mm Multilayer Crimp Tee €5,49
20mm Multilayer Crimp Equal Tee (code MF1820), size marked with white arrows: 20mm crimp on all three ends
20mm Multilayer Crimp Equal Tee €5,49
20mm x 16mm x 20mm Multilayer Crimp Reducing Tee (code MF18201620), size marked with white arrows: End 20mm x branch 16mm x end 20mm (all crimp)
20mm x 16mm x 20mm Multilayer Crimp Reducing Tee €5,49

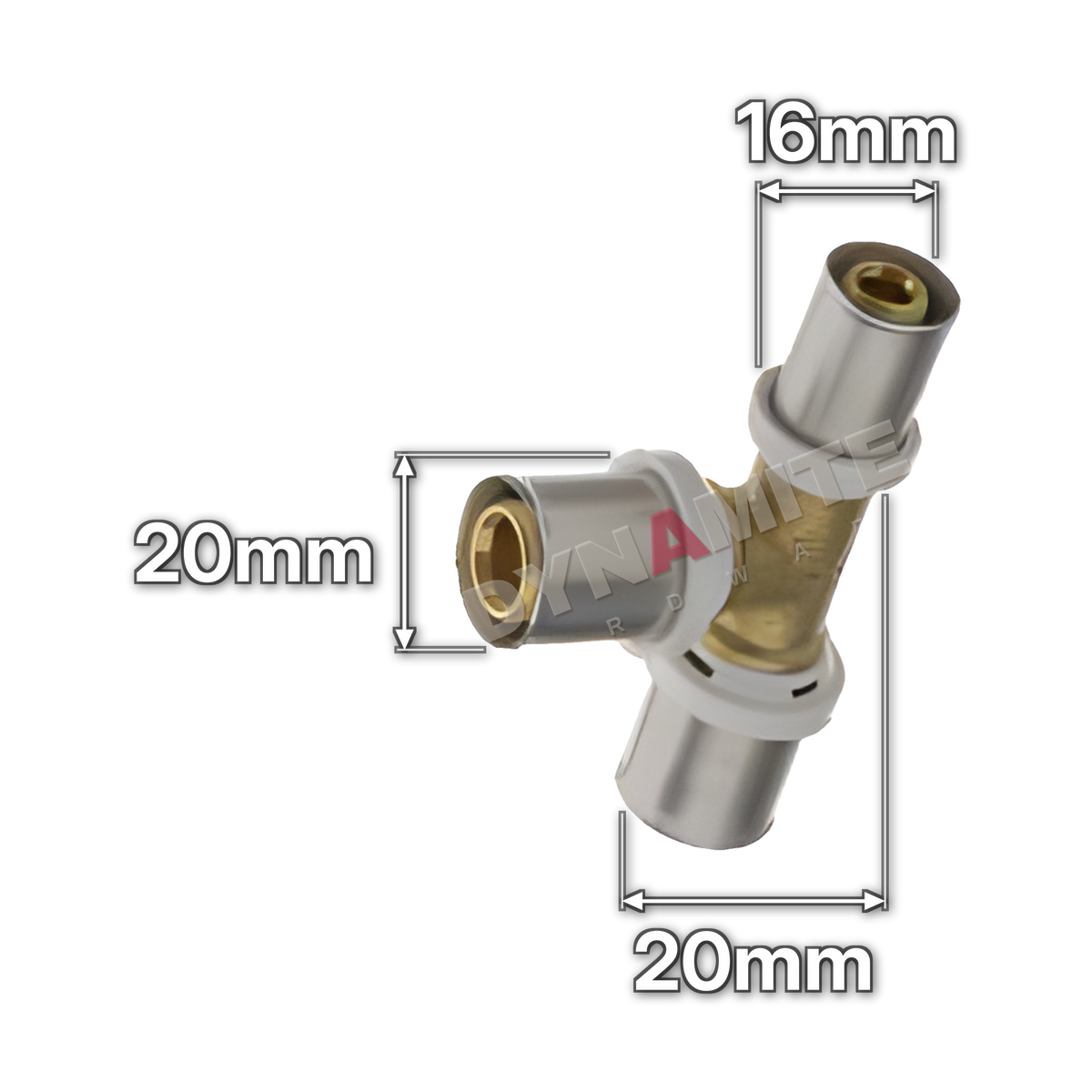

20mm x 20mm x 16mm Multilayer Crimp Reducing Tee (code MF18202016), size marked with white arrows: End 20mm x branch 20mm x end 16mm (all crimp)
20mm x 20mm x 16mm Multilayer Crimp Reducing Tee €5,49

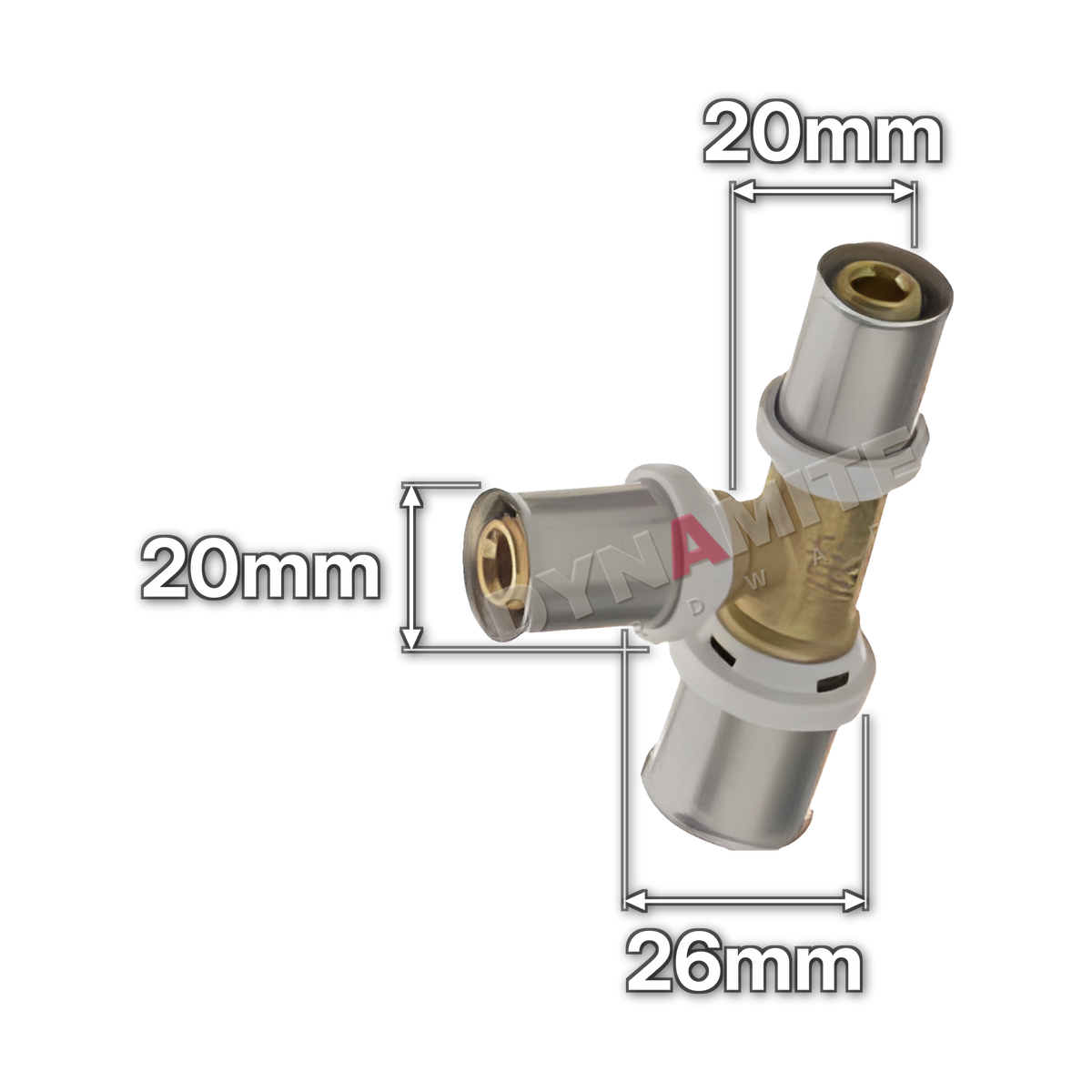

26mm x 20mm x 20mm Multilayer Crimp Reducing Tee (code MF18262020), size marked with white arrows: End 26mm x branch 20mm x end 20mm (all crimp)
26mm x 20mm x 20mm Multilayer Crimp Reducing Tee €6,95

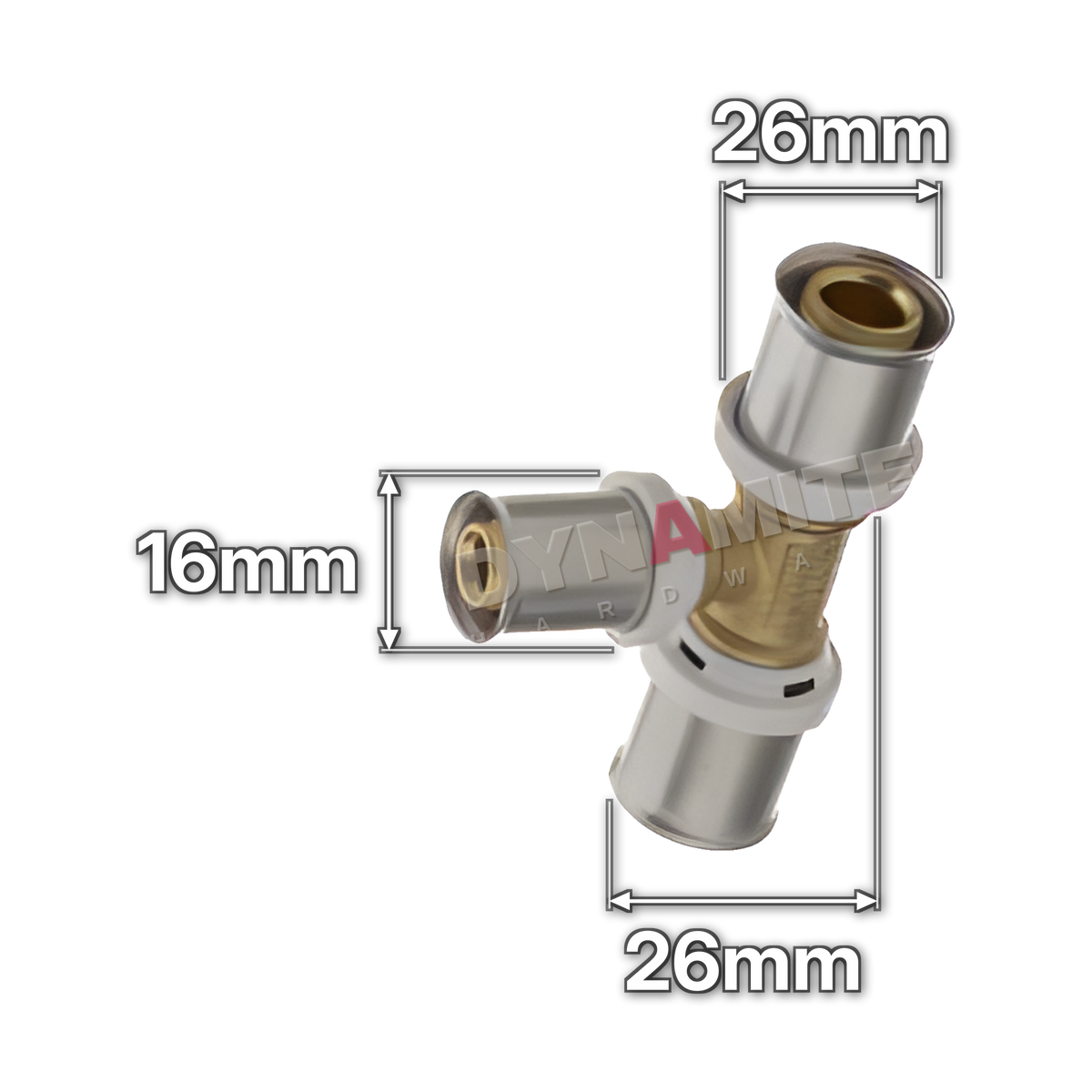

26mm x 16mm x 26mm Multilayer Crimp Reducing Tee (code MF18261626), size marked with white arrows: End 26mm x branch 16mm x end 26mm (all crimp)
26mm x 16mm x 26mm Multilayer Crimp Reducing Tee €7,49

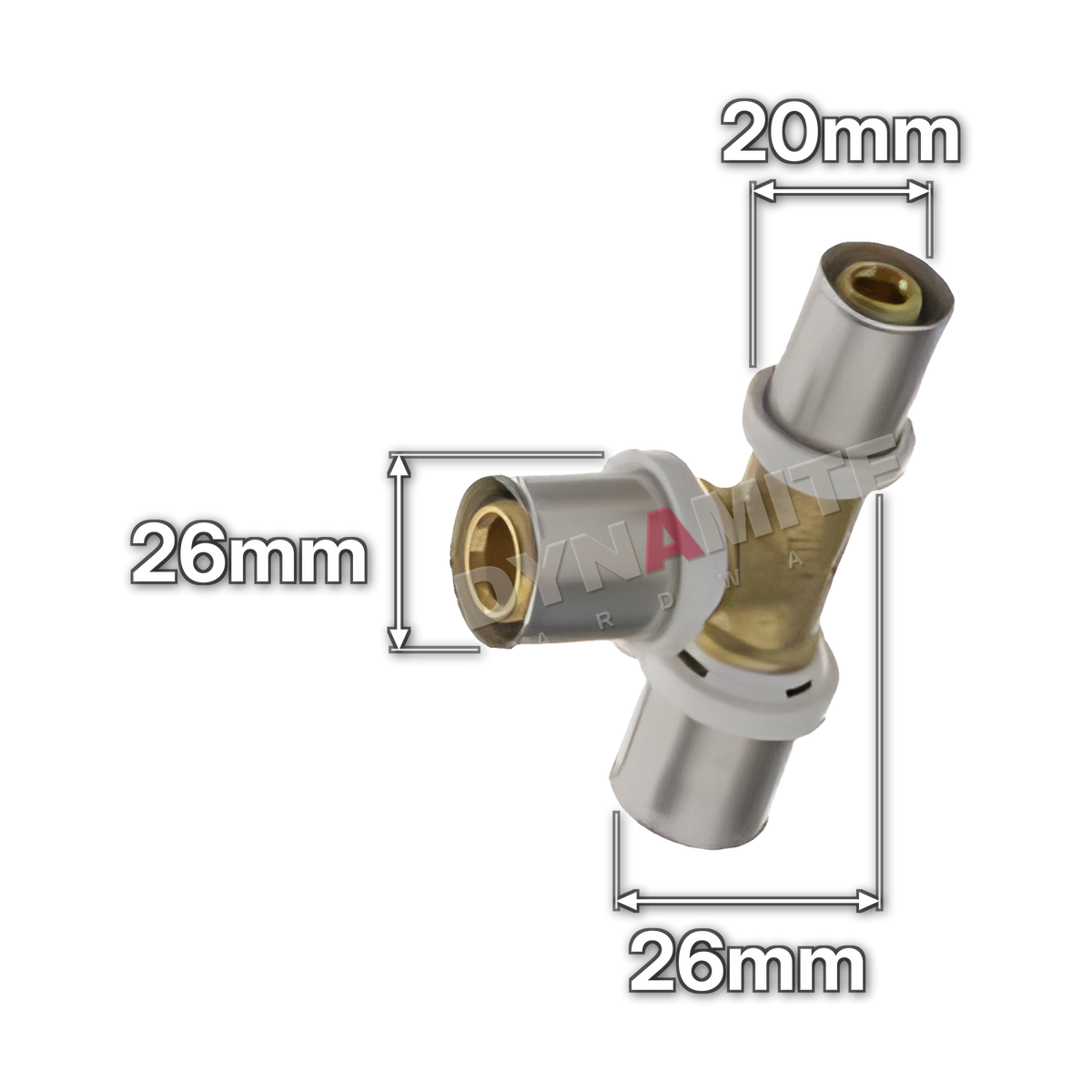

26mm x 26mm x 20mm Multilayer Crimp Reducing Tee (code MF18262620), size marked with white arrows: End 26mm x branch 26mm x end 20mm (all crimp)
26mm x 26mm x 20mm Multilayer Crimp Reducing Tee €7,49

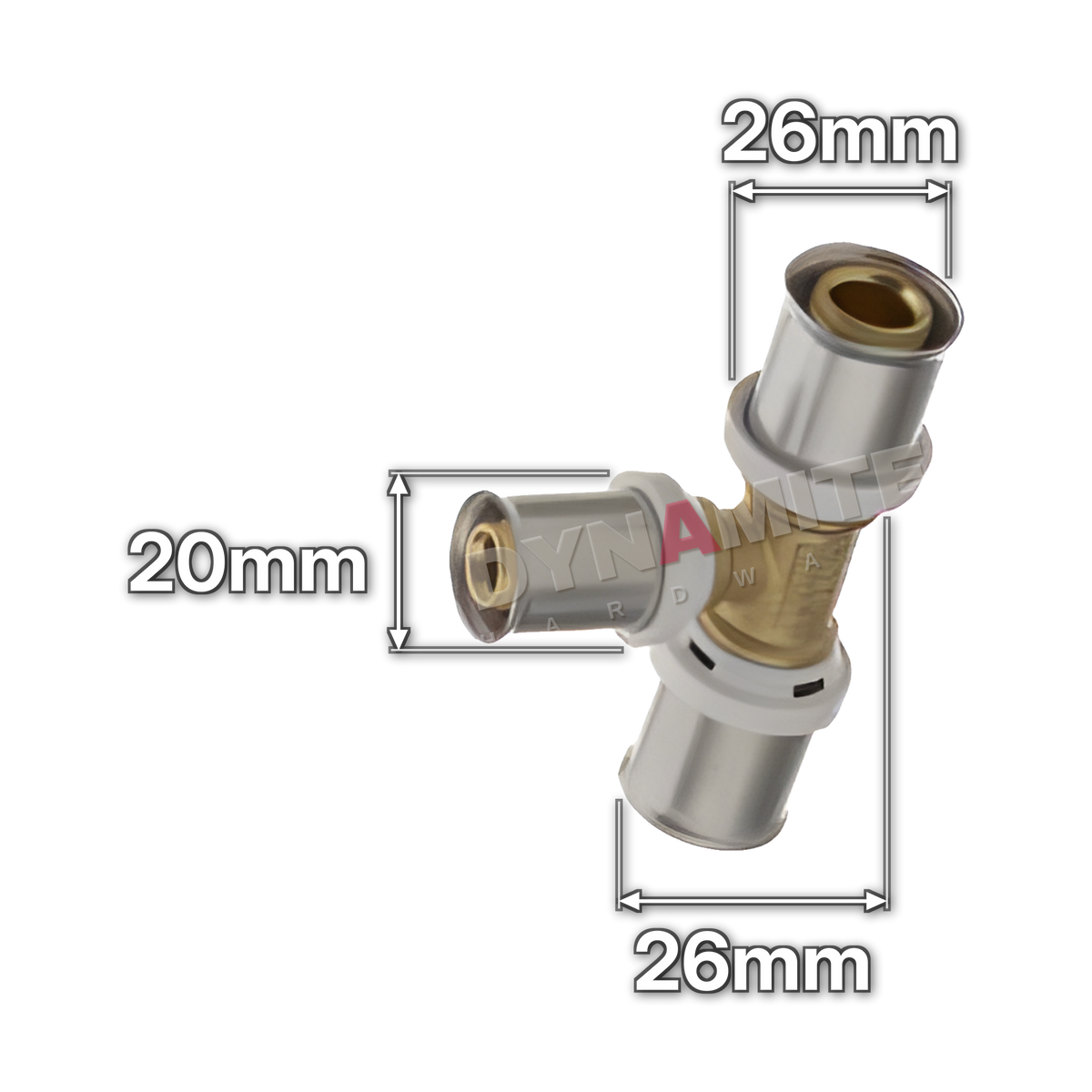

26mm x 20mm x 26mm Multilayer Crimp Reducing Tee (code MF18262026), size marked with white arrows: End 26mm x branch 20mm x end 26mm (all crimp)
26mm x 20mm x 26mm Multilayer Crimp Reducing Tee €7,95
26mm x ¾" Female x 26mm Multilayer Crimp Tee (code MF302634), size marked with white arrows: 26mm crimp x ¾" female iron (BSP) branch x 26mm crimp
26mm x ¾" Female x 26mm Multilayer Crimp Tee €8,49

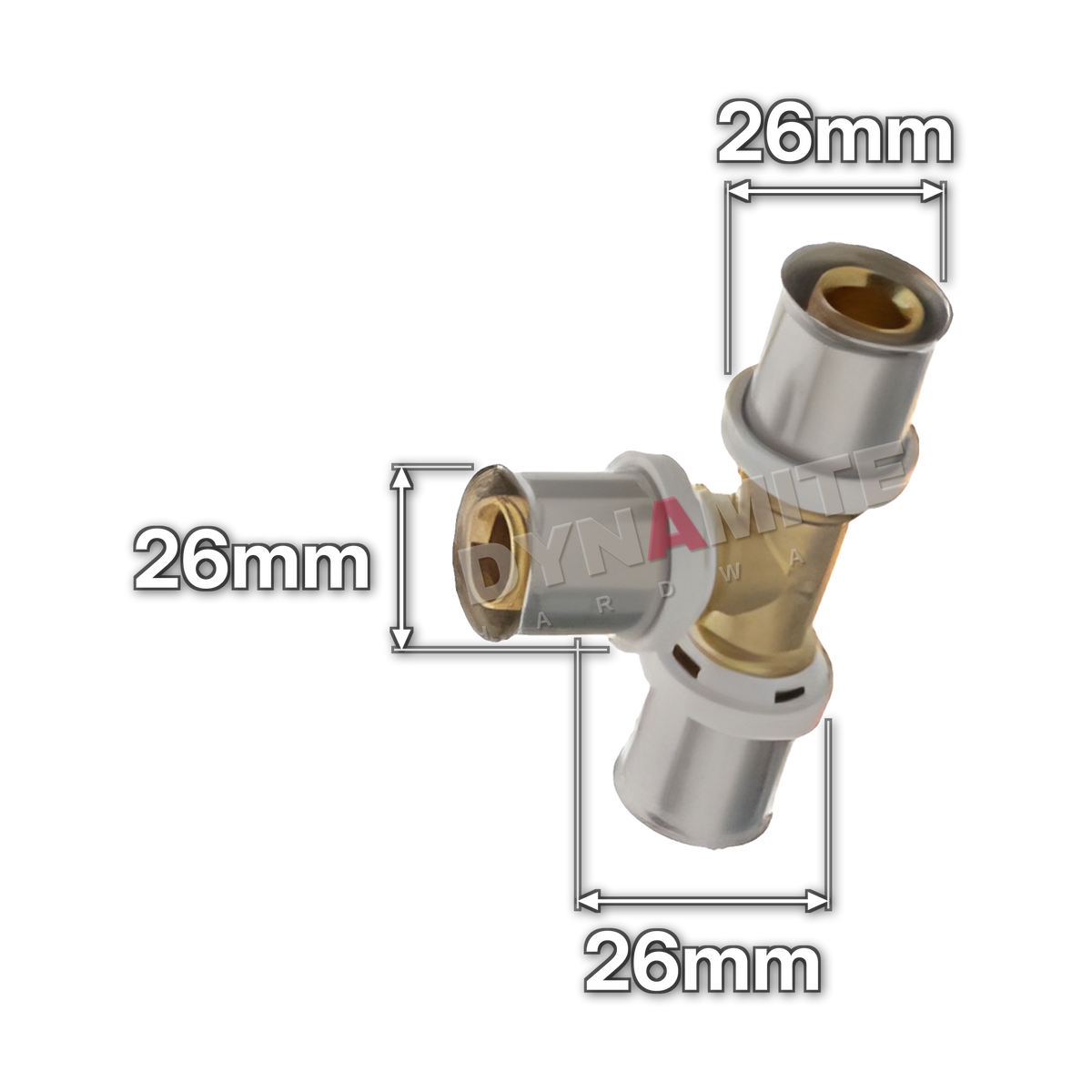

26mm Multilayer Crimp Equal Tee (code MF1826), size marked with white arrows: 26mm crimp on all three ends
26mm Multilayer Crimp Equal Tee €9,49
