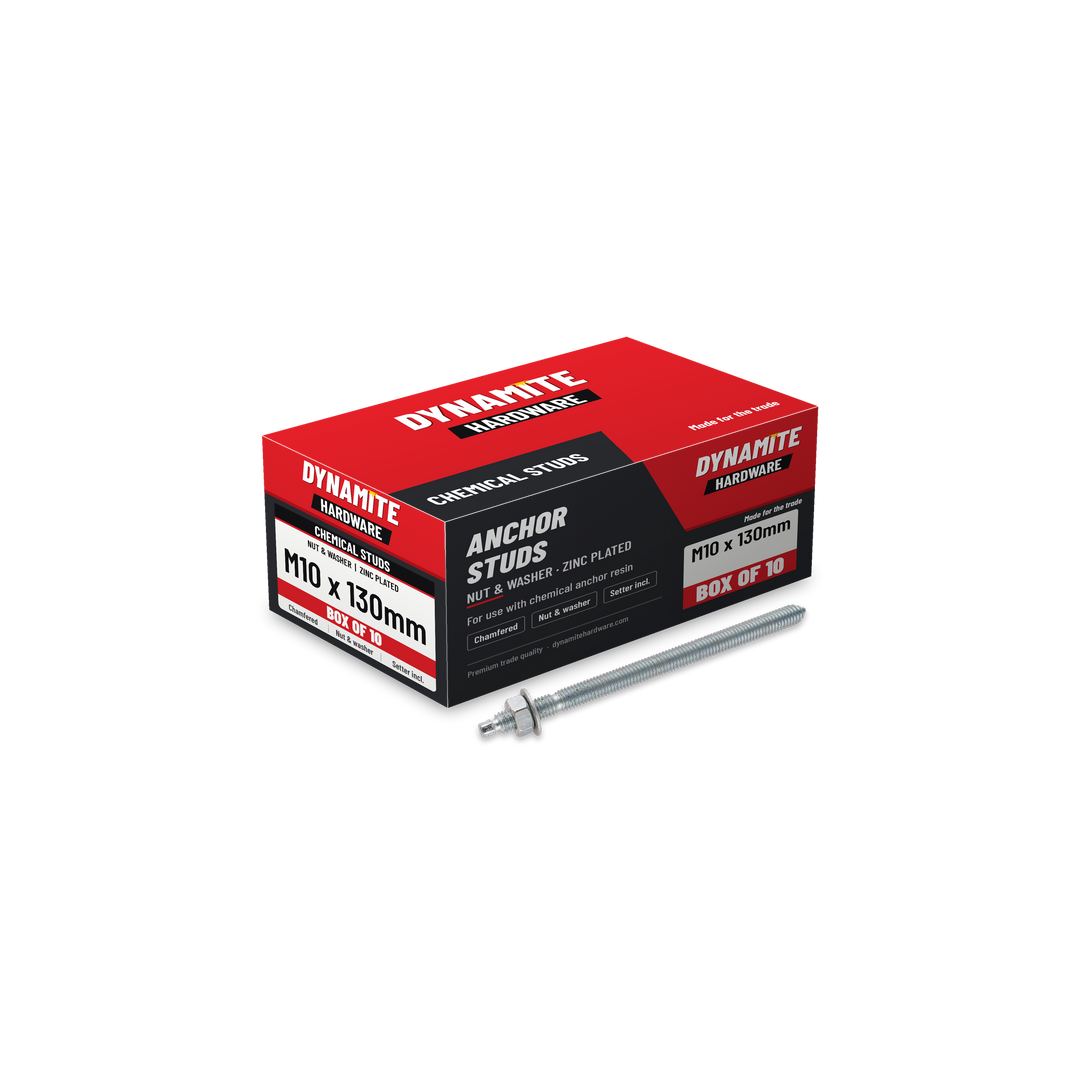

Chemical Anchor Studs M10 x 130mm Zinc Plated with Nuts & Washers – Box of 10

M10 x 130mm chemical anchor studs, zinc plated, box of 10 complete with hex full nuts, Form A washers and a nut setter. Set in chemical resin they give a stress-free, high-load fixing in concrete, solid and hollow masonry – with no expansion forces, so they can be used close to edges.

The chisel point cuts through the resin as the stud is inserted for a thorough mix and full bond along the thread.

Key features

• Pre-cut threaded stud with chisel point
• Supplied with hex full nuts and Form A washers
• Nut setter included for driving with a drill
• Zinc plated for internal use
• No expansion stress – fix close to edges

Specification

Packaging may vary from the image shown. Supplied as specified.

Applications

Heavy brackets, steelwork, balustrades, canopies, racking, signage and machinery into concrete, solid brick and block, and hollow masonry with a resin sleeve. Use with our chemical resins.

FAQs

What size hole do I drill for M10 studs?

Drill a 12mm hole to a depth of 90mm, then clean it thoroughly with a blow-out pump and brush before injecting resin.

Which resin should I use?

Polyester resin suits general-purpose fixing into masonry; vinylester resin gives higher performance in concrete and damp holes. Check the cartridge for curing times.

Zinc or galvanised?

Zinc-plated studs are for dry, internal environments. Hot dip galvanised studs have a corrosion rating of 4 and are the choice for external work.

Can I use them in hollow block?

Yes – use a resin sleeve in the hole so the resin is contained and keys around the cavities.

Other sizes and related products

Browse the full chemical anchoring range, or see our threaded bar and throughbolts.
