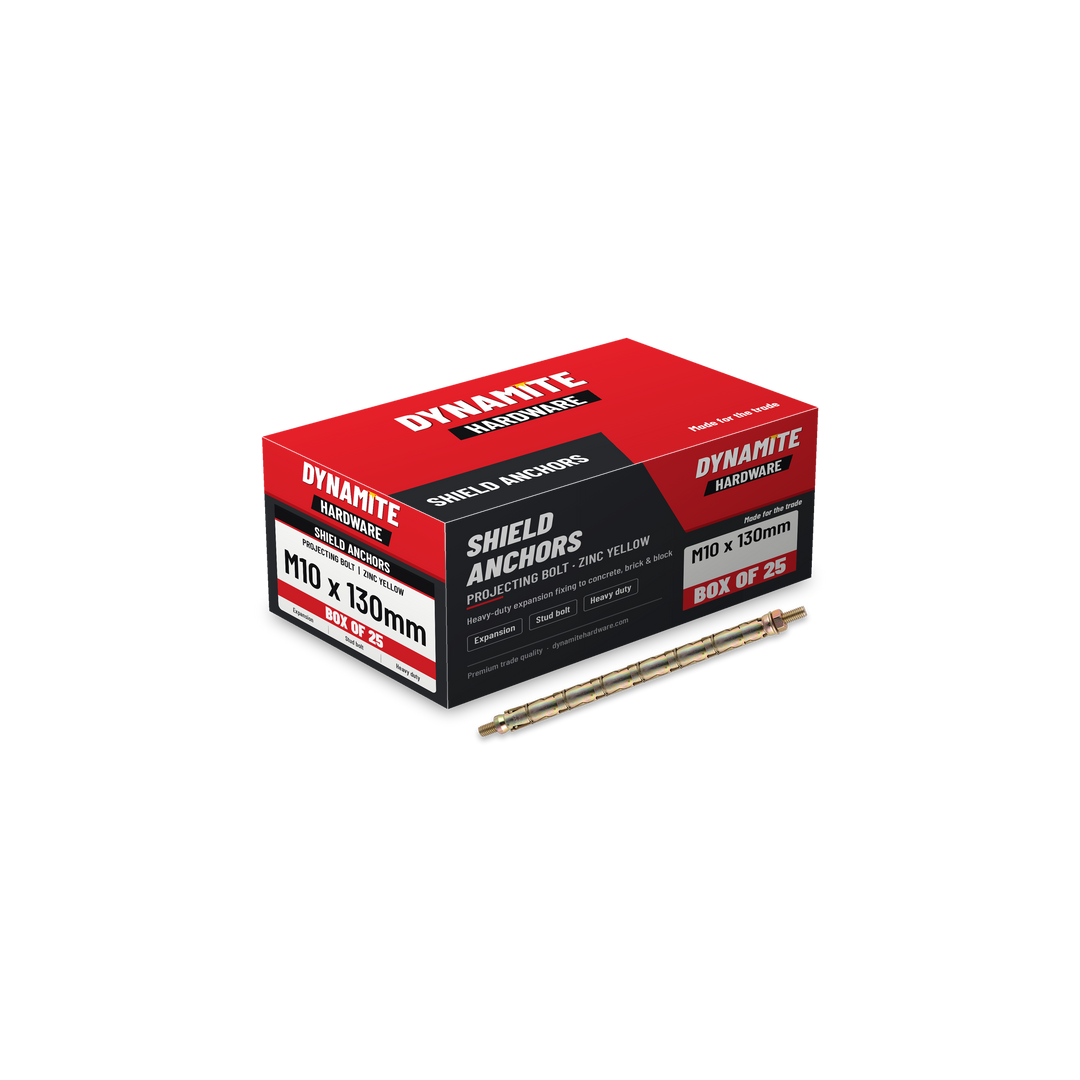

Projecting Bolt Shield Anchors M10 x 130mm (60P) – Box of 25

M10 shield anchors, zinc and yellow passivated, box of 25. The classic heavy-duty expansion anchor – the four-segment shield opens as the bolt is tightened, gripping solid concrete, brick and block with a high, reliable hold.

This version is supplied with a projecting stud (60mm max. fixture thickness), so the fixture can be hung in place before the nut is tightened. Ideal for gates, railings, brackets, racking and heavy fixtures where a removable bolted fixing is needed.

Key features

• Heavy-duty segmented expansion shield
• Suitable for concrete, solid brick and block
• Projecting stud – hang the fixture, then tighten
• Removable bolted fixing
• Zinc & yellow passivated finish

Specification

Packaging may vary from the image shown. Supplied as specified.

Applications

Gates and gate posts, railings and balustrades, brackets, racking, machinery, signage and heavy fixtures into concrete, solid brick and block. For internal or sheltered use.

FAQs

Shield anchor or throughbolt – which should I use?

Shield anchors work in concrete, solid brick and block and allow the bolt to be removed. Throughbolts are quicker to install but are designed for solid concrete only.

What does the P or L number mean?

The number is the maximum fixture thickness in millimetres – 60mm for this anchor. P means a projecting stud, L means a loose bolt.

What size hole do I drill?

Drill to the outside diameter of the shield (not the bolt size) and slightly deeper than the shield length. Always clean the hole before inserting the anchor.

Can I use them in hollow block?

No – shield anchors need a solid substrate. For hollow block or brick use chemical resin with a resin sleeve.

Other sizes and related products

Other sizes in this range: M10 x 100mm, M10 x 85mm.

Browse the full shield anchors range, or see our throughbolts and chemical anchoring.
