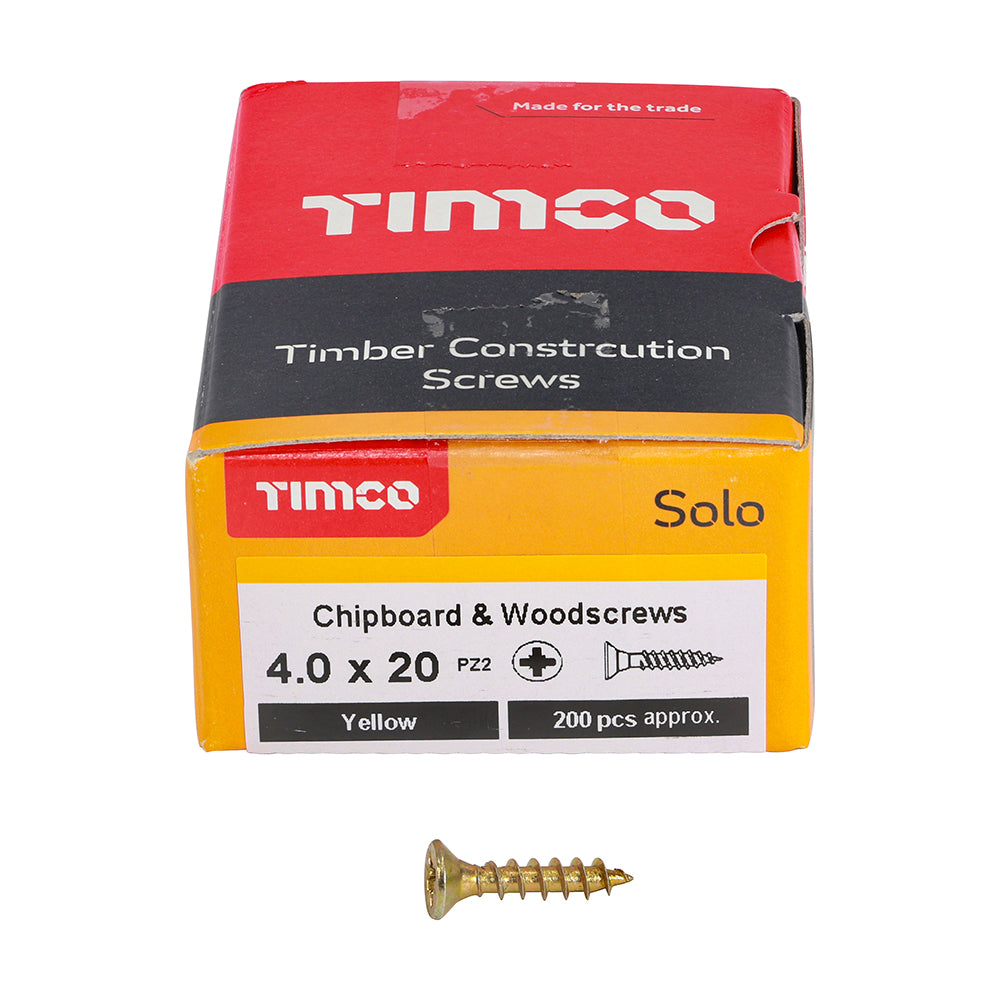

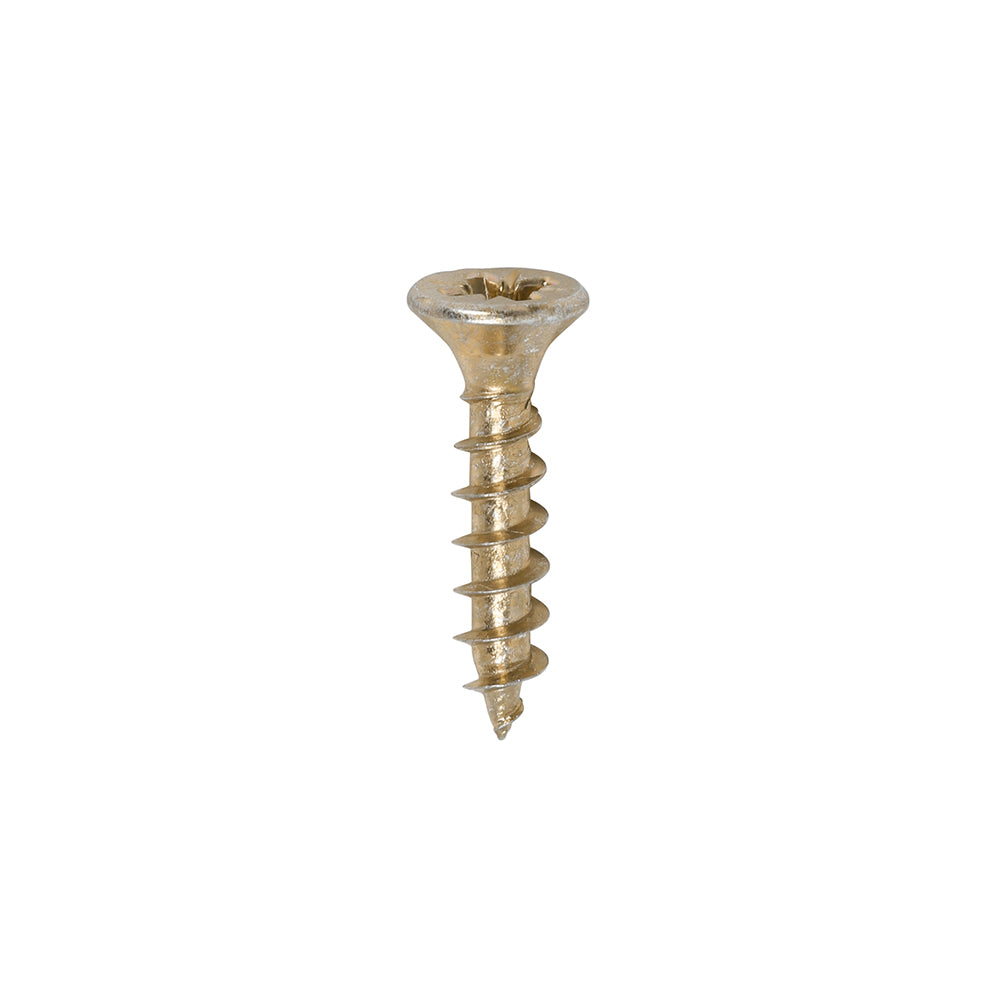

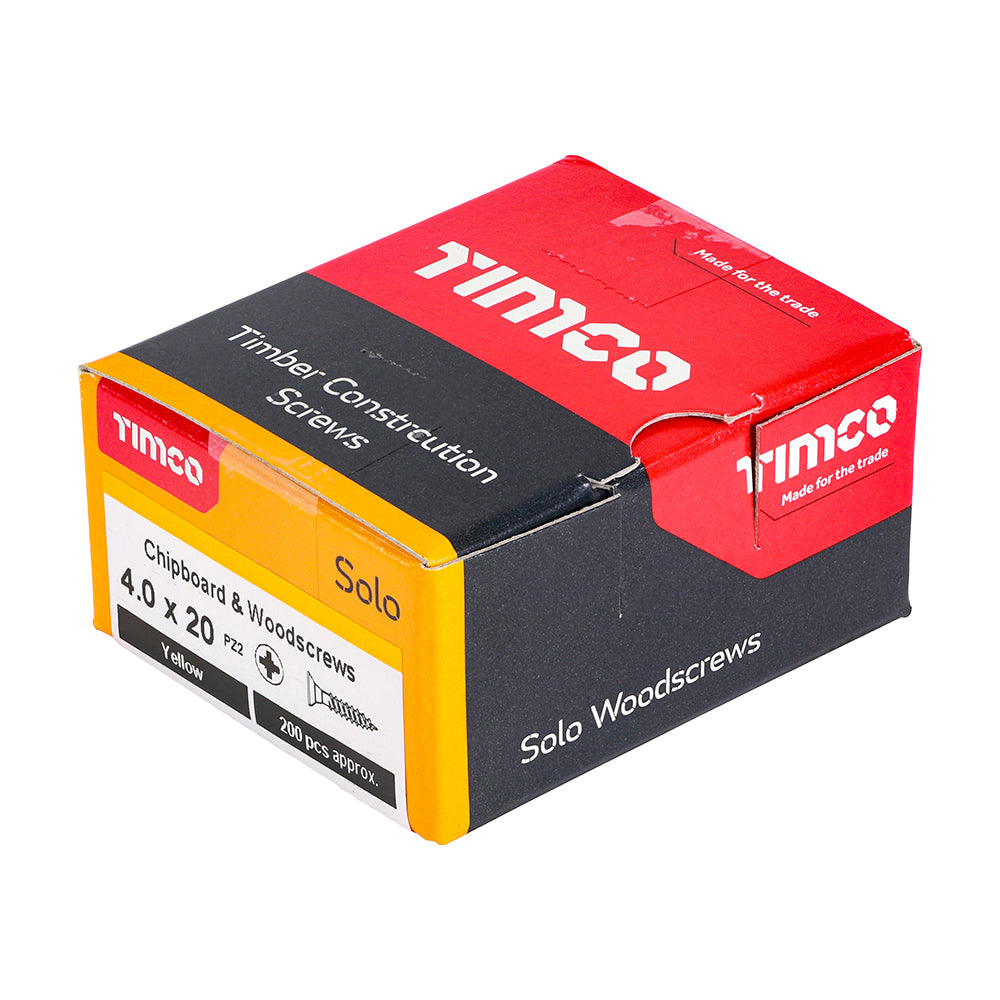

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 4.0 x 20mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 4.0 x 20mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 4.0 x 20mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 4.0 x 20mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 4.0 x 20mm (200 QTY)

Regular price €4,50
/
Tax included.

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length





Material Carbon Steel
L (inch) 34
Pack Quantity Unit Pieces
Substrates Softwood, Chipboard, MDF, Masonry (with plug)
Pack Qty 200
Packs per Carton 75
Lubrication Wax
Pack Type Box
Packs per Pallet 2700
Thread Ø (mm) 4
Head Ø (mm) 7.62
Head Type Double Countersunk
Size (mm) 4.0 x 20
Pallet Qty (pcs) 540000
Thread L (mm) 15
Gauge 8
Finish Zinc & Yellow
Inner Thread Ø d1 (mm) 2.5
MOQ 1
L (mm) 20
Size (imp.) 8 x 34
Recess Type Pozi
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
Thread Type 40° Single Deep
MOQ Increment 1
Point Type 25° Sharp
Driver Bit Size PZ2
Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Feature 2 Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
Feature 4 25° sharp point and single lead for a fast start and improved thread acceptance
Brand TIMCO
Feature 5 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
Thread Coverage Fully Threaded
Pack Weight (kg) 0.24
Pack Dimensions L x W x H (mm) 72 x 60 x 36
