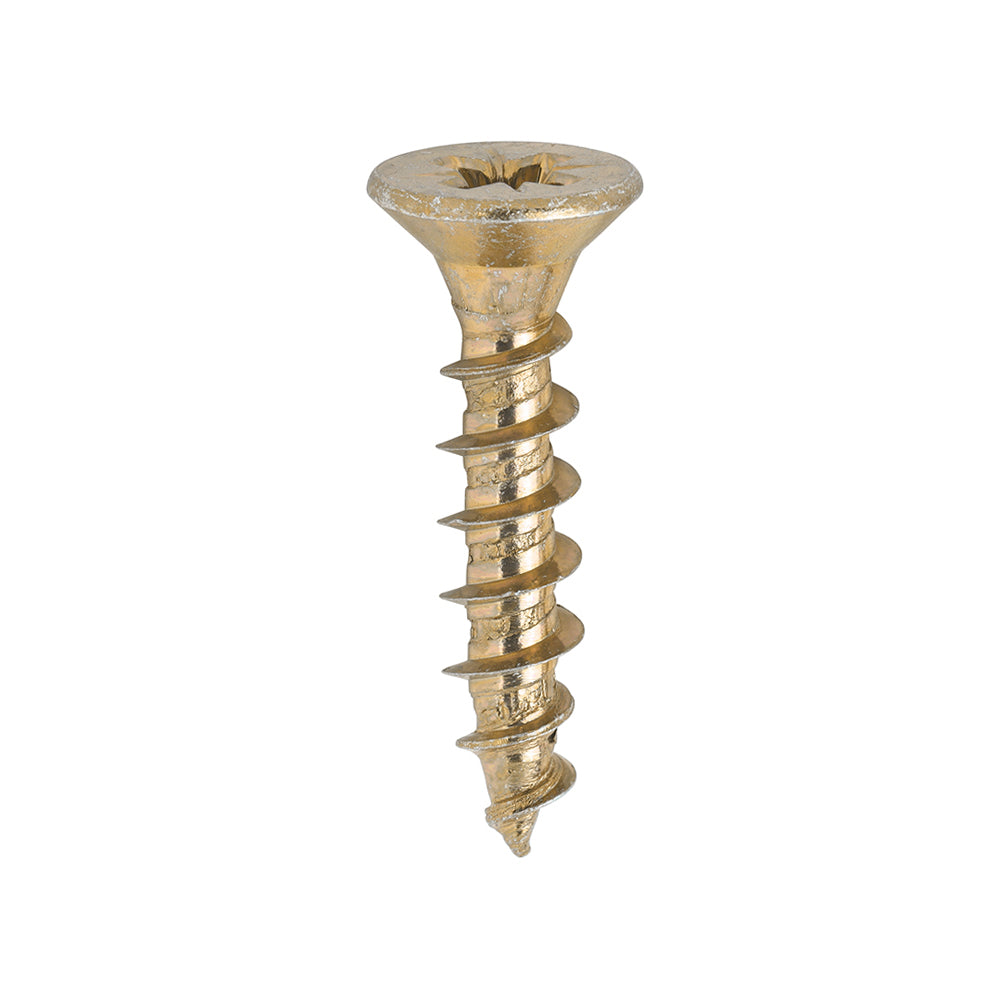

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 25mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 25mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 25mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 25mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 25mm (200 QTY)

Regular price €5,25
/
Tax included.

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length




Thread Type 40° Single Deep
L (mm) 25
Recess Type Pozi

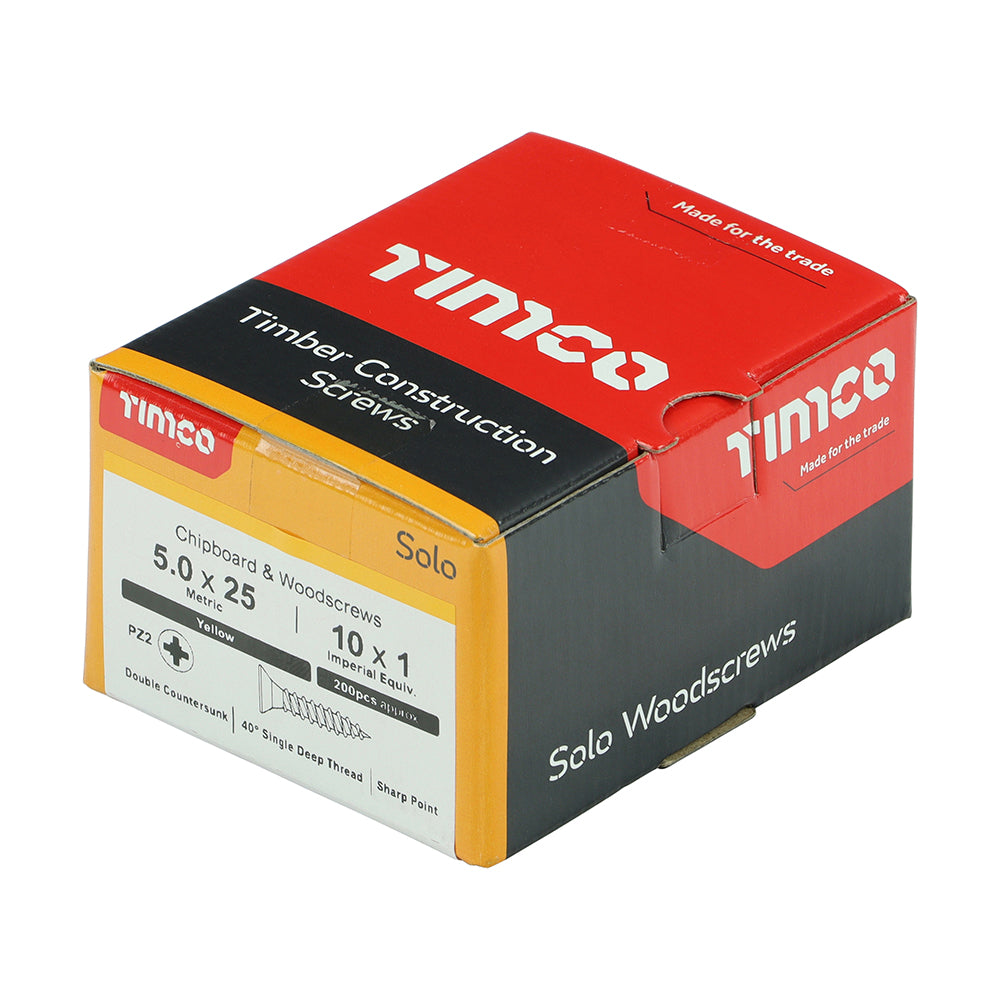

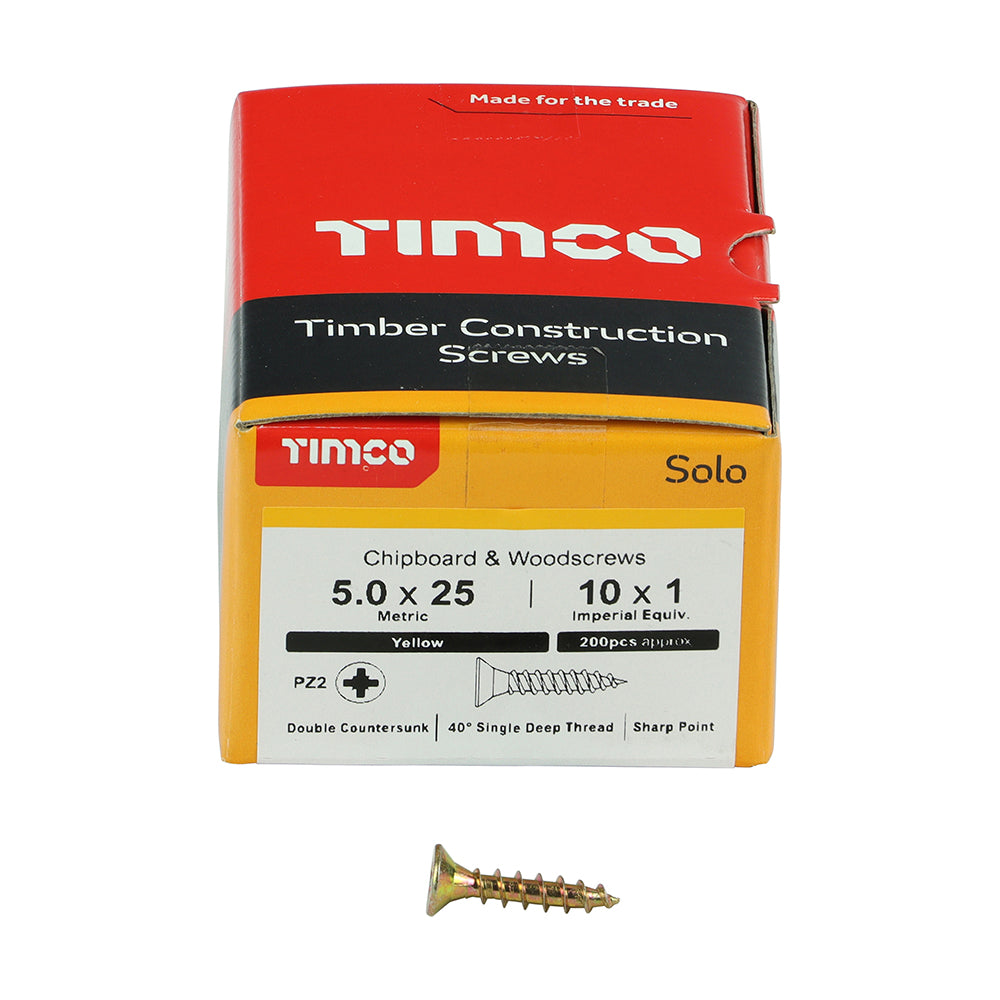

Pack Type Box
Point Type 25° Sharp
Packs per Carton 50
Head Type Double Countersunk
Pallet Qty (pcs) 240000
MOQ Increment 1
Inner Thread Ø d1 (mm) 3.1
Thread Ø (mm) 5
MOQ 1
Thread L (mm) 20
Gauge 10
Lubrication Wax
Substrates Softwood, Chipboard, MDF, Masonry (with plug)
Pack Qty 200
Finish Zinc & Yellow
Head Ø (mm) 9.74
Packs per Pallet 1200
Size (mm) 5.0 x 25
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
L (inch) 1
Pack Quantity Unit Pieces
Size (imp.) 10 x 1
Driver Bit Size PZ2
Material Carbon Steel
Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
Feature 5 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 4 25° sharp point and single lead for a fast start and improved thread acceptance
Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Feature 2 Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
Brand TIMCO
Thread Coverage Fully Threaded
Pack Weight (kg) 0.46
Pack Dimensions L x W x H (mm) 92 x 70 x 58
