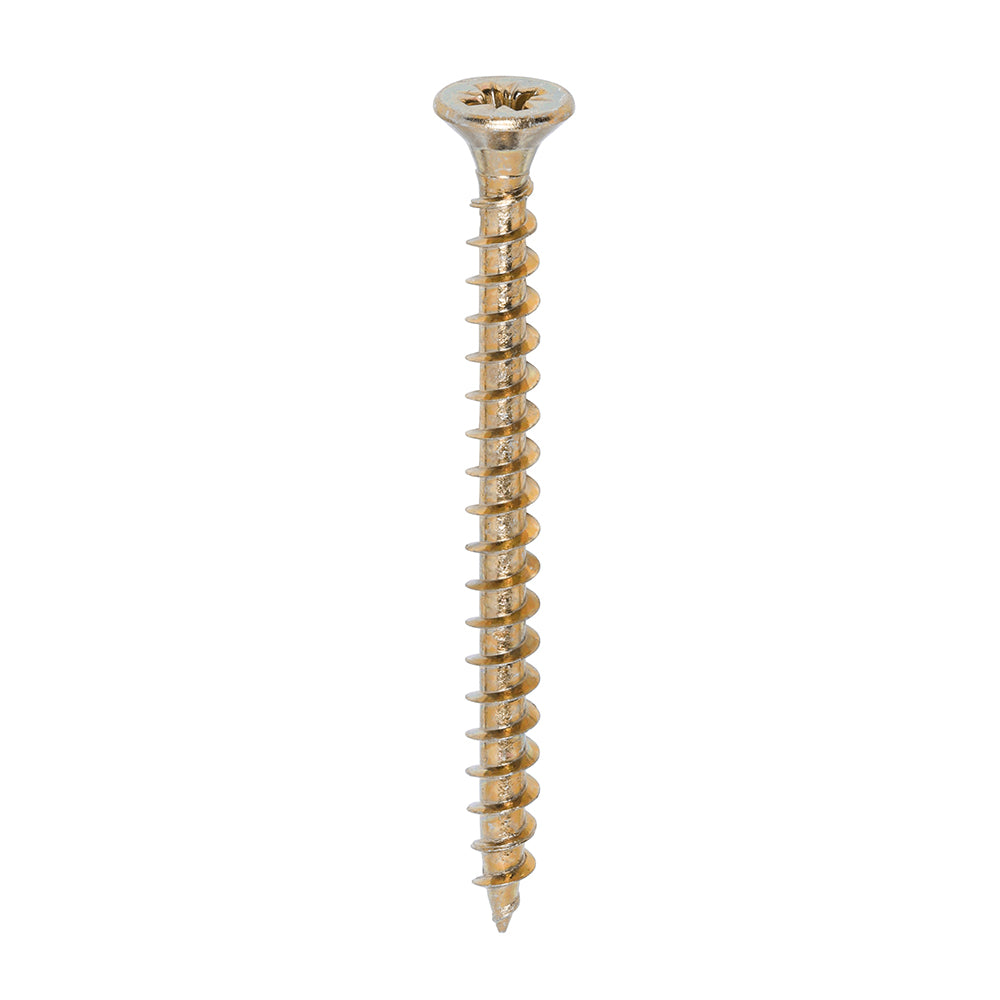

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 60mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 60mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 60mm (200 QTY)
Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 60mm (200 QTY)

Solo Chipboard & Woodscrews - PZ - Double Countersunk - Yellow 5.0 x 60mm (200 QTY)

Regular price €10,50
/
Tax included.

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.

• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length



Substrates Softwood, Chipboard, MDF, Masonry (with plug)
Lubrication Wax
Material Carbon Steel
Inner Thread Ø d1 (mm) 3.1
Recess Type Pozi
Pack Type Box
Pack Quantity Unit Pieces
Pallet Qty (pcs) 76800
Head Type Double Countersunk
Gauge 10
L (mm) 60
Thread L (mm) 55
MOQ Increment 1
MOQ 1
Packs per Pallet 384
Pack Qty 200
Thread Ø (mm) 5
Packs per Carton 16
Thread Type 40° Single Deep
L (inch) 2 12
Driver Bit Size PZ2
Head Ø (mm) 9.74
Size (mm) 5.0 x 60
Size (imp.) 10 x 2 12
Finish Zinc & Yellow
Point Type 25° Sharp
Corrosion Rating (1-5) 1 - Clean, dry & low humidity environments
Feature 5 All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Feature 4 25° sharp point and single lead for a fast start and improved thread acceptance
Feature 1 Double countersunk reduces the likelihood of head shear and assists completion of countersinking
Feature 3 40° deep single thread to provide a secure fixing with high pull-out resistance
Feature 2 Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
Brand TIMCO
Thread Coverage Fully Threaded
Pack Weight (kg) 1.02
Pack Dimensions L x W x H (mm) 140 x 92 x 94
