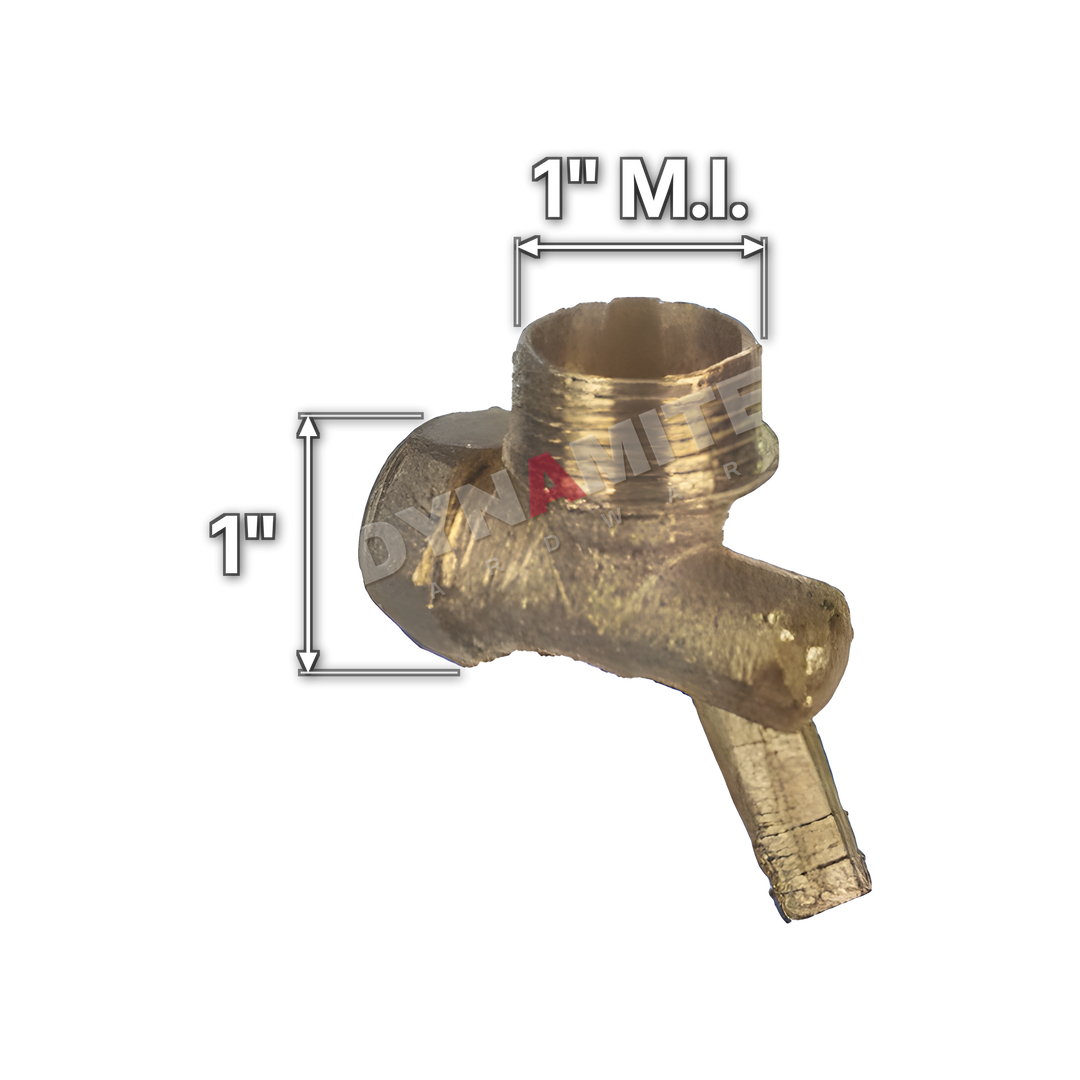

1" brass compression male iron elbow with drain off (Excel 87111), white arrows mark each connection: 1" male iron (BSP), 1" compression

1" Brass Compression Male Iron Elbow with Drain Off (M.I. x C)

Price
Regular price €11,49
Regular price Sale price €11,49
Save €-11,49
/
Tax included.

A combined male iron (BSP) x compression brass elbow and drain off.

Typical uses

Suitable for hot and cold water services, central heating and general plumbing on copper tube. LDPE and PEX pipe can also be used with the correct inserts. Not for below-ground use.

Specifications

Size 1"
Connections 1" male iron (BSP) x 1" compression
Material Brass - CW617N
Standard Compression ends to IS EN 1254-2; BSP threads to ISO 228
Approval WRAS approved
Max. temperature / pressure 110°C; 16 bar @ 30°C, 6 bar @ 110°C
Sold Individually - price is per piece, incl. VAT
Manufacturer pack 5
Manufacturer Excel Industries
Excel code 87111
Barcode (EAN) 5391269763504

Irish imperial sizes - not interchangeable with metric fittings. Check your pipe size before ordering.

Specifications from Excel Industries (catalogue Issue 26.7 and excel-industries.com). Images are catalogue photos with sizes added.
