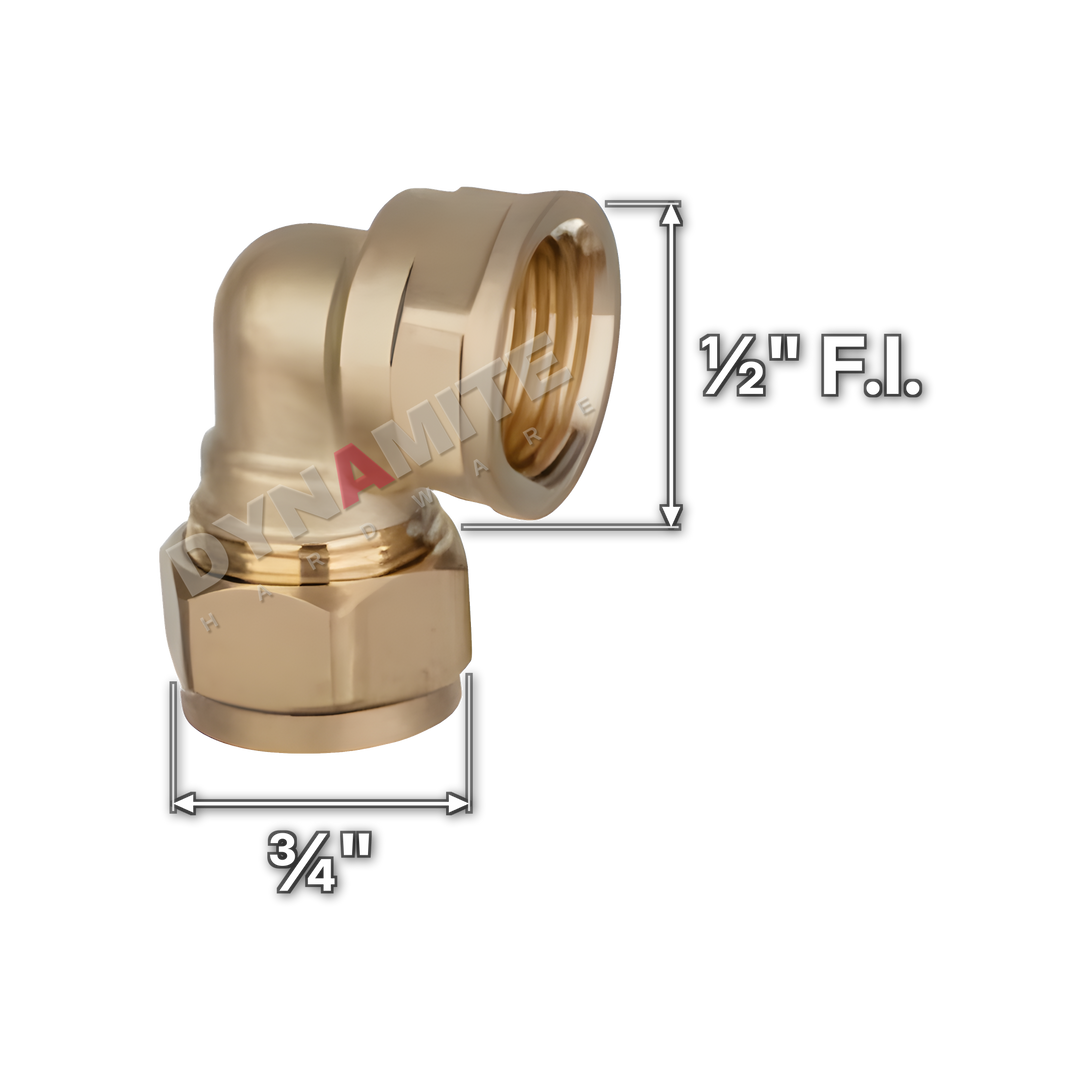

½" x ¾" brass compression female iron elbow (Excel 3171234), white arrows mark each connection: ½" female iron (BSP), ¾" compression

½" x ¾" Brass Compression Female Iron Elbow (F.I. x C)

Price
Regular price €7,95
Regular price Sale price €7,95
Save €-7,95
/
Tax included.

A 90° brass compression elbow with a female iron (BSP) thread on one end and a compression joint on the other.

Typical uses

Suitable for hot and cold water services, central heating and general plumbing on copper tube. LDPE and PEX pipe can also be used with the correct inserts. Not for below-ground use.

Specifications

Size ½" x ¾"
Connections ½" female iron (BSP) x ¾" compression
Material Brass - CW617N
Standard Compression ends to IS EN 1254-2; BSP threads to ISO 228
Approval WRAS approved
Max. temperature / pressure 110°C; 16 bar @ 30°C, 6 bar @ 110°C
Sold Individually - price is per piece, incl. VAT
Manufacturer pack 10
Manufacturer Excel Industries
Excel code 3171234
Barcode (EAN) 5391269602469

Irish imperial sizes - not interchangeable with metric fittings. Check your pipe size before ordering.

Specifications from Excel Industries (catalogue Issue 26.7 and excel-industries.com). Images are catalogue photos with sizes added.
