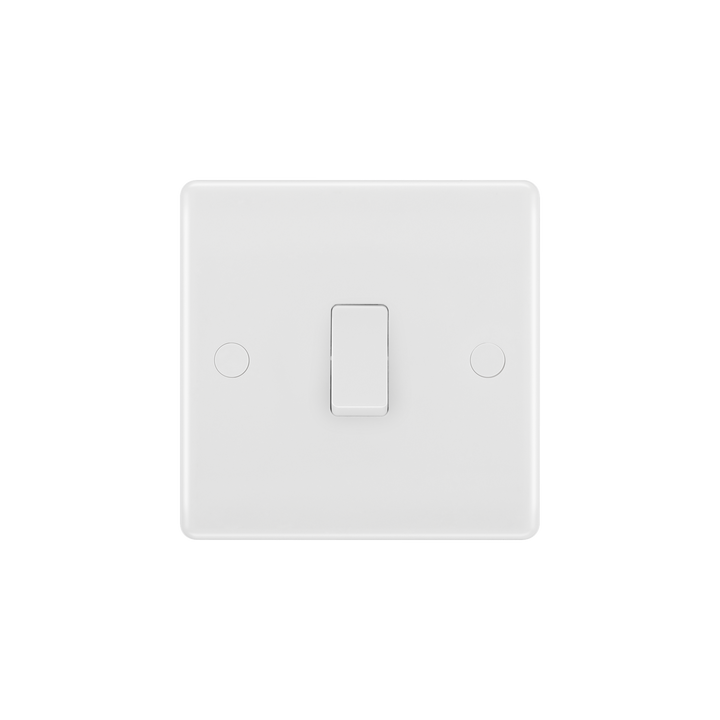

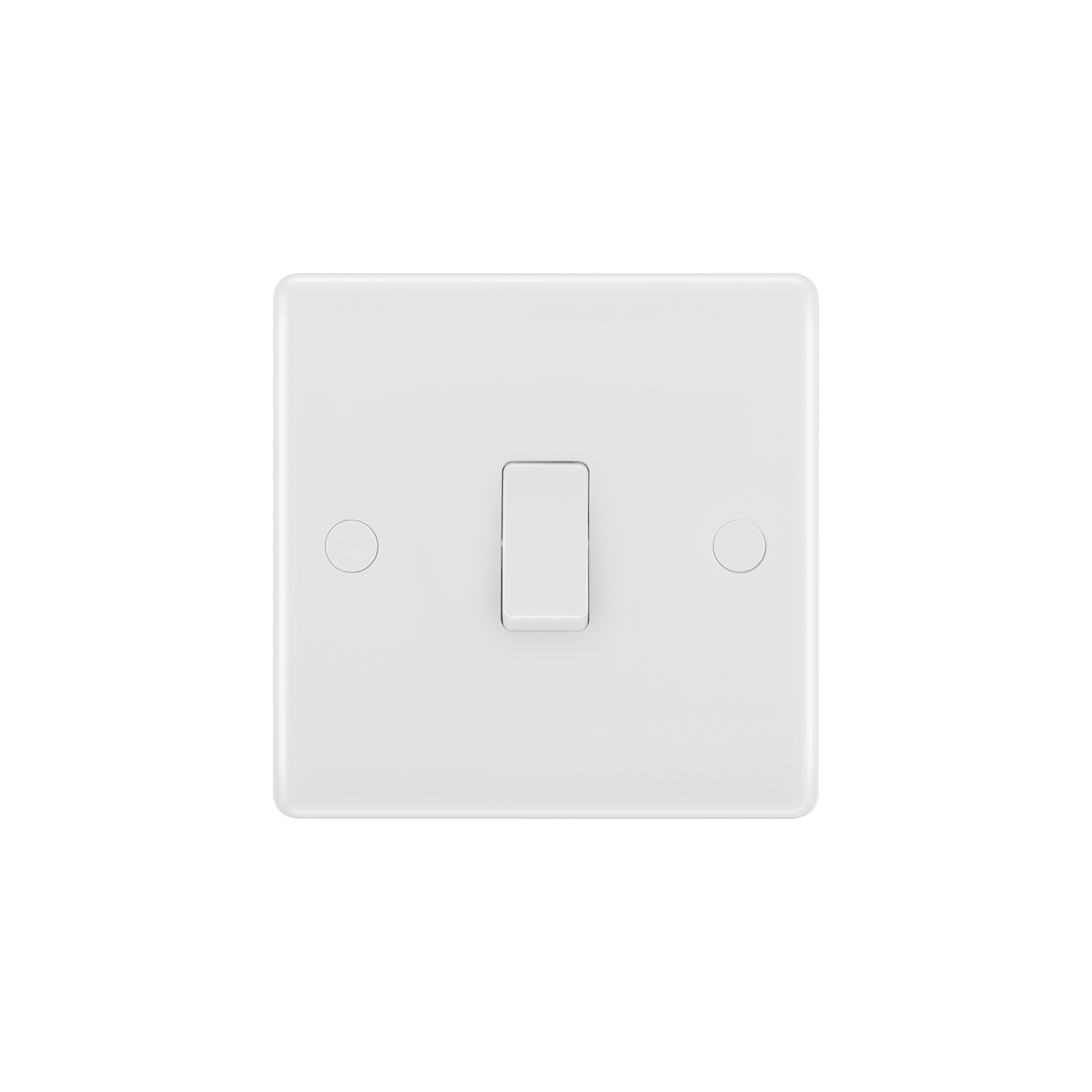

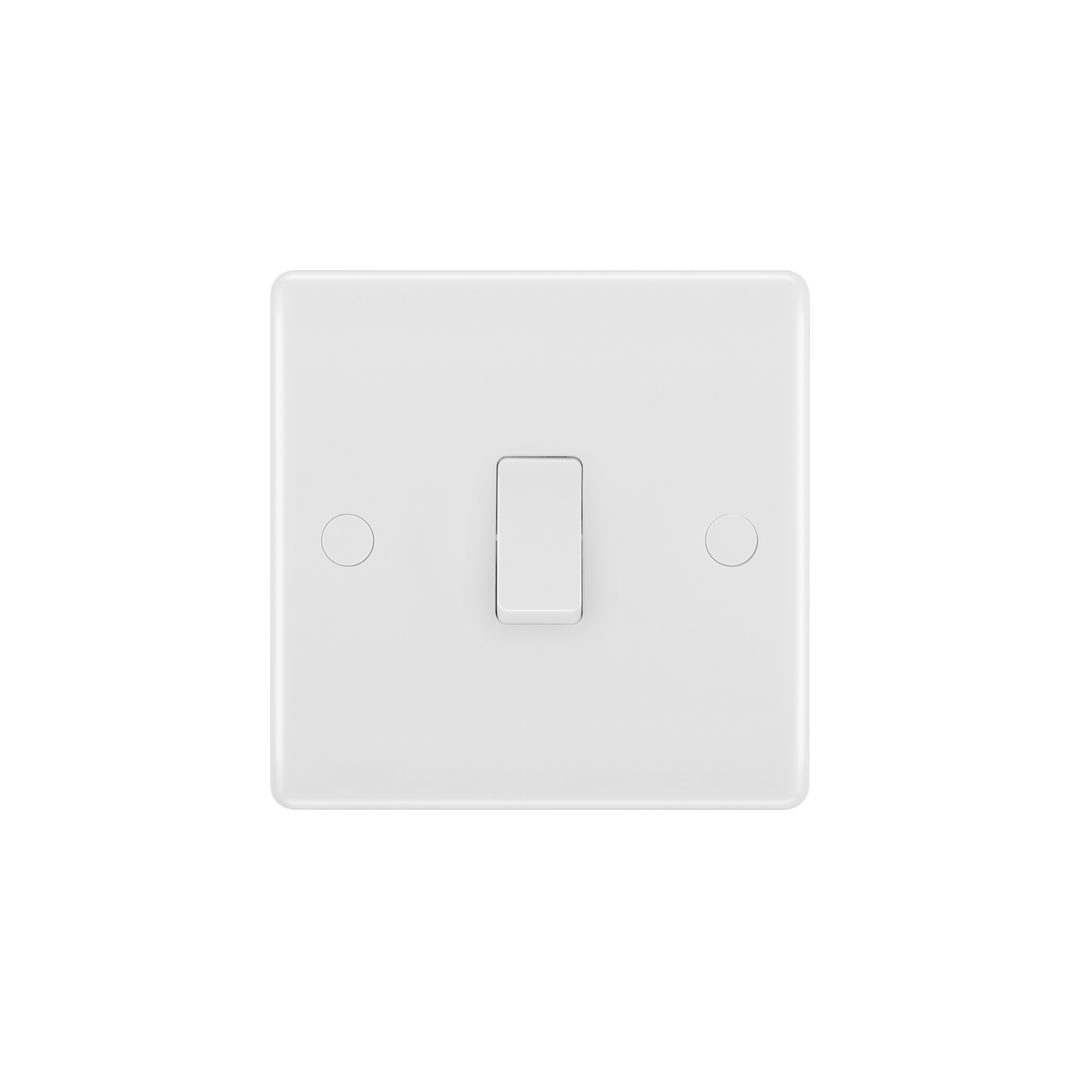

20A Single Switch with Flex Outlet – Rounded Edge White – BG 832-01 front view

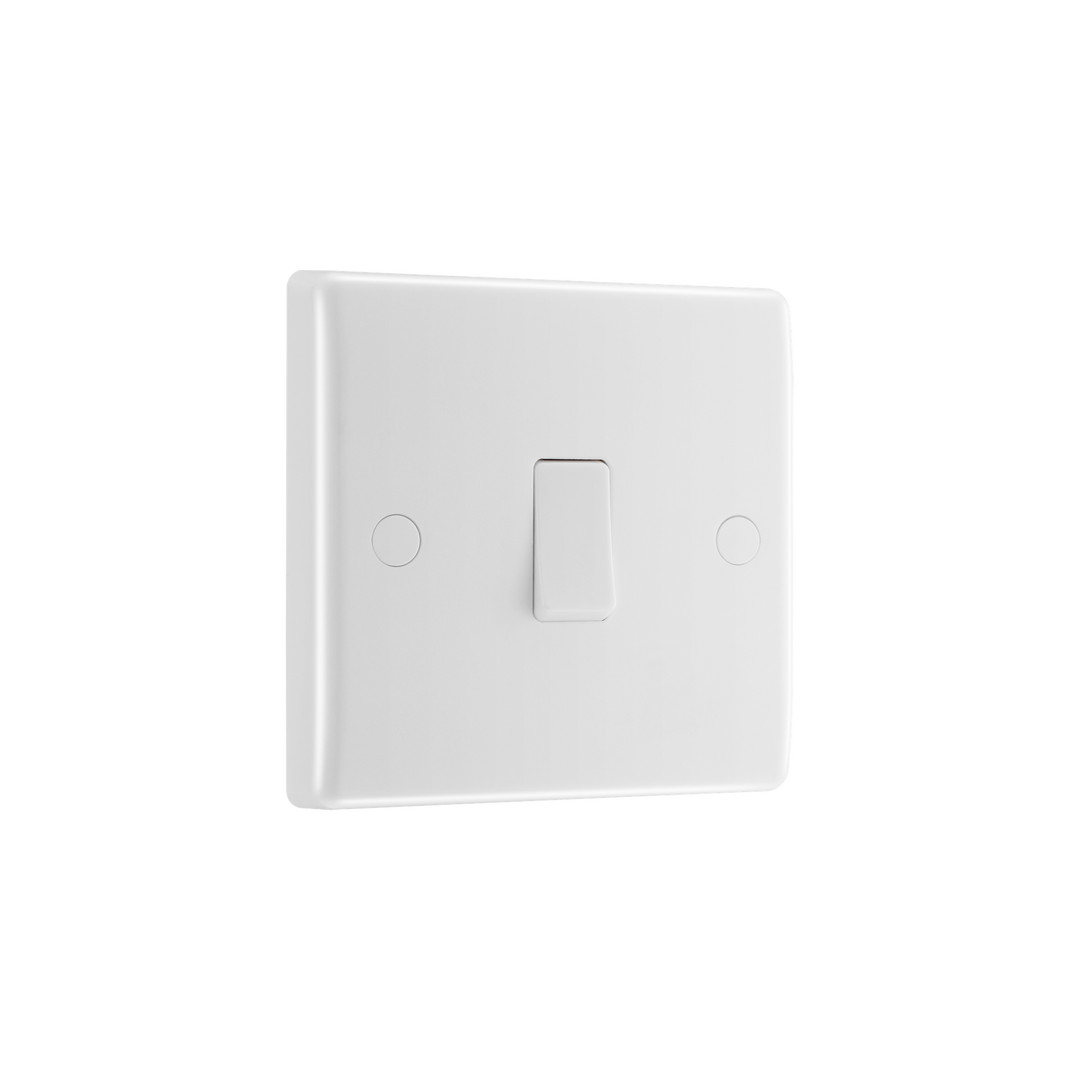

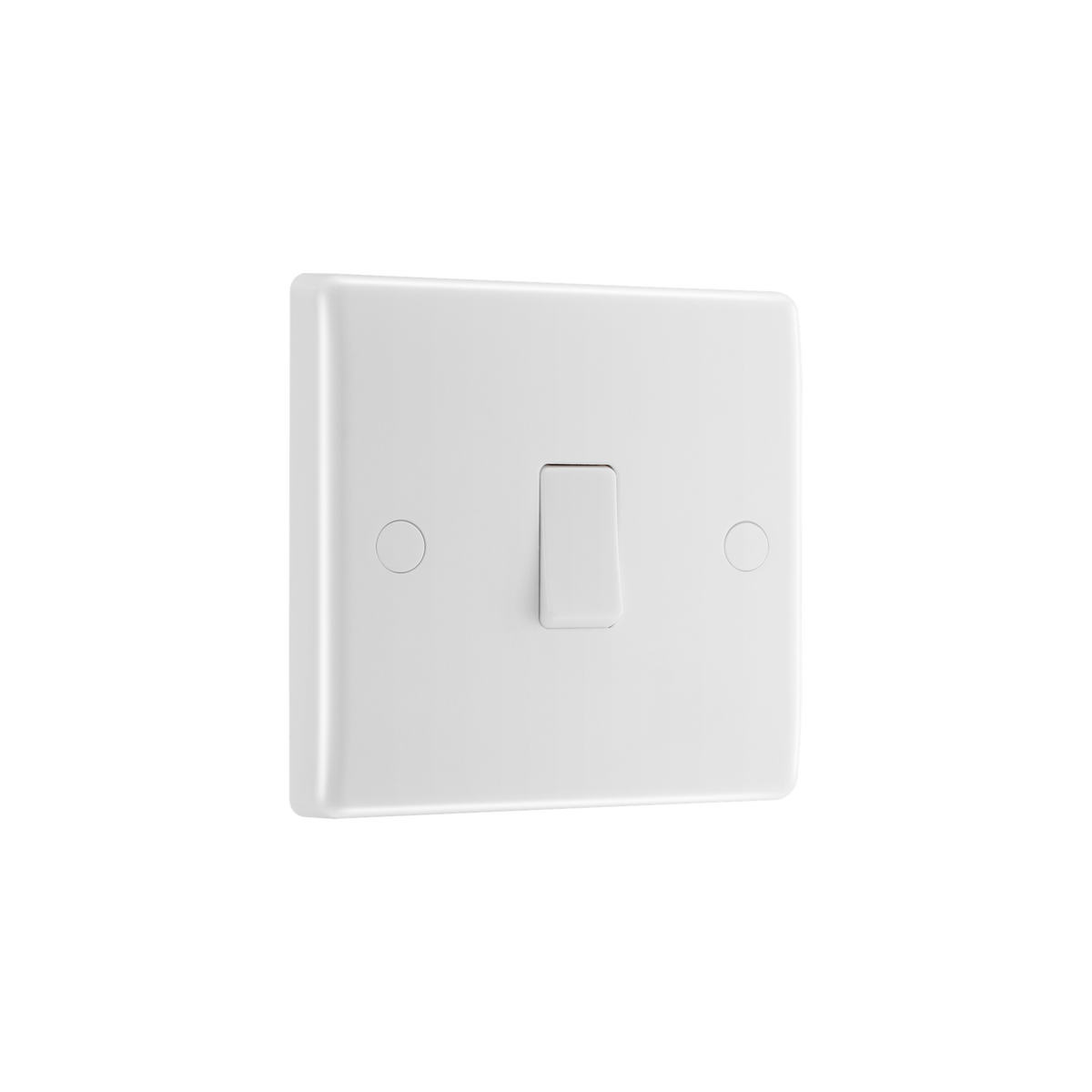

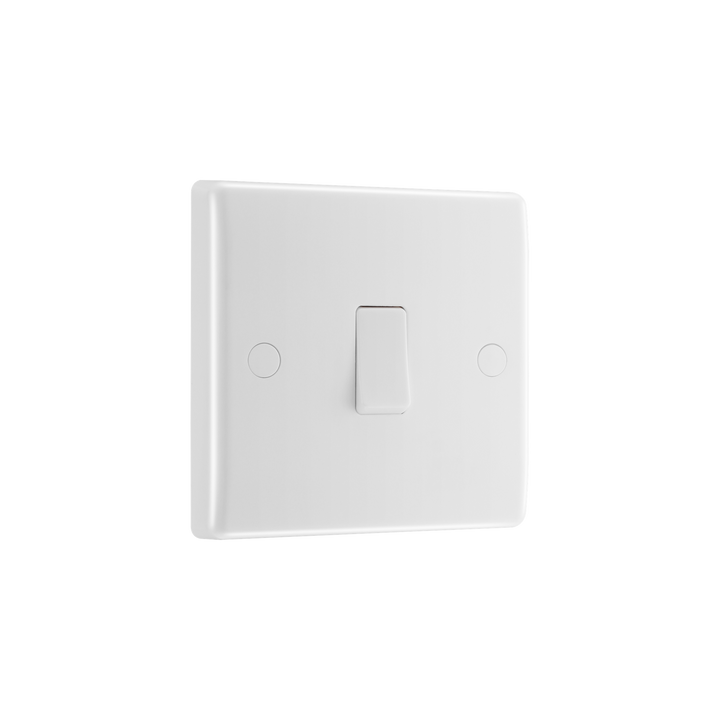

20A Single Switch with Flex Outlet – Rounded Edge White – BG 832-01 angled view
20A Single Switch with Flex Outlet – Rounded Edge White – BG 832-01 front view
20A Single Switch with Flex Outlet – Rounded Edge White – BG 832-01 angled view

20A Single Switch with Flex Outlet – Rounded Edge White

Price
Regular price €5,99
Regular price Sale price €5,99
Save €-5,99
/
Tax included.

The BG 832-01 20A Single Switch with Flex Outlet is part of the BG Nexus 800 Series White Moulded (rounded edge) range, finished in white moulded plastic with softly rounded edges and a slim profile. Manufactured by BG Electrical (Luceco).

Key features

  • 20A Rated
  • Rounded edge cable entry at lower edge, with removable blanking piece and reversible cord-grip
  • Screw covers for sleek appearance
  • Minimum mounting box depth 25mm
  • Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Certified to BS EN 60669-1
  • ASTA Licence number 1074

Specifications

Brand BG Electrical (Luceco)
Range BG Nexus 800 Series White Moulded (rounded edge)
Part number 832-01
Colour White
Edge style Rounded edge
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (# x mm²) 2 x 2.5, 1 x 4, 1 x 6
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Number of Switches 1
Screw Caps Yes
Switch Style Type Rocker
Switch Type (Ways & Poles) Double Pole
Switch Location Position Wall
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 30

What's in the box

  • 1 x 20A Single Switch with Flex Outlet, with fixing screws
