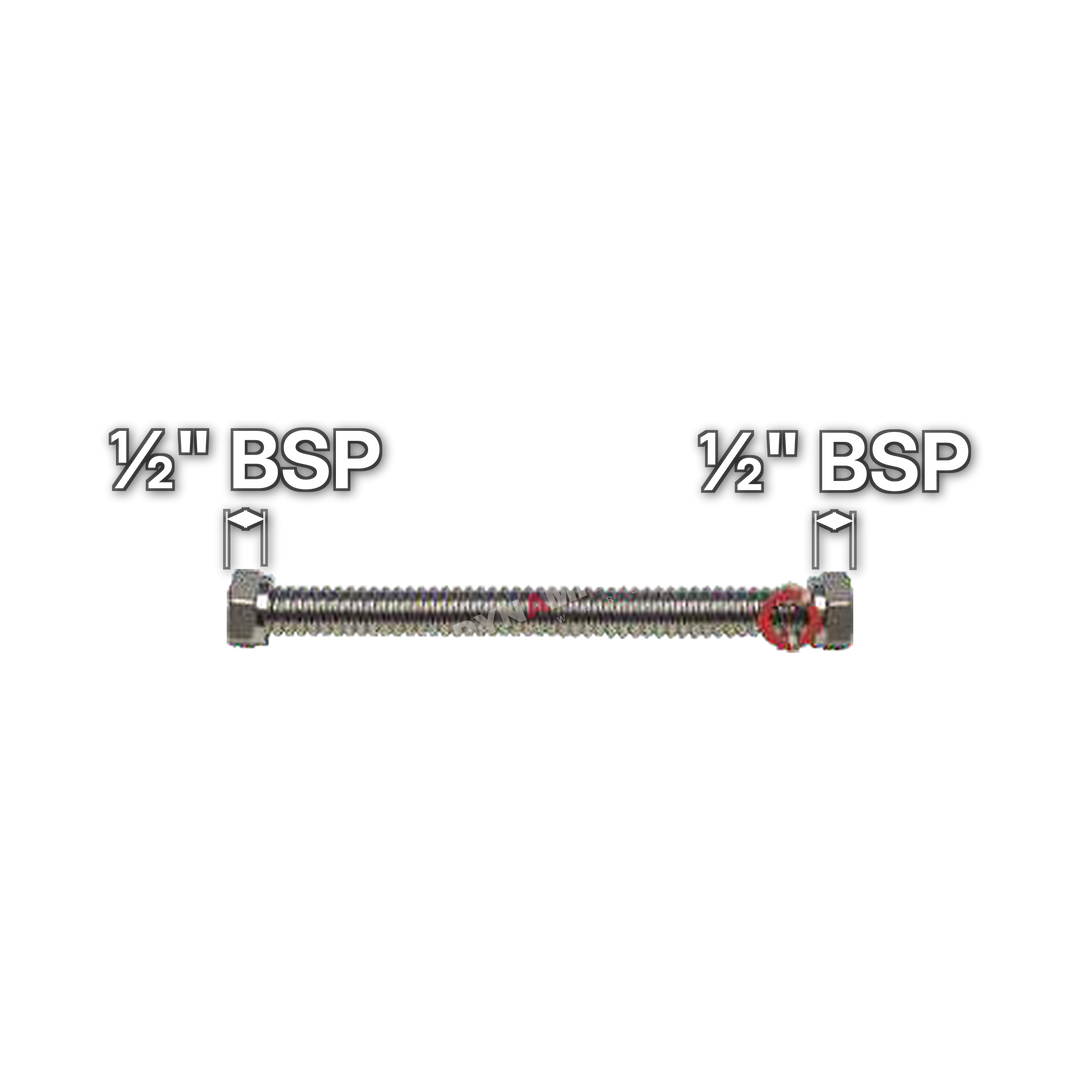

½" BSP Corrugated Stainless Steel Flexible Connector, sizes marked with white arrows: ½" BSP and ½" BSP

½" BSP Corrugated Stainless Steel Flexible Connector

Length
Price
Regular price €11,49
Regular price Sale price €11,49
Save €-11,49
/
Tax included.

A ready-made corrugated stainless steel flexible connector with a ½" BSP swivel nut on each end. The 304 stainless tube bends by hand from 0 to 180° with no tools and no loss of bore, so it is ideal for tap connections, awkward radiator connections, cylinder connections and tight spaces.

Made by Excel Industries.

Typical uses

Tap, radiator and hot water cylinder connections, limited-access pipework, and solar thermal (with high-temperature washers).

Specifications

Size ½"
Lengths available 250mm, 500mm, 1000mm
Material 304 stainless steel corrugated tube, stainless steel swivel nuts
Max. working pressure 6 bar
Max. temperature 85°C
Bend radius Hand bendable, 0 to 180°, no bore reduction
Manufacturer Excel Industries
Excel codes FT12250 (250mm), FT12500 (500mm), FT121000 (1000mm)

When used on solar or glycol systems, use suitable high-temperature washers.

Sizes: ½" BSP = 15mm pipe, ¾" BSP = 22mm pipe, 1" BSP = 28mm pipe. Check your pipe size and the thread on your tap or fitting before ordering.

Specifications from Excel Industries (catalogue Issue 26.7, flexible plumbing connectors, page 58). Images are catalogue photos with sizes added.
