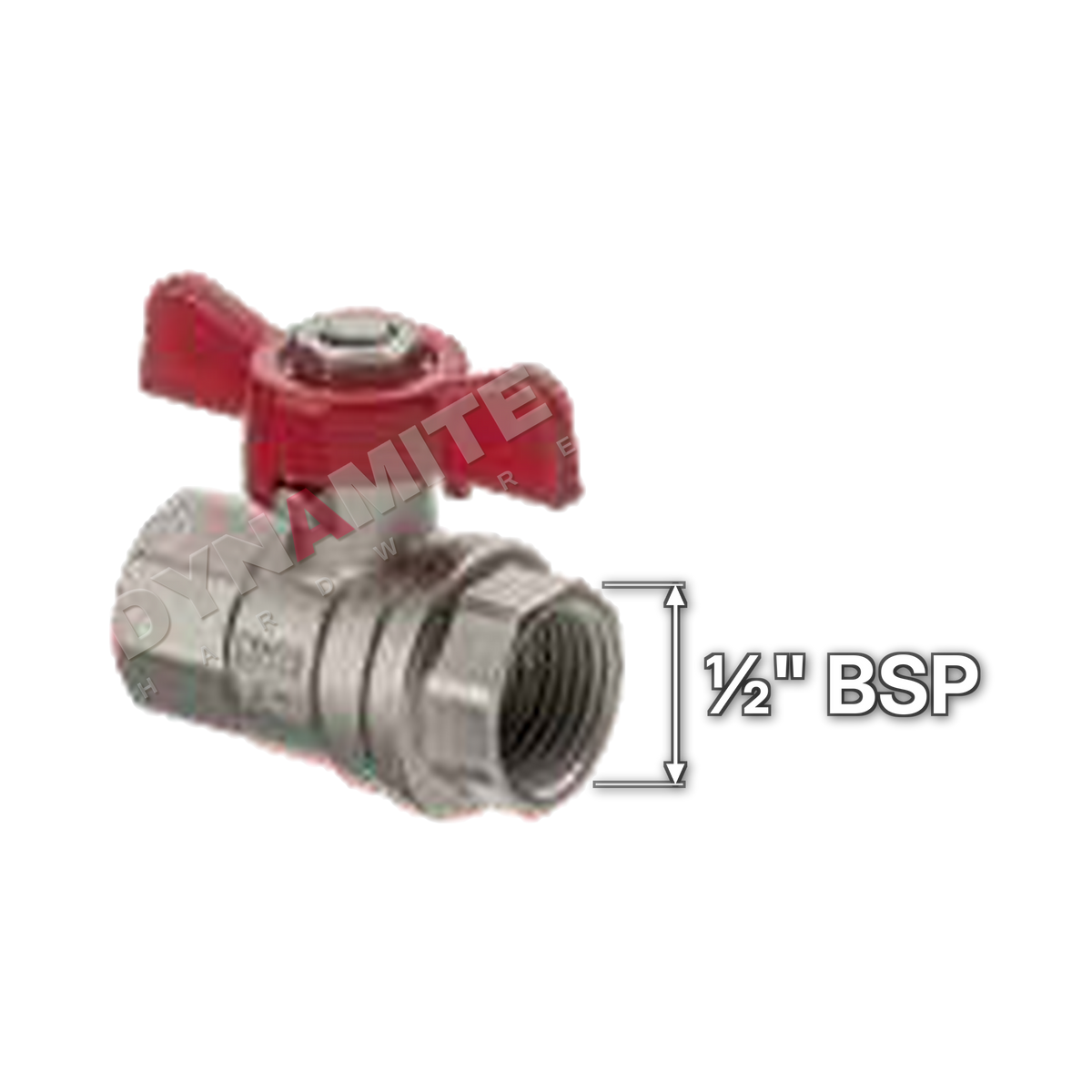

Butterfly Handle Ball Valve - Female BSP, ½", size marked with a white arrow

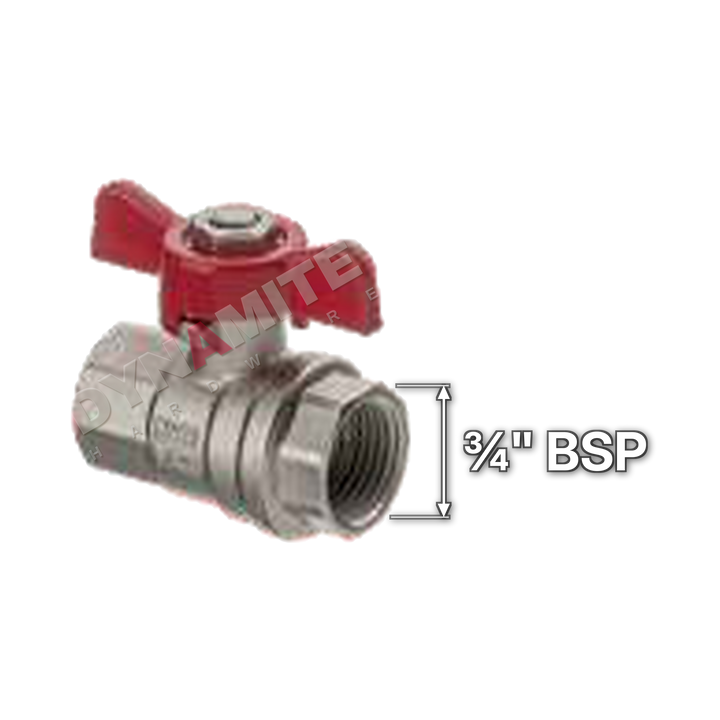

Butterfly Handle Ball Valve - Female BSP, ¾", size marked with a white arrow

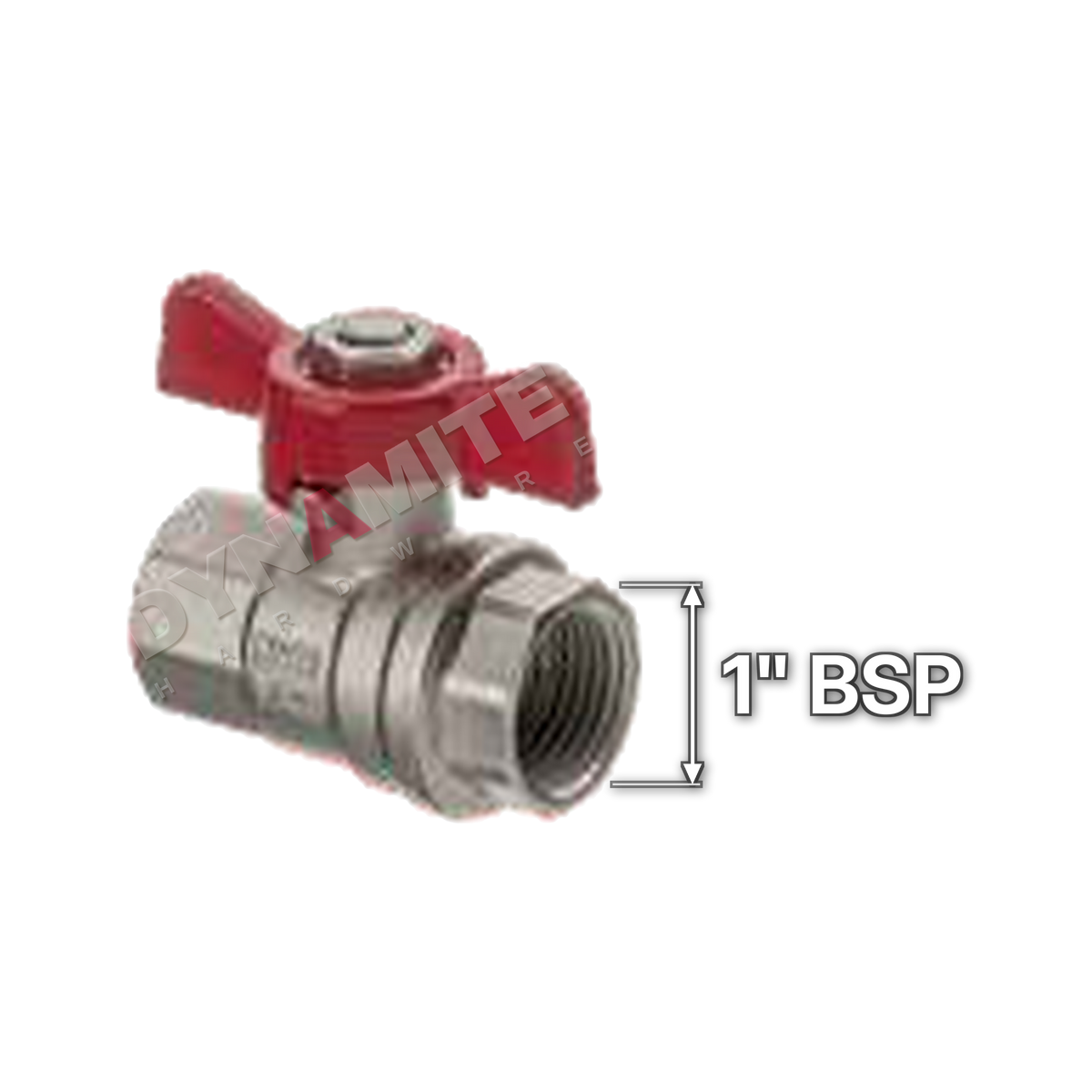

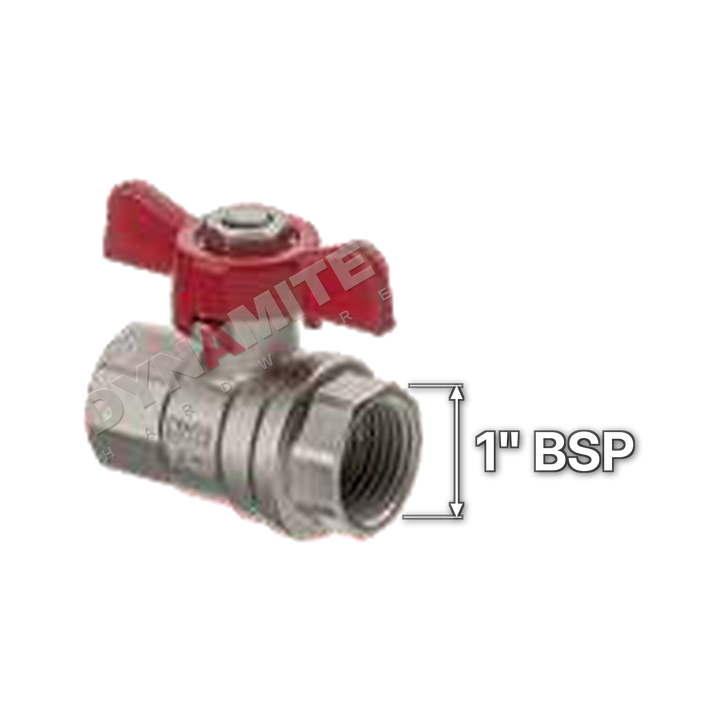

Butterfly Handle Ball Valve - Female BSP, 1", size marked with a white arrow
Butterfly Handle Ball Valve - Female BSP, ½", size marked with a white arrow
Butterfly Handle Ball Valve - Female BSP, ¾", size marked with a white arrow
Butterfly Handle Ball Valve - Female BSP, 1", size marked with a white arrow

Butterfly Handle Ball Valve - Female BSP

Size
Price
Regular price €5,49
Regular price Sale price €5,49
Save €-5,49
/
Tax included.

A compact nickel-plated brass ball valve with a red butterfly (tee) handle and a female BSP thread on both ends. The short butterfly handle needs less room than a lever, so it suits tight spots under sinks, at manifolds and on appliances. A quarter turn turns the flow fully on or off.

Made by Excel Industries.

Specifications

Type Ball valve (quarter turn)
Sizes available ½", ¾", 1"
Ends Female BSP x female BSP
Bore Standard
Operation Quarter-turn butterfly handle
Body Nickel-plated brass
Manufacturer Excel Industries
Excel codes 12FFBVB (½"), 34FFBVB (¾"), 1FFBVB (1")

BSP thread sizes: check the thread on your pipe, tank or fitting before ordering. ½" BSP is the usual thread for 15mm pipework, ¾" for 22mm and 1" for 28mm.

Not for gas.

Specifications from Excel Industries (catalogue Issue 26.7, isolation valves, page 37). Images are catalogue photos with sizes added.
