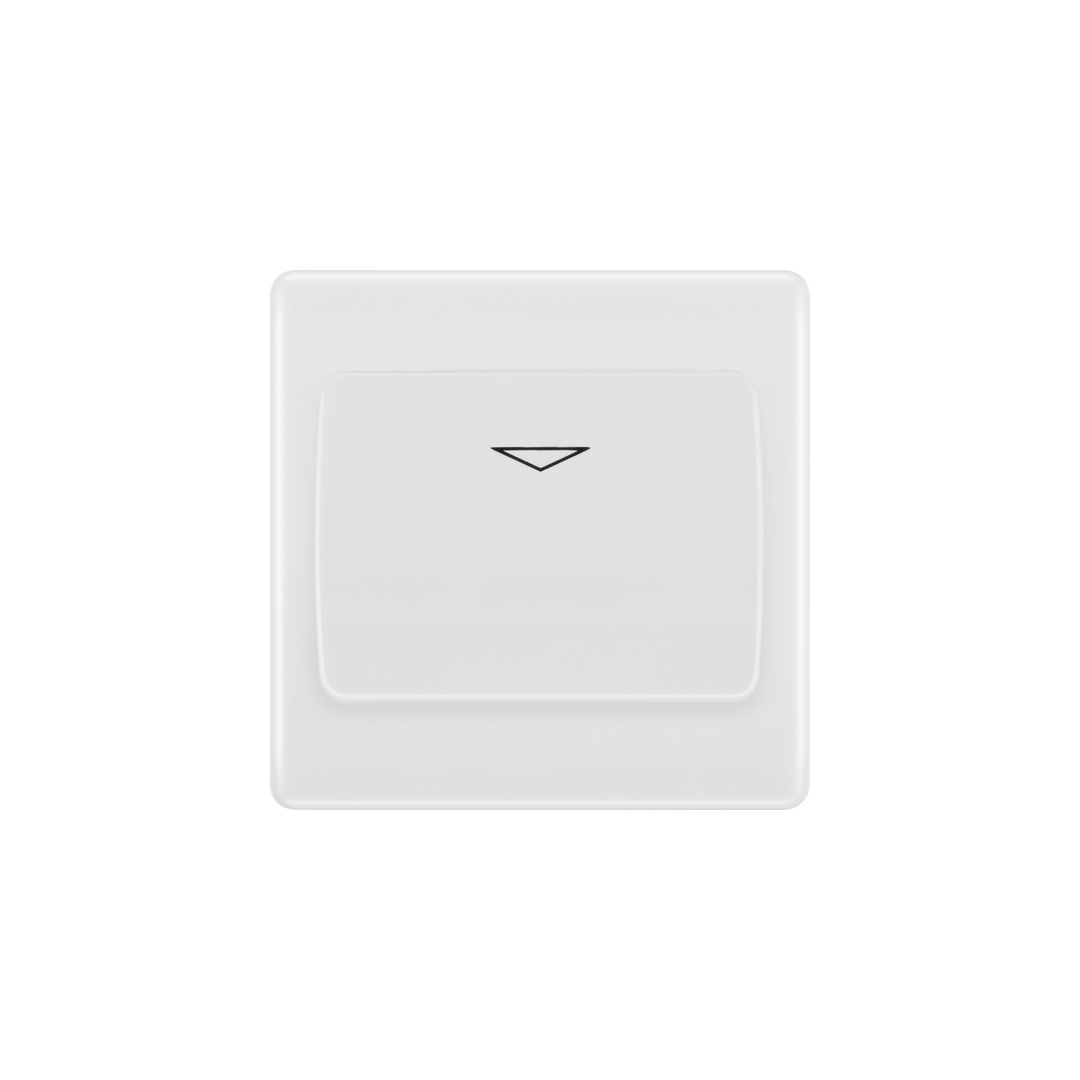

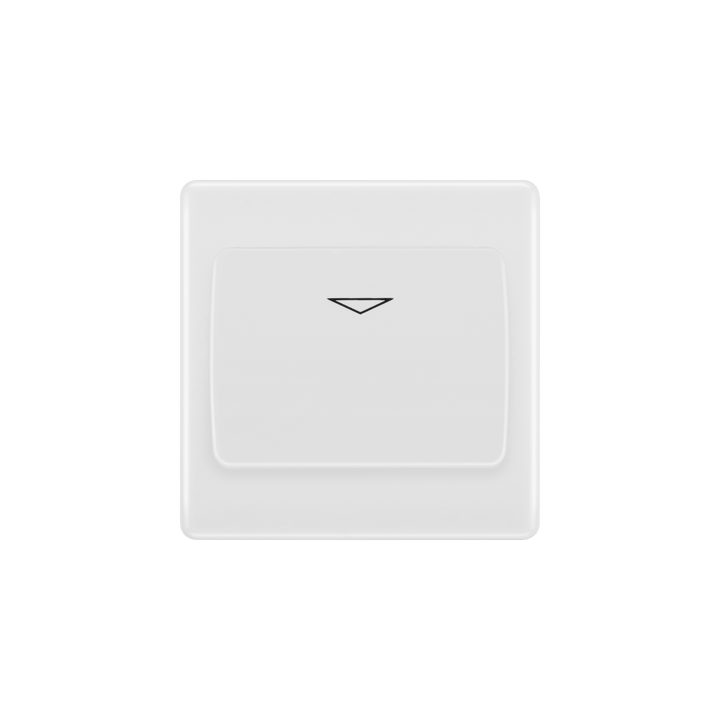

16A Key Card Switch – Rounded Edge White – BG 8KYCSW-01 front view

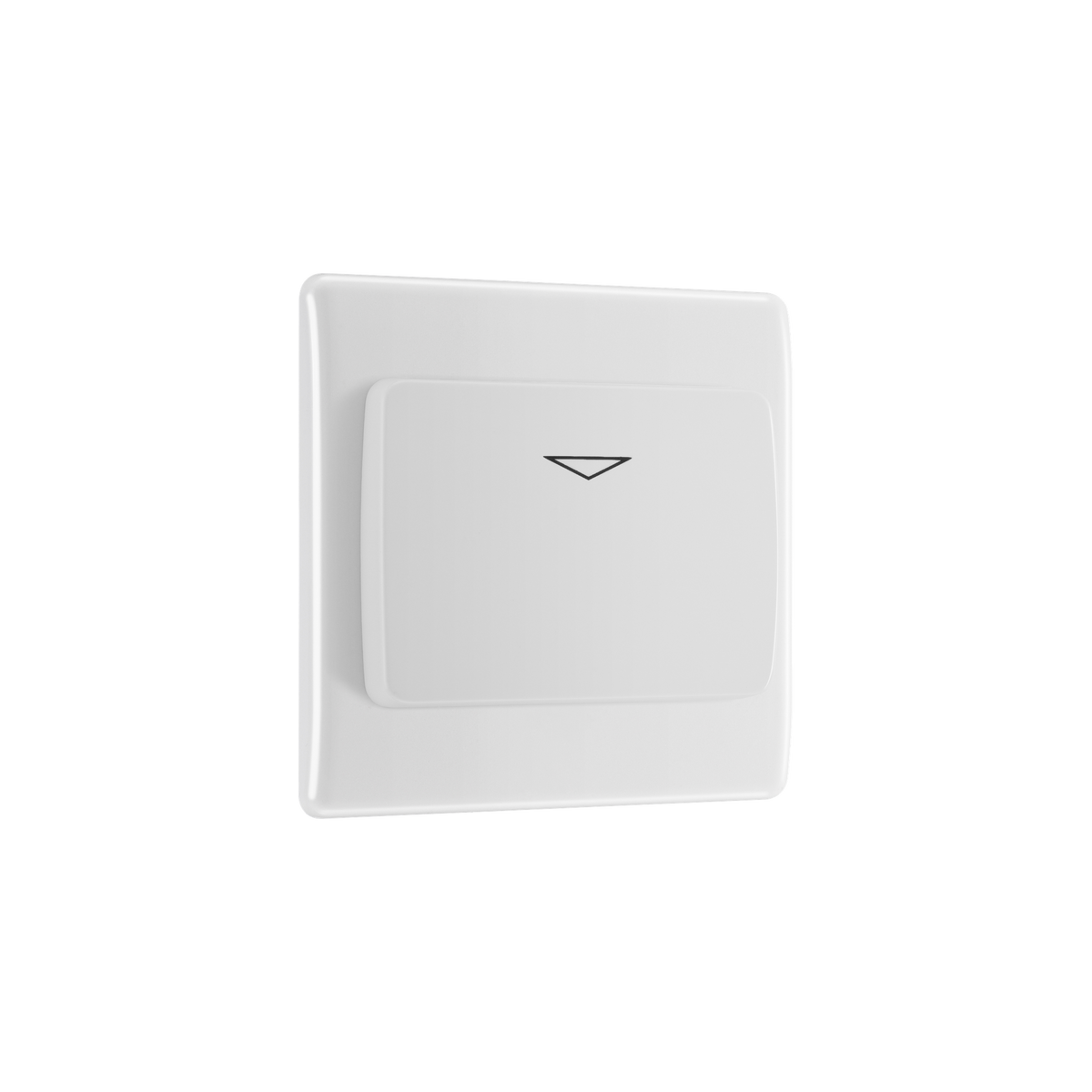

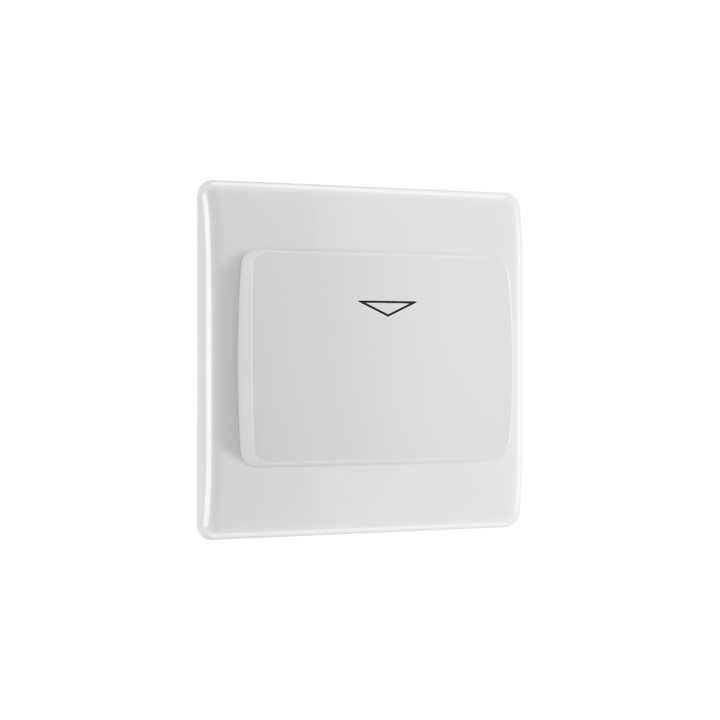

16A Key Card Switch – Rounded Edge White – BG 8KYCSW-01 angled view

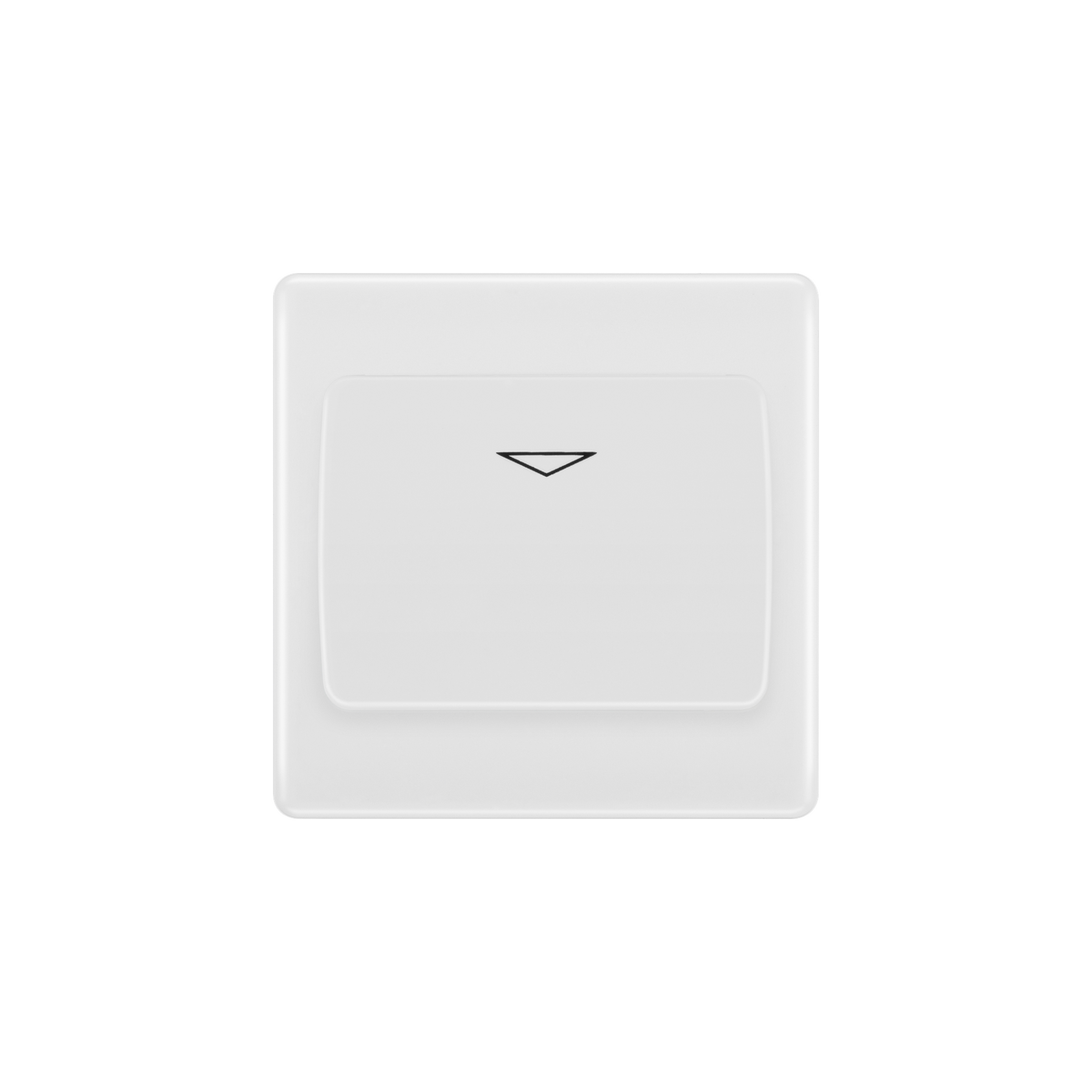

16A Key Card Switch – Rounded Edge White – BG 8KYCSW-01 front view

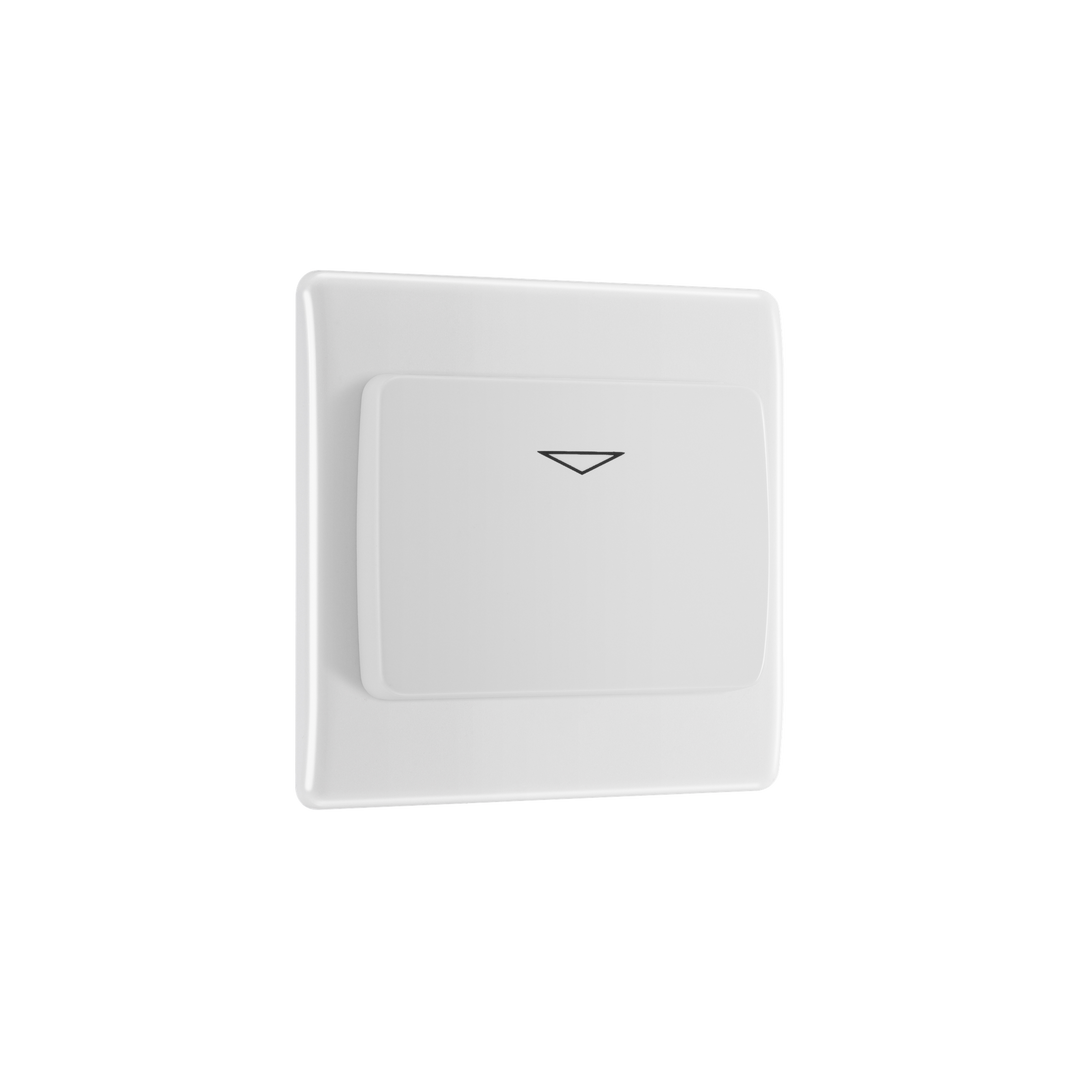

16A Key Card Switch – Rounded Edge White – BG 8KYCSW-01 angled view

16A Key Card Switch – Rounded Edge White

Price
Regular price €30,49
Regular price Sale price €30,49
Save €-30,49
/
Tax included.

The BG 8KYCSW-01 16A Key Card Switch is part of the BG Nexus 800 Series White Moulded (rounded edge) range, finished in white moulded plastic with softly rounded edges and a slim profile. Manufactured by BG Electrical (Luceco).

Key features

  • 16A Rated
  • Power to the room will active when a key card inserted so the room is only powered when occupied
  • 30 second power-off delay prevents users being plunged in to darkness when leaving
  • Locator LED ideal for night operation
  • Captive screws prevent screw loss
  • Mounting box depth 47mm
  • Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Supplied as a kit of Euro module components

Specifications

Brand BG Electrical (Luceco)
Range BG Nexus 800 Series White Moulded (rounded edge)
Part number 8KYCSW-01
Colour White
Edge style Rounded edge
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 47
Terminal Capacity (# x mm²) 2 x 2.5, 4 x 1.0, 1 x 4
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Terminal Arrangement Inline
Number of Switches 1
Screw Caps Yes
Switch Style Type Key
Switch Location Position Wall
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 30

What's in the box

  • 1 x 16A Key Card Switch, with fixing screws
