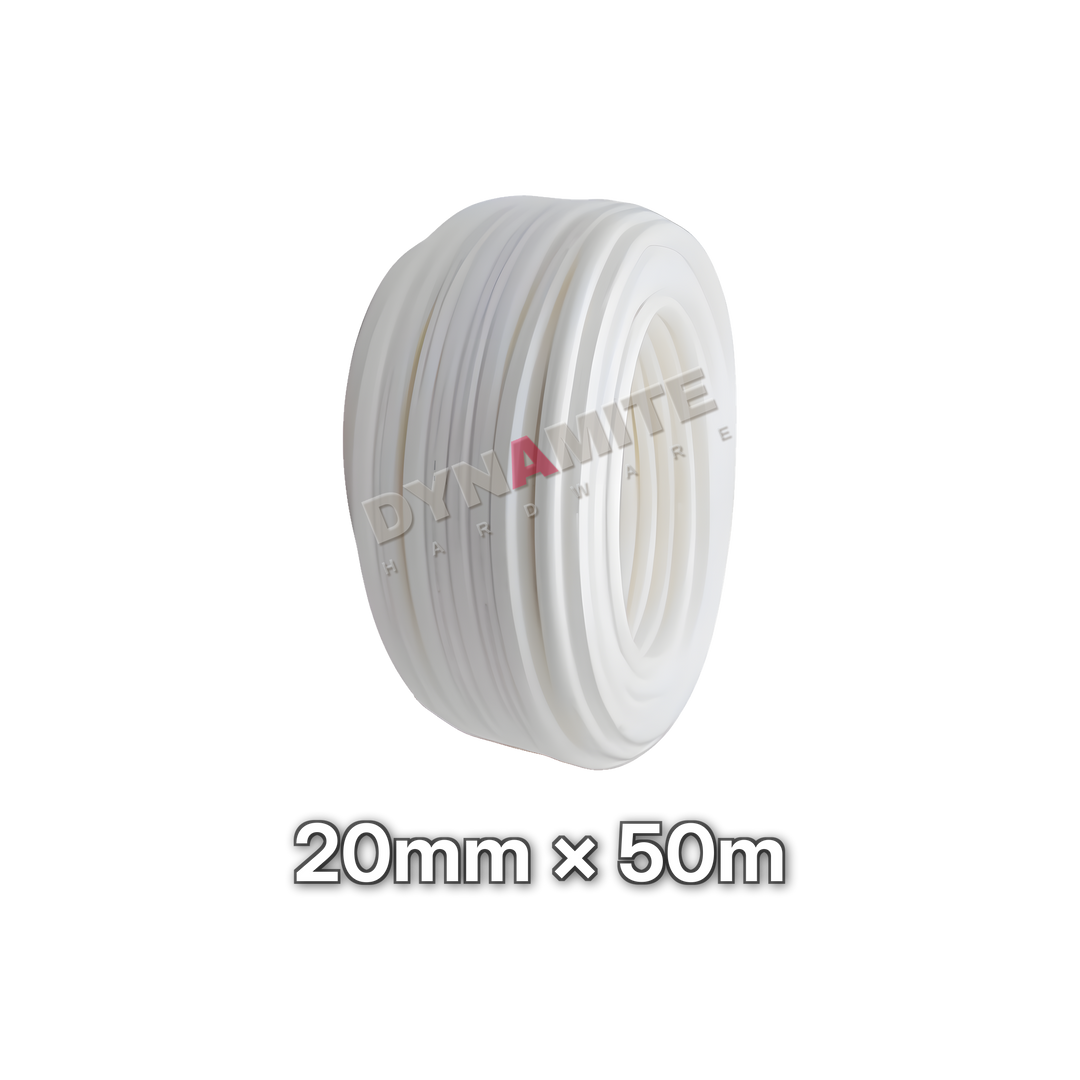

20mm WRAS Insulated Multilayer Pipe - 50m Coil

A 50m coil of 20mm multilayer PEX-AL-PEX pipe with 10mm insulation. This line is WRAS approved.

Multilayer PEX-AL-PEX composite pipe to EN ISO 21003: a butt-welded aluminium core bonded between an inner and outer layer of cross-linked PEX. It bends by hand and holds its shape, is 100% oxygen tight, expands far less than plastic pipe and is quiet in use. Rated to 10 bar at 70°C (95°C max).

Suits our 20mm multilayer crimp fittings.

Typical uses

Hot and cold water, central heating and underfloor heating pipework. Cut square with a multilayer pipe cutter, calibrate and deburr the end, then crimp with the matching fitting and jaw.

Specifications

Specifications from Excel Industries (catalogue Issue 26.7, page 44). Images are catalogue photos with sizes added.
