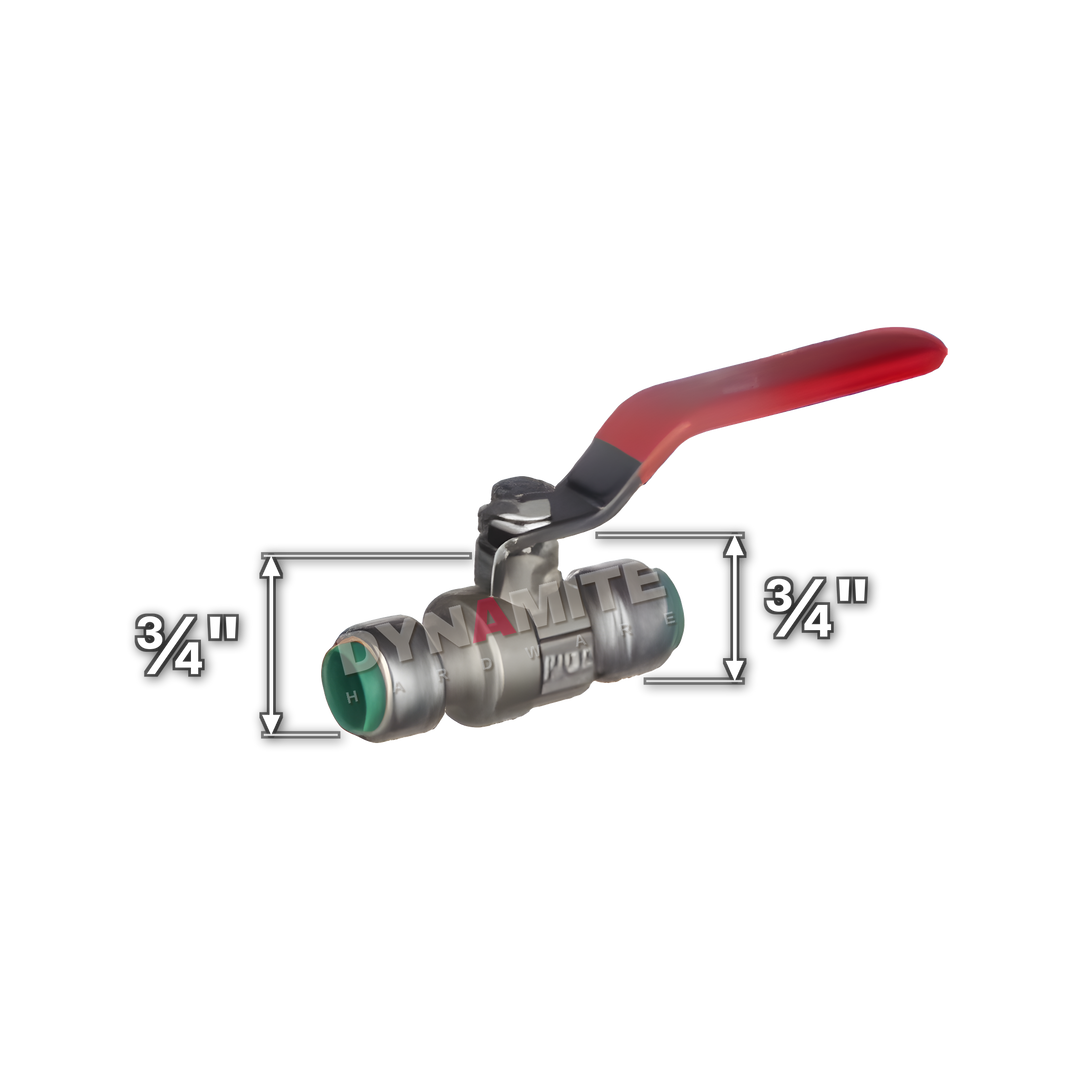

¾" Pushtite Push-Fit Lever Ball Valve (code PT34BV), size marked with white arrows: ¾" push-fit x ¾" push-fit

¾" Pushtite Push-Fit Lever Ball Valve

Price
Regular price €12,95
Regular price Sale price €12,95
Save €-12,95
/
Tax included.

A ¾" x ¾" Pushtite push-fit lever action ball valve for full-flow shut-off on ¾" pipe.

A quality, cost-effective alternative to Tectite push-fit valves, made by Excel Industries.

Typical uses

Hot and cold water services, vented and unvented heating systems and general domestic plumbing on Irish-size copper or PEX/PB pipe. Push the pipe in to make the joint: no flame, solder or spanners. Use a plastic pipe insert in PEX/PB pipe. Not for gas, and above-ground use only.

Specifications

Size ¾"
Connections ¾" push-fit x ¾" push-fit
Range Pushtite push-fit (Excel Industries)
Body Brass
O-ring EPDM
Grab ring Stainless steel
Standard EN 1254-6
Approval WRAS approved
Pipe Irish-size ½"/¾" copper, or PEX/PB plastic pipe with the correct pipe insert
Copper pipe - pressure / temperature 16 bar up to 30°C; 10 bar at 65°C; 6 bar at 95°C
PEX/PB pipe - pressure / temperature 12 bar up to 20°C; 6 bar at 65°C; 3 bar at 92°C
Demountable Yes - release with a Pushtite disconnecting clip or pliers
Not suitable for Gas, or below-ground use (above ground only)
Sold Individually - price is per piece, incl. VAT
Manufacturer pack 1
Manufacturer Excel Industries
Excel code PT34BV
Barcode (EAN) 5391269773589

Irish sizes (½" and ¾") - not interchangeable with metric 15mm/22mm push-fit fittings. Check your pipe size before ordering.

Specifications from Excel Industries (catalogue Issue 26.7 and excel-industries.com, PushTite Fittings). Images are catalogue photos with sizes added.
