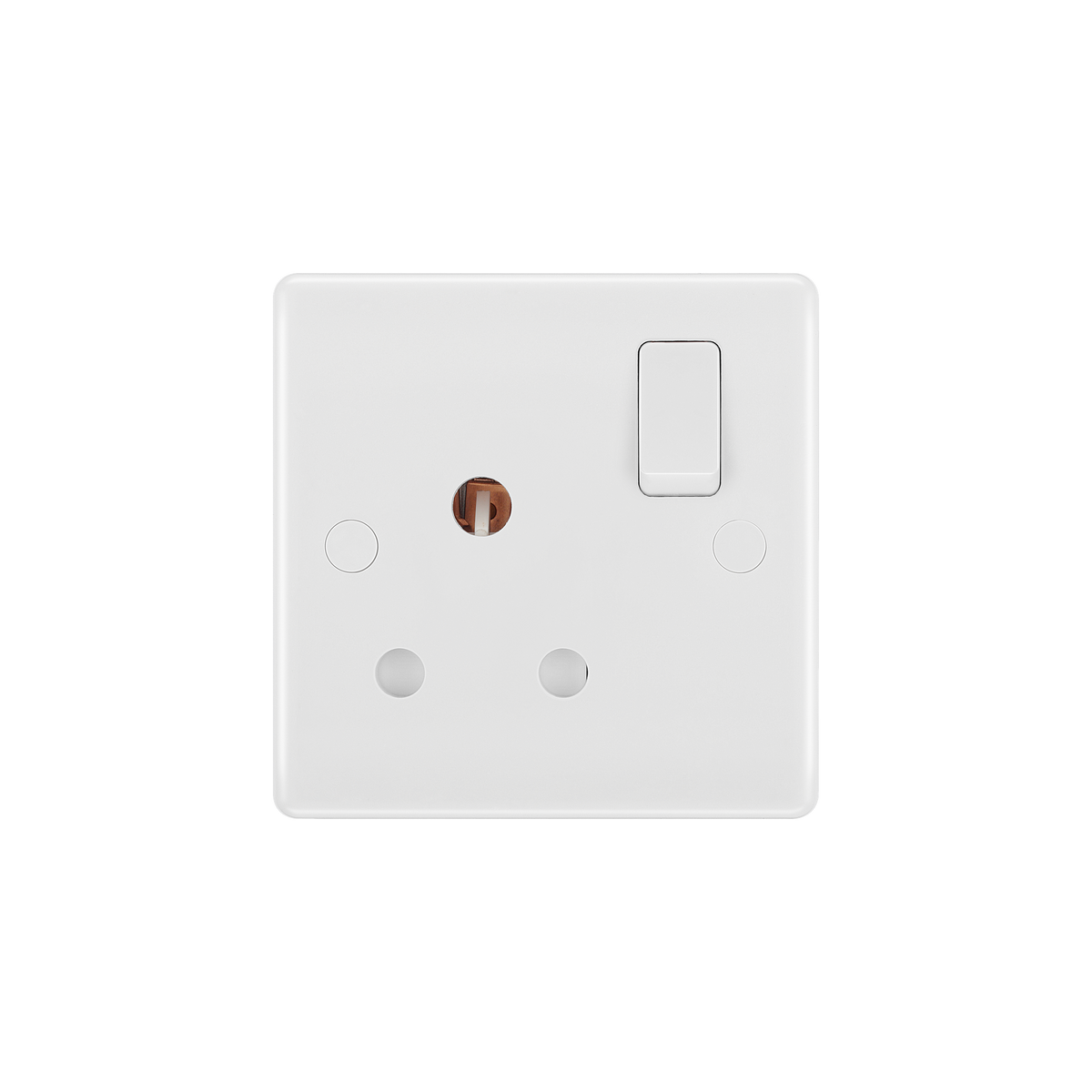

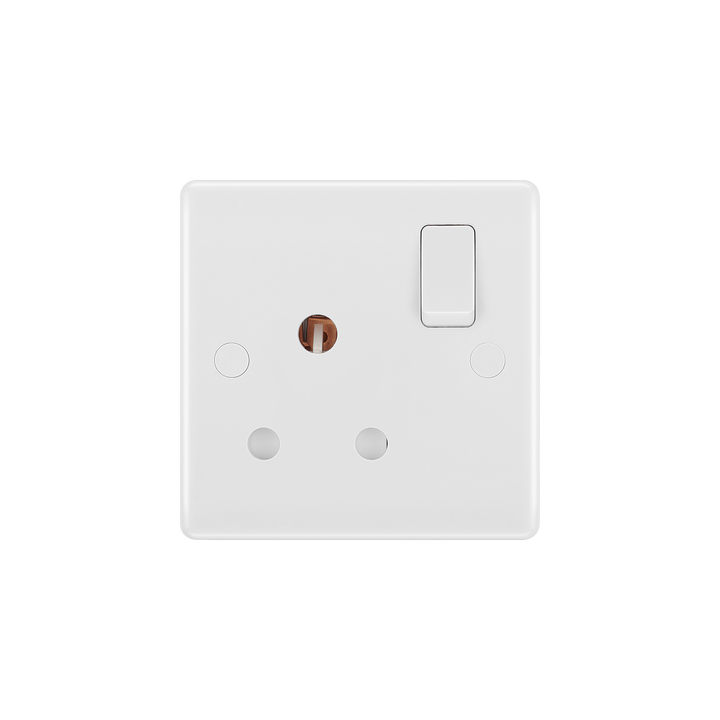

15A Single Round Pin Switched Socket – Rounded Edge White – BG 899-01 front view

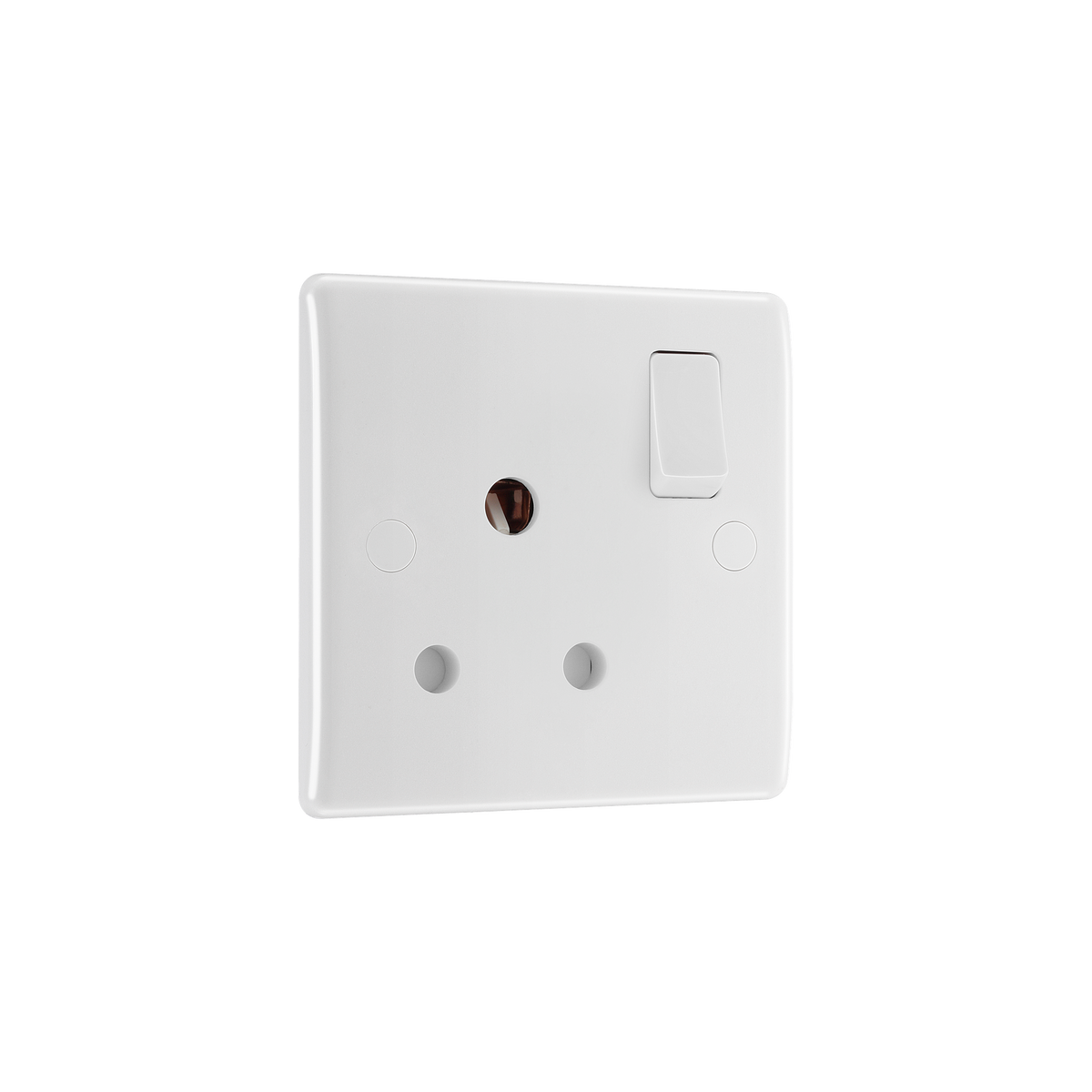

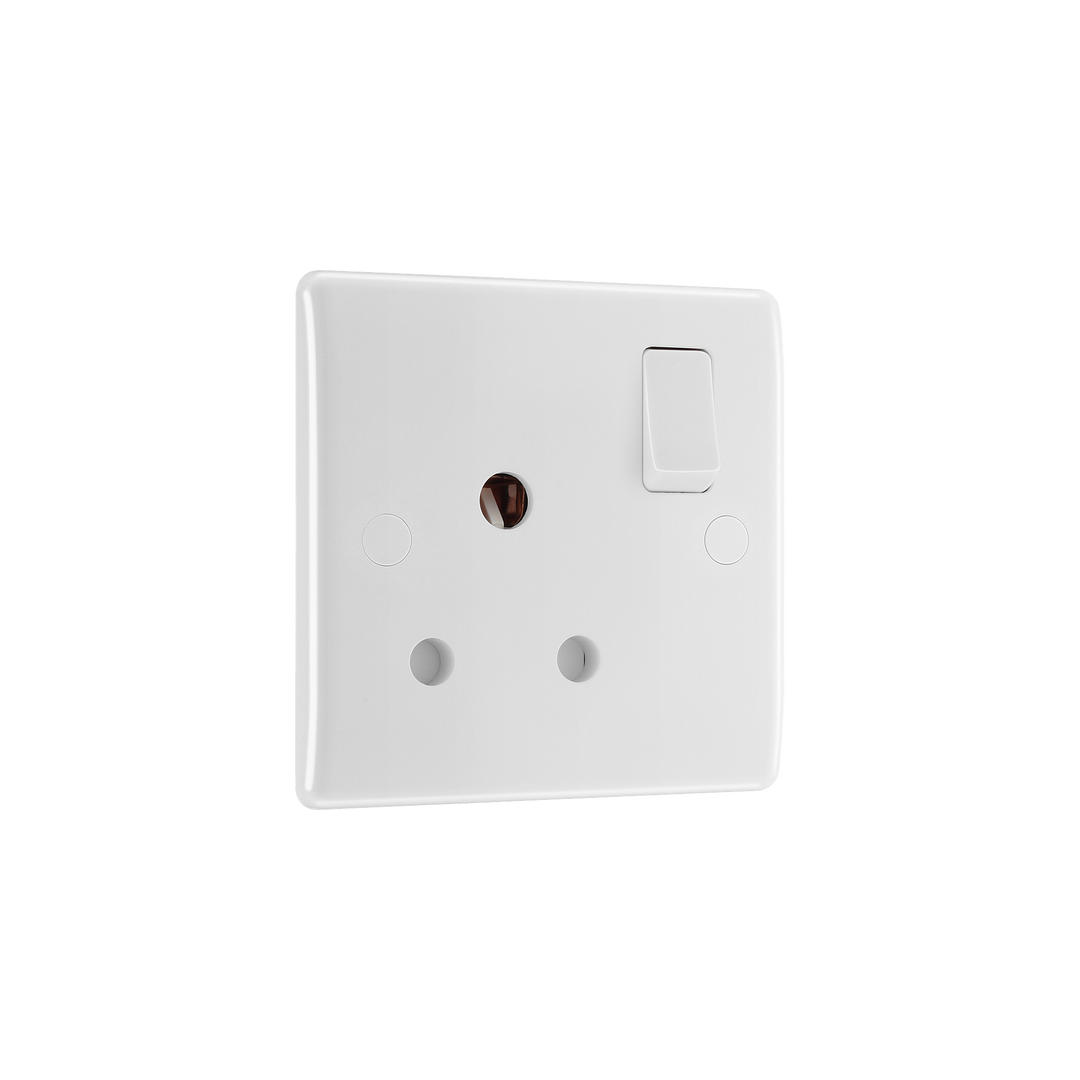

15A Single Round Pin Switched Socket – Rounded Edge White – BG 899-01 angled view
15A Single Round Pin Switched Socket – Rounded Edge White – BG 899-01 front view
15A Single Round Pin Switched Socket – Rounded Edge White – BG 899-01 angled view

15A Single Round Pin Switched Socket – Rounded Edge White

Price
Regular price €4,49
Regular price Sale price €4,49
Save €-4,49
/
Tax included.

The BG 899-01 15A Single Round Pin Switched Socket is part of the BG Nexus 800 Series White Moulded (rounded edge) range, finished in white moulded plastic with softly rounded edges and a slim profile. Manufactured by BG Electrical (Luceco).

Key features

  • 15A Rated
  • Captive screws prevent screw loss
  • Screw covers for sleek appearance
  • Minimum mounting box depth 25mm
  • Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Certified to BS 546

Specifications

Brand BG Electrical (Luceco)
Range BG Nexus 800 Series White Moulded (rounded edge)
Part number 899-01
Colour White
Edge style Rounded edge
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 25
Terminal Capacity (# x mm²) 3 x 2.5
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Number of Earth Terminals 1
Terminal Arrangement Angled, Inline
Number of Sockets 1
Socket Type 15A Round Pin
Number of Switches 1
Screw Caps Yes
Switch Type (Ways & Poles) Single Pole
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 220-240
Warranty (years) 30

What's in the box

  • 1 x 15A Single Round Pin Switched Socket, with fixing screws
