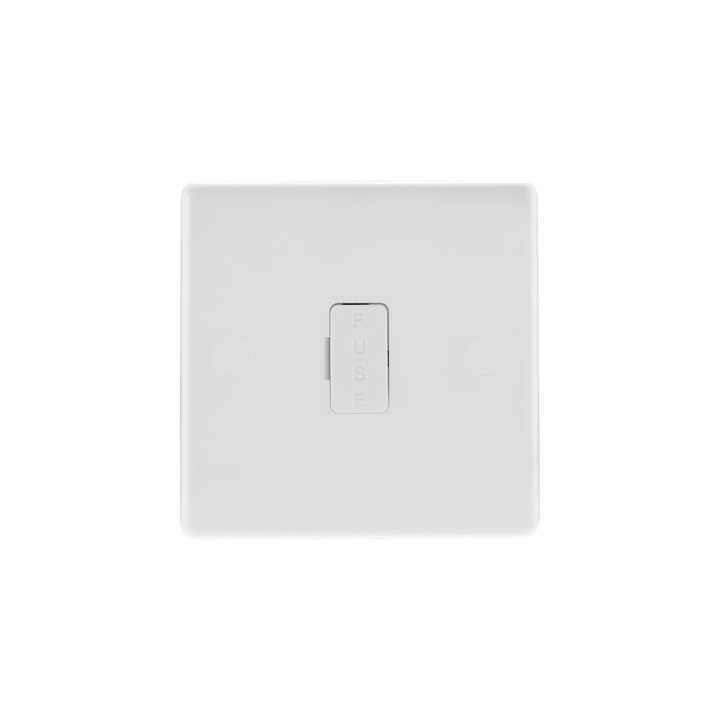

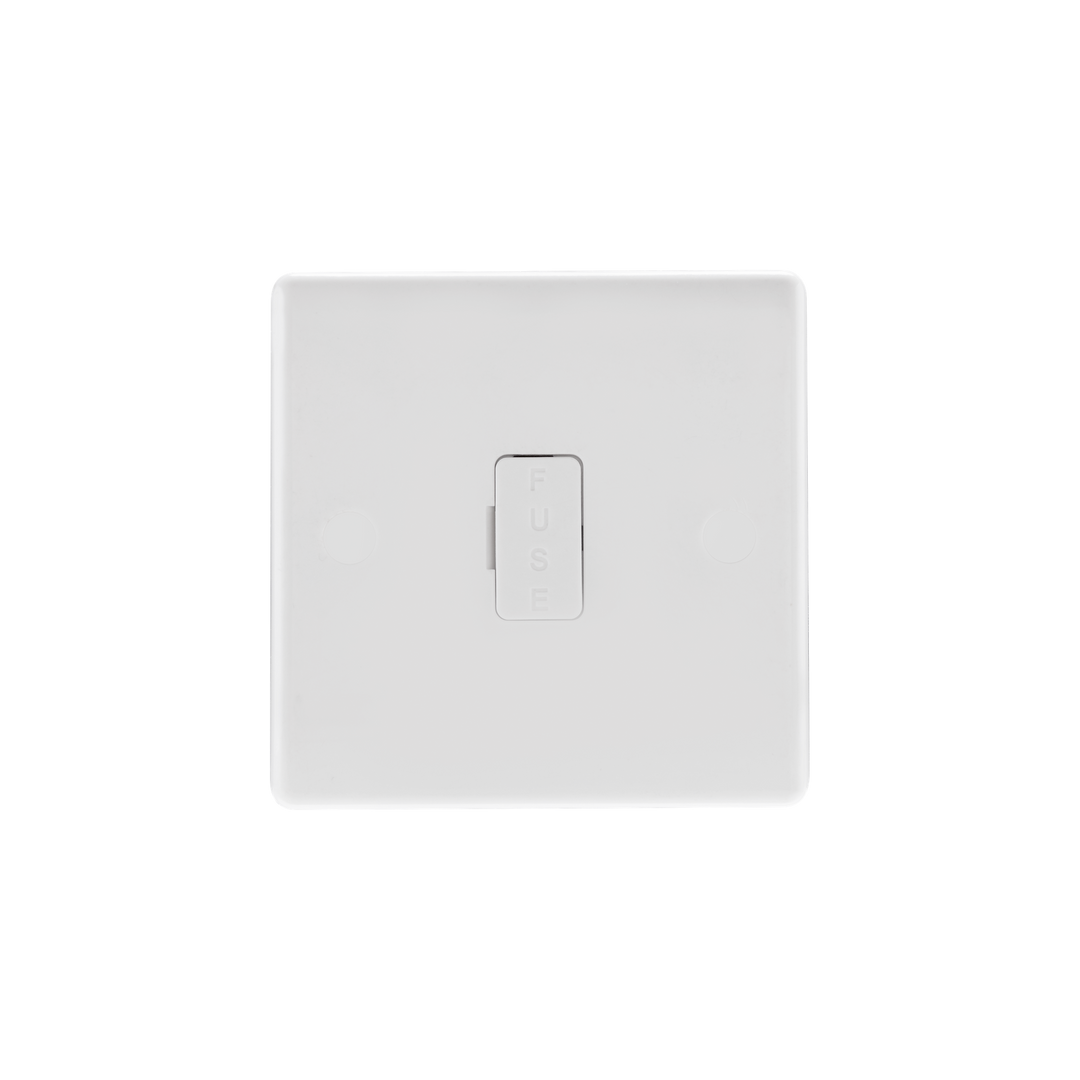

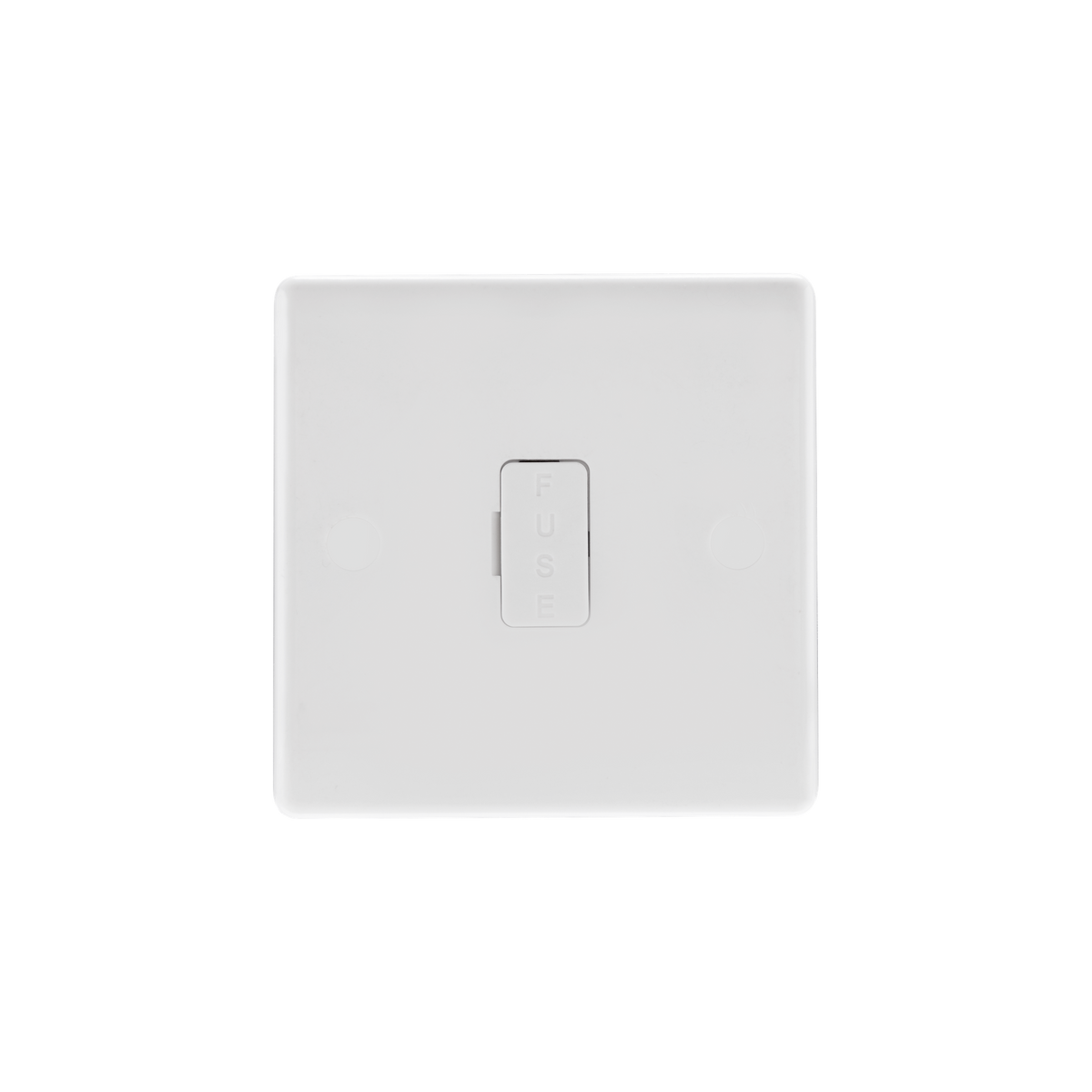

Unswitched Fused Connection Unit 13A – Rounded Edge White – BG 854-01 front view

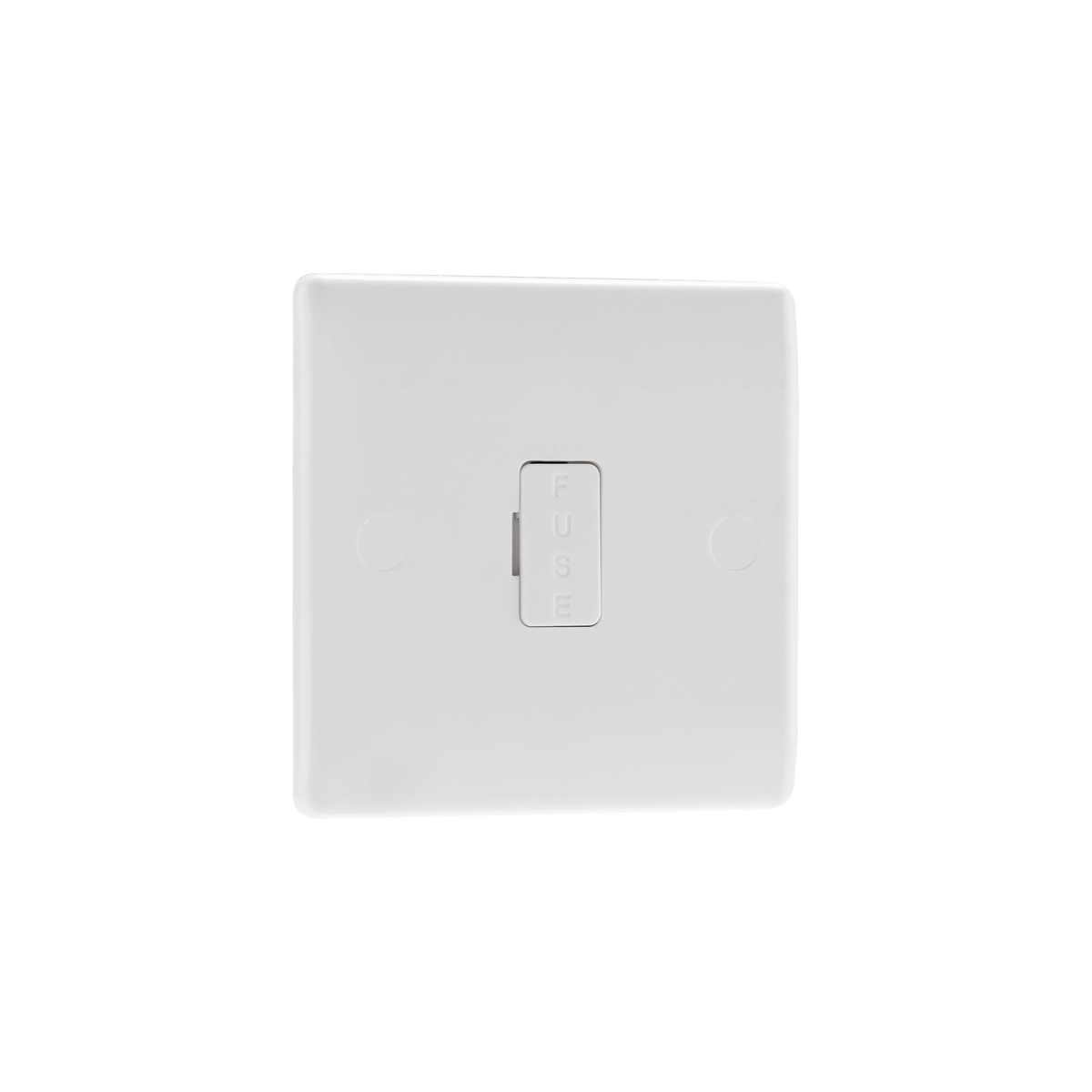

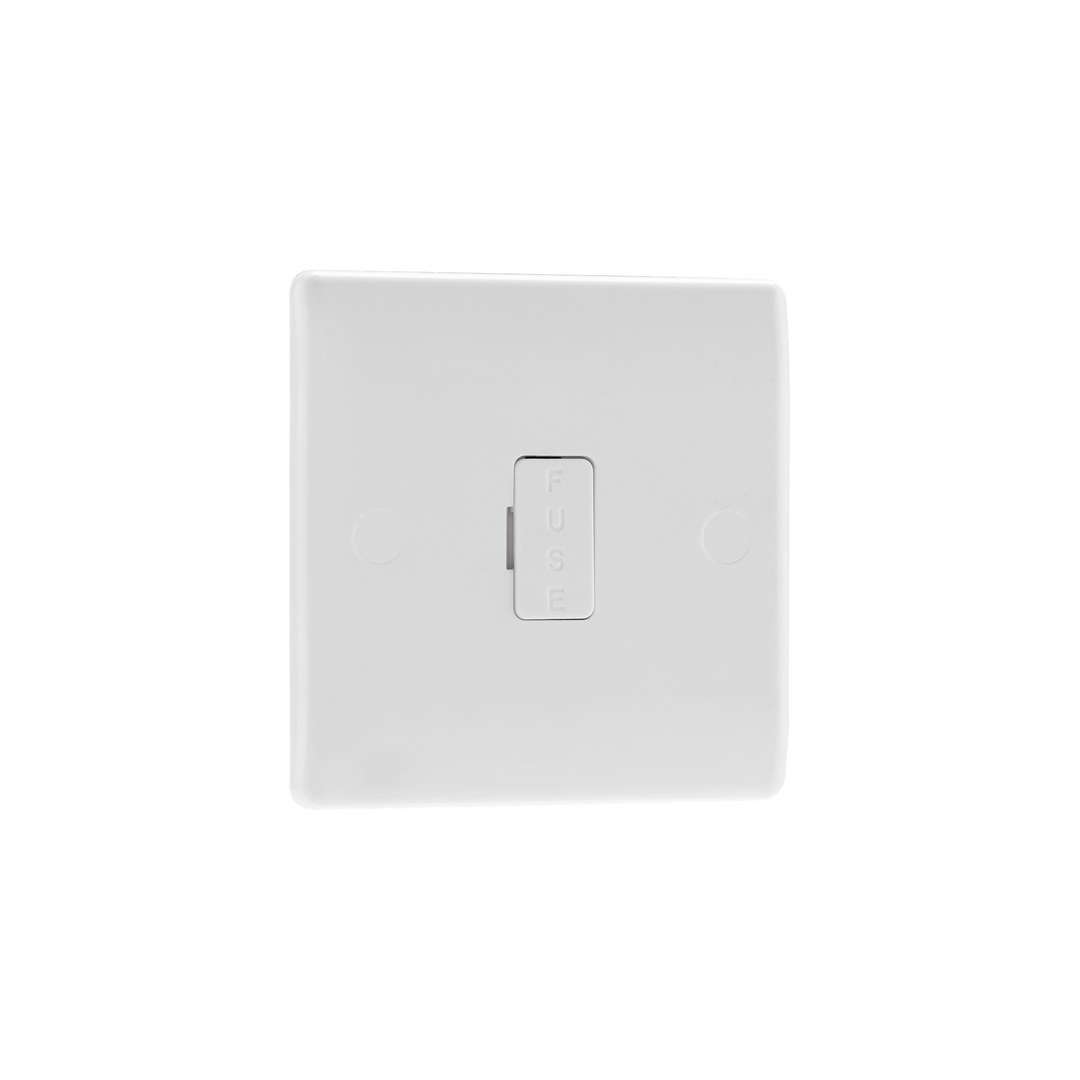

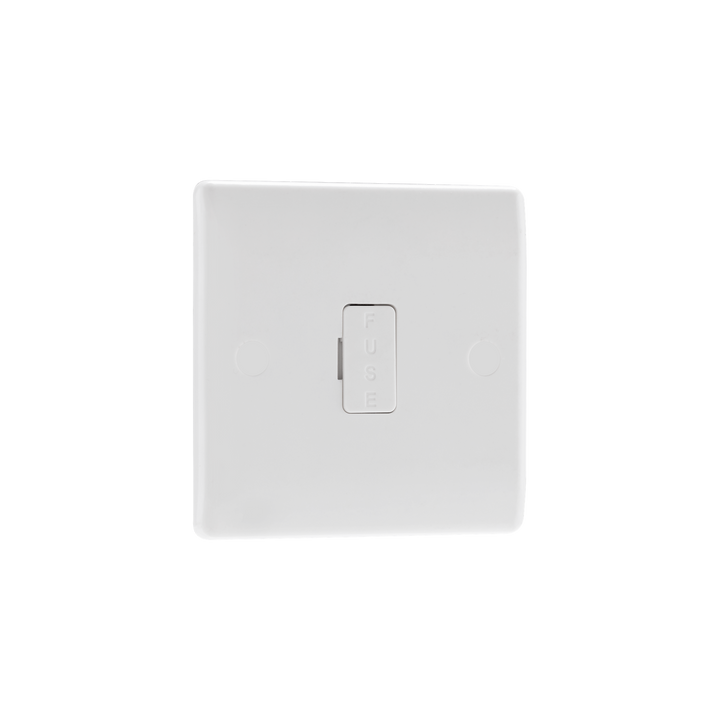

Unswitched Fused Connection Unit 13A – Rounded Edge White – BG 854-01 angled view
Unswitched Fused Connection Unit 13A – Rounded Edge White – BG 854-01 front view
Unswitched Fused Connection Unit 13A – Rounded Edge White – BG 854-01 angled view

Unswitched Fused Connection Unit 13A – Rounded Edge White

Price
Regular price €4,49
Regular price Sale price €4,49
Save €-4,49
/
Tax included.

The BG 854-01 Unswitched Fused Connection Unit 13A is part of the BG Nexus 800 Series White Moulded (rounded edge) range, finished in white moulded plastic with softly rounded edges and a slim profile. Manufactured by BG Electrical (Luceco).

Key features

  • 13A Rated
  • Ideal for spur circuits and hard wired power appliances
  • Captive screws prevent screw loss
  • Screw covers for sleek appearance
  • Minimum mounting box depth 35mm
  • Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Certified to BS 1363 Part 4
  • ASTA Licence number 1015

Specifications

Brand BG Electrical (Luceco)
Range BG Nexus 800 Series White Moulded (rounded edge)
Part number 854-01
Colour White
Edge style Rounded edge
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Main Power Indicator No
Minimum Box Depth (mm) 35
Terminal Capacity (# x mm²) 3 x 2.5
Fused Yes
Fused Holder Colour White
Anti-microbial Property Yes
Flex Out No
Flex Out Position None
Supplied with Mounting Box No
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled
Number of Switches 0
Screw Caps Yes
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 250
Warranty (years) 30

What's in the box

  • 1 x Unswitched Fused Connection Unit 13A, with fixing screws
