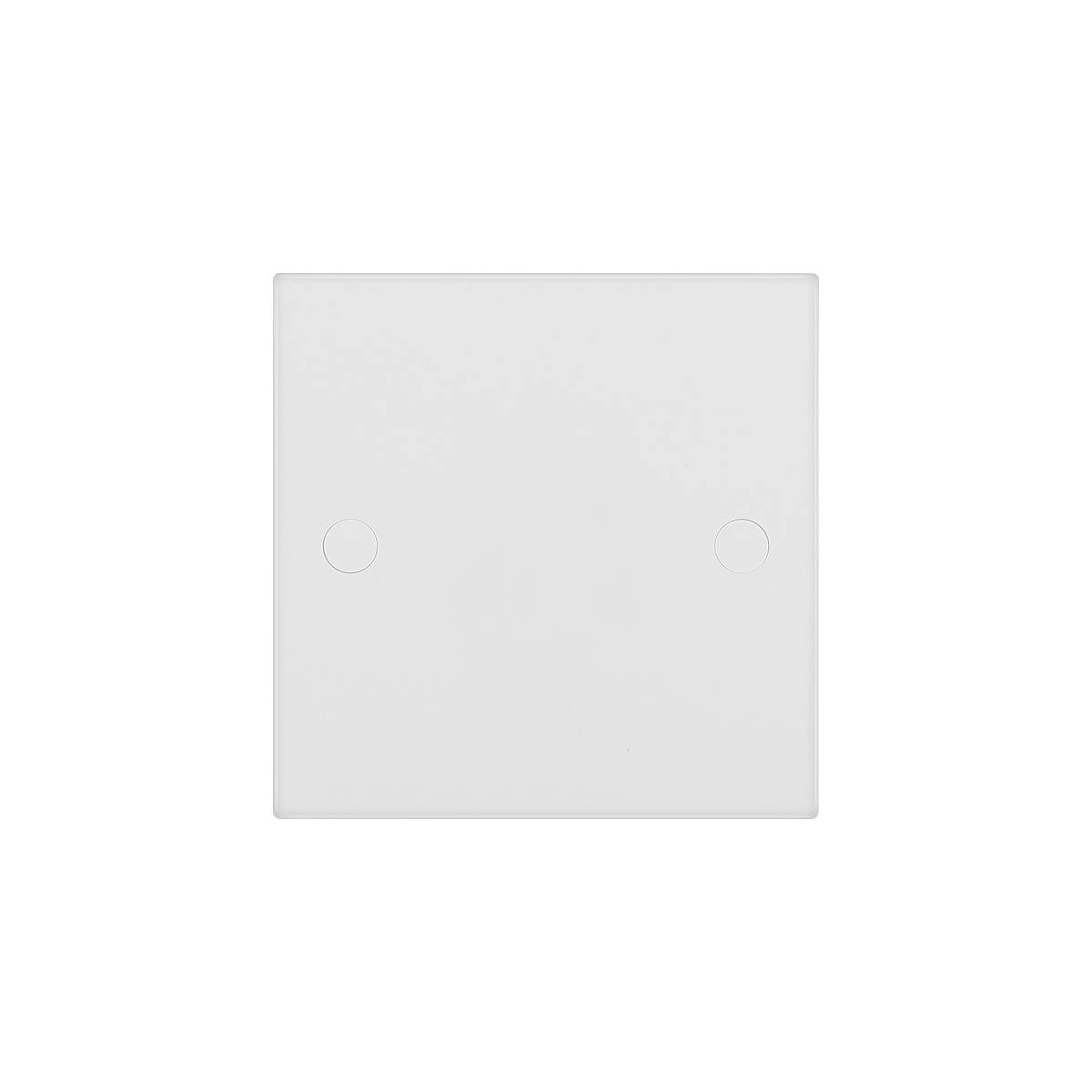

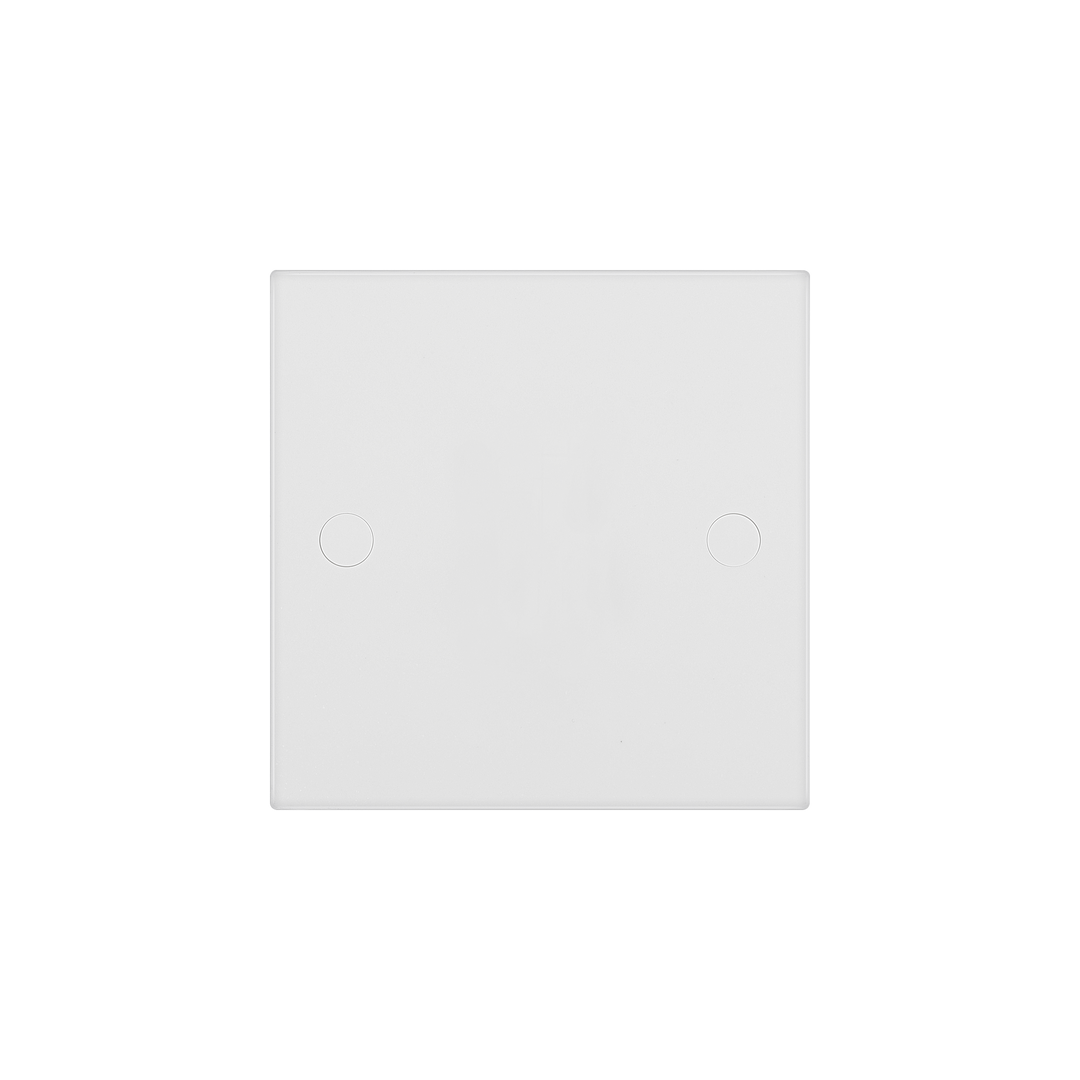

25A Single Flex Outlet Plate Bottom Entry – Square Edge White – BG 954-0J front view

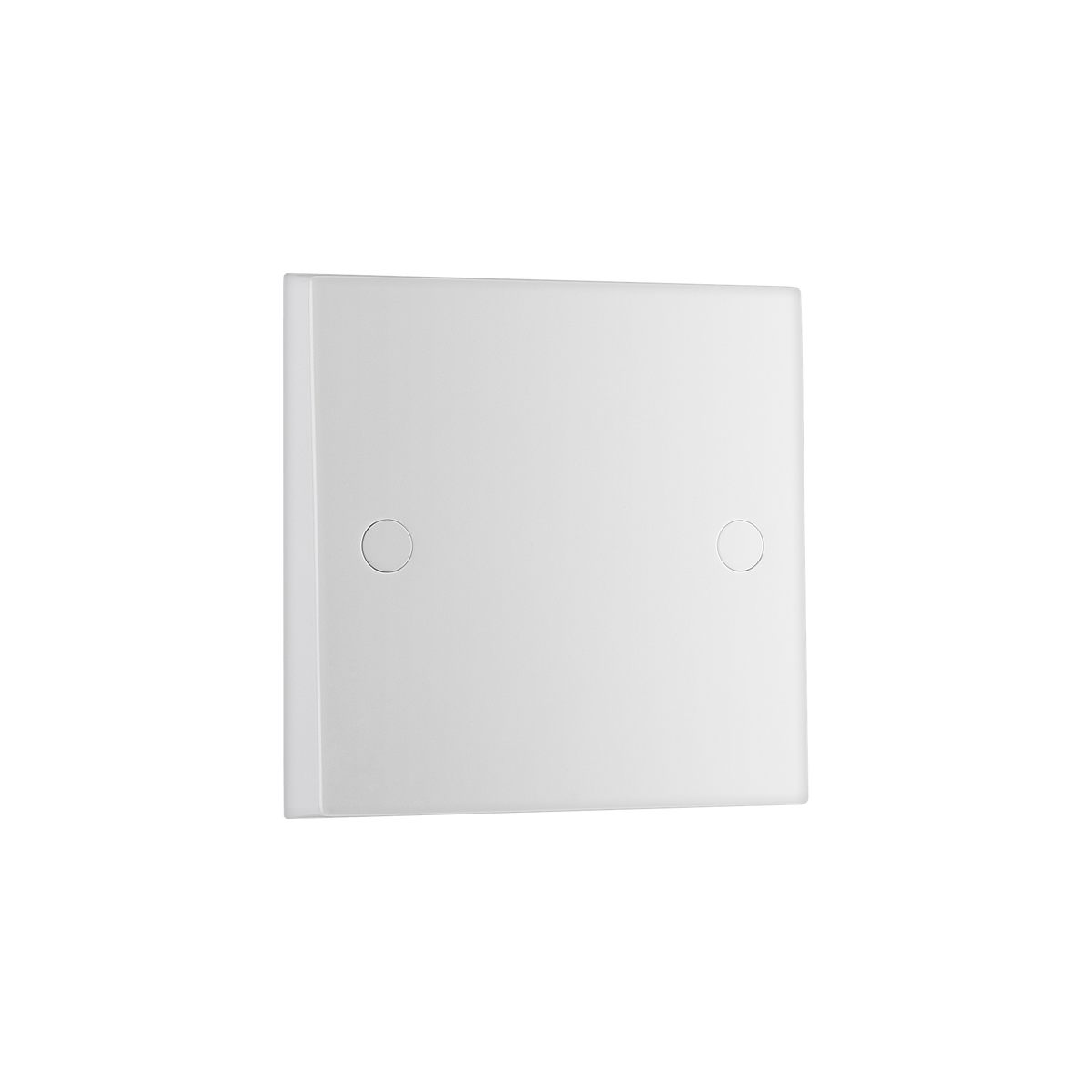

25A Single Flex Outlet Plate Bottom Entry – Square Edge White – BG 954-0J angled view

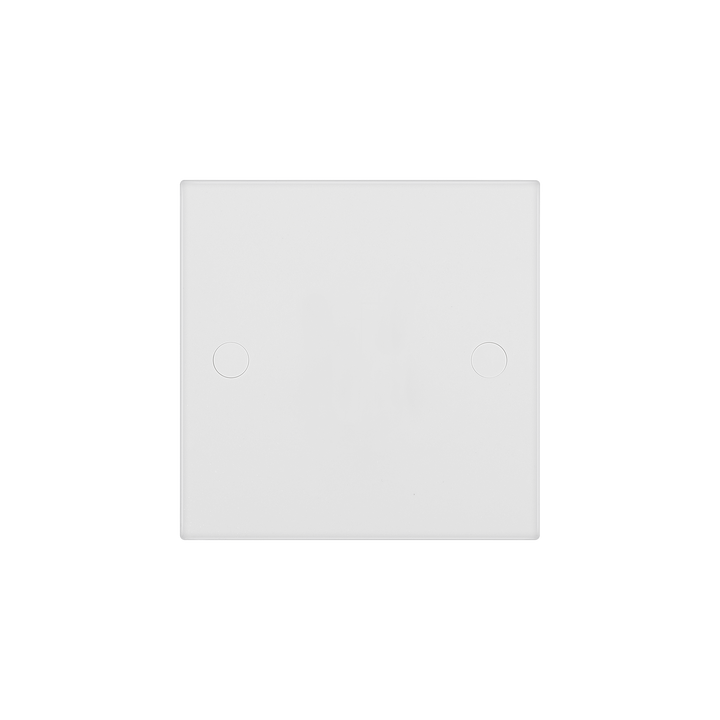

25A Single Flex Outlet Plate Bottom Entry – Square Edge White – BG 954-0J front view
25A Single Flex Outlet Plate Bottom Entry – Square Edge White – BG 954-0J angled view

25A Single Flex Outlet Plate Bottom Entry – Square Edge White

Price
Regular price €3,49
Regular price Sale price €3,49
Save €-3,49
/
Tax included.

The BG 954-0J 25A Single Flex Outlet Plate Bottom Entry is part of the BG 900 Series White Moulded (square edge) range, finished in white moulded plastic with classic square edges. Manufactured by BG Electrical (Luceco).

Key features

  • 25A Rated
  • Suitable for the connection of refrigerators water heaters, central heating and other fixed appliances
  • cable entry slot at the lower edge of the faceplate
  • Reversible cord grip and removable reducer to accommodate different flex sizes
  • Terminals have 2 cable apertures and screws for individual cables for ease of wiring
  • Screw covers for sleek appearance
  • Minimum mounting box depth 35mm
  • Anti-microbial certified - inhibits 99% of bacterial growth on touch point surfaces from infectious diseases including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Certified to BS 5733

Specifications

Brand BG Electrical (Luceco)
Range BG 900 Series White Moulded (square edge)
Part number 954-0J
Colour White
Edge style Square edge
Captive Terminal Screws Yes
Backed-out Terminal Screws Yes
Minimum Box Depth (mm) 35
Terminal Capacity (# x mm²) 3 x 2.5
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Number of Earth Terminals 2
Terminal Arrangement Angled
Number of Switches 0
Screw Caps Yes
Fixing Centres (mm) W-60.3
IP Rating IP20
Operating Voltage (V) 250
Warranty (years) 25

What's in the box

  • 1 x 25A Single Flex Outlet Plate Bottom Entry, with fixing screws
