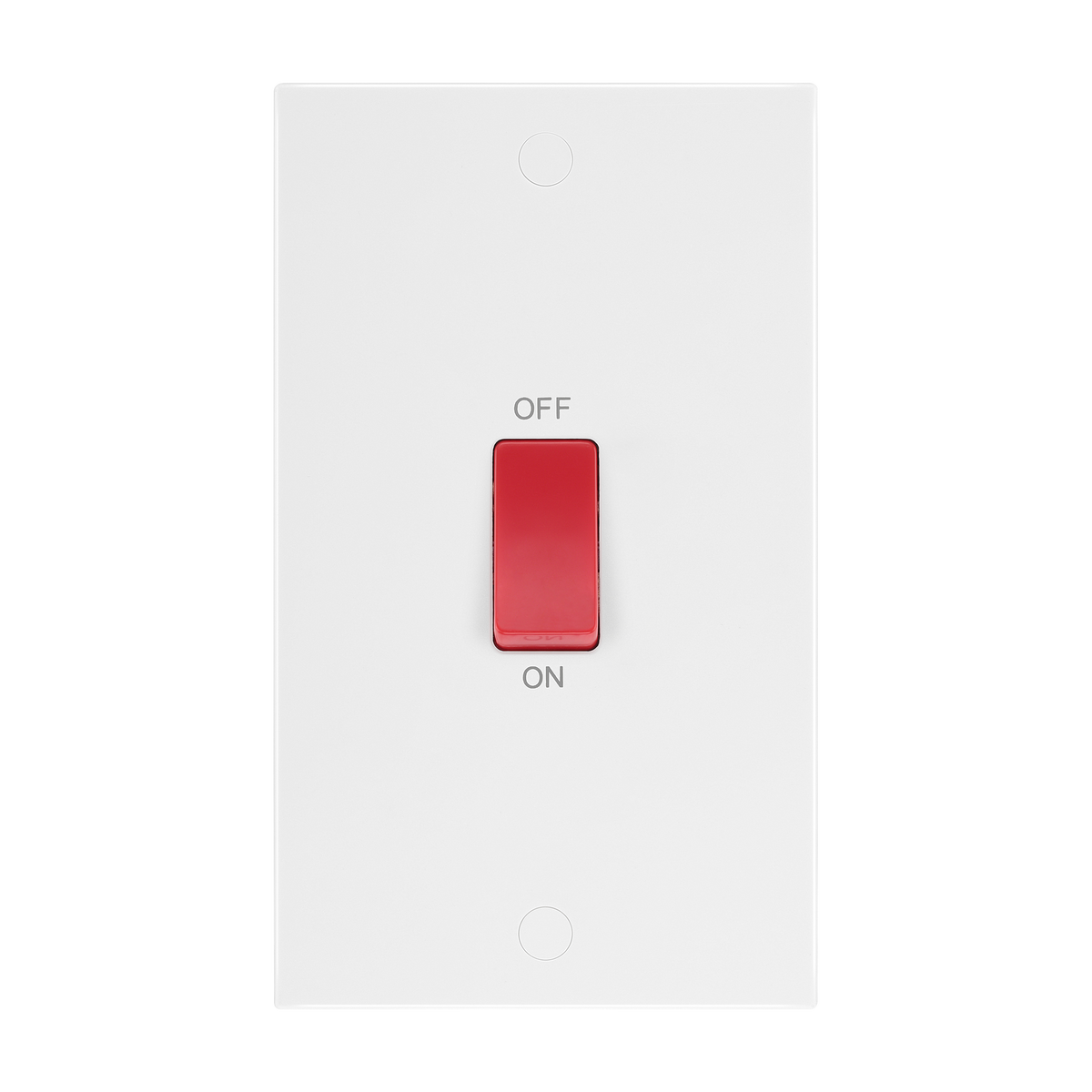

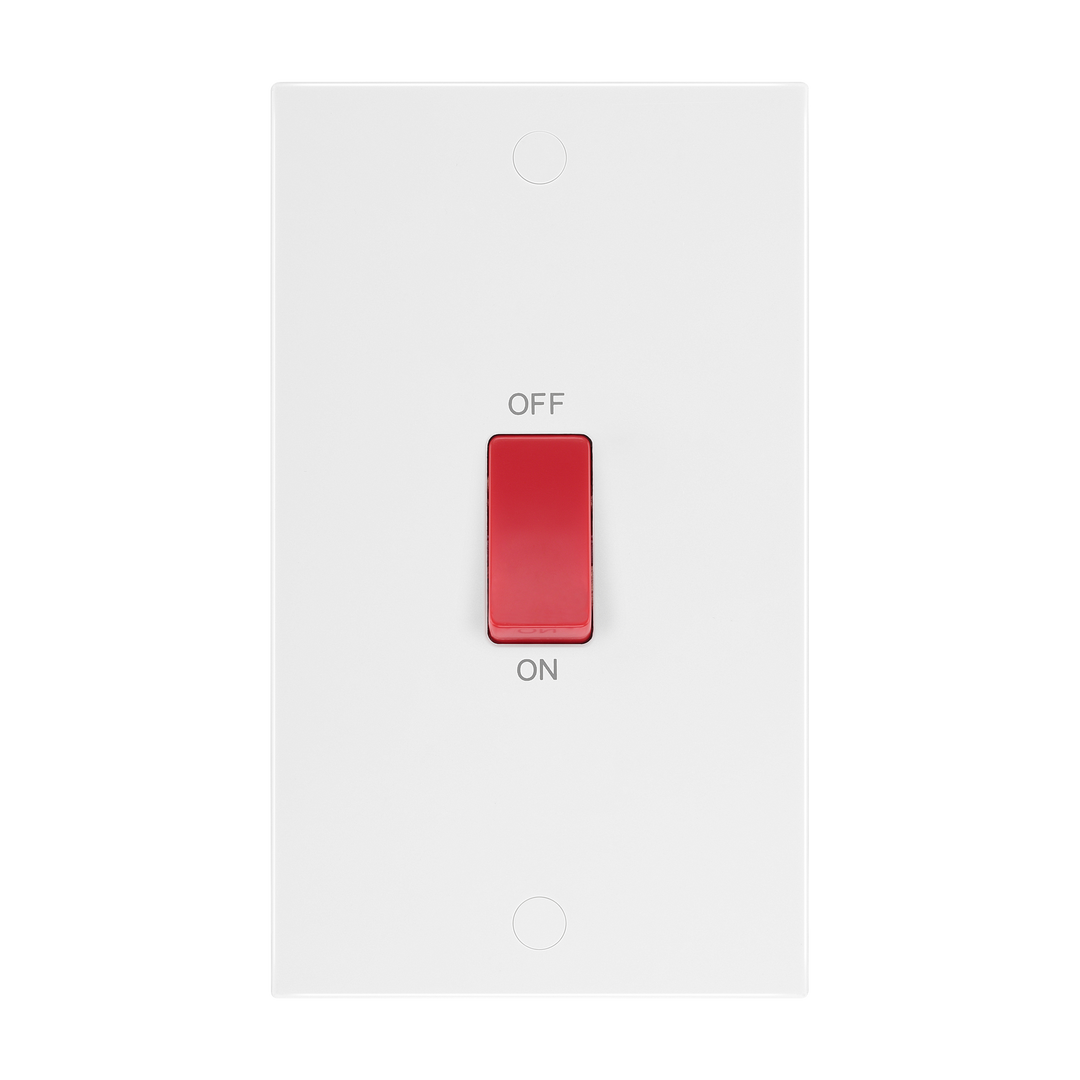

45A Large Plate Double Pole Switch – Square Edge White – BG 973-0J front view

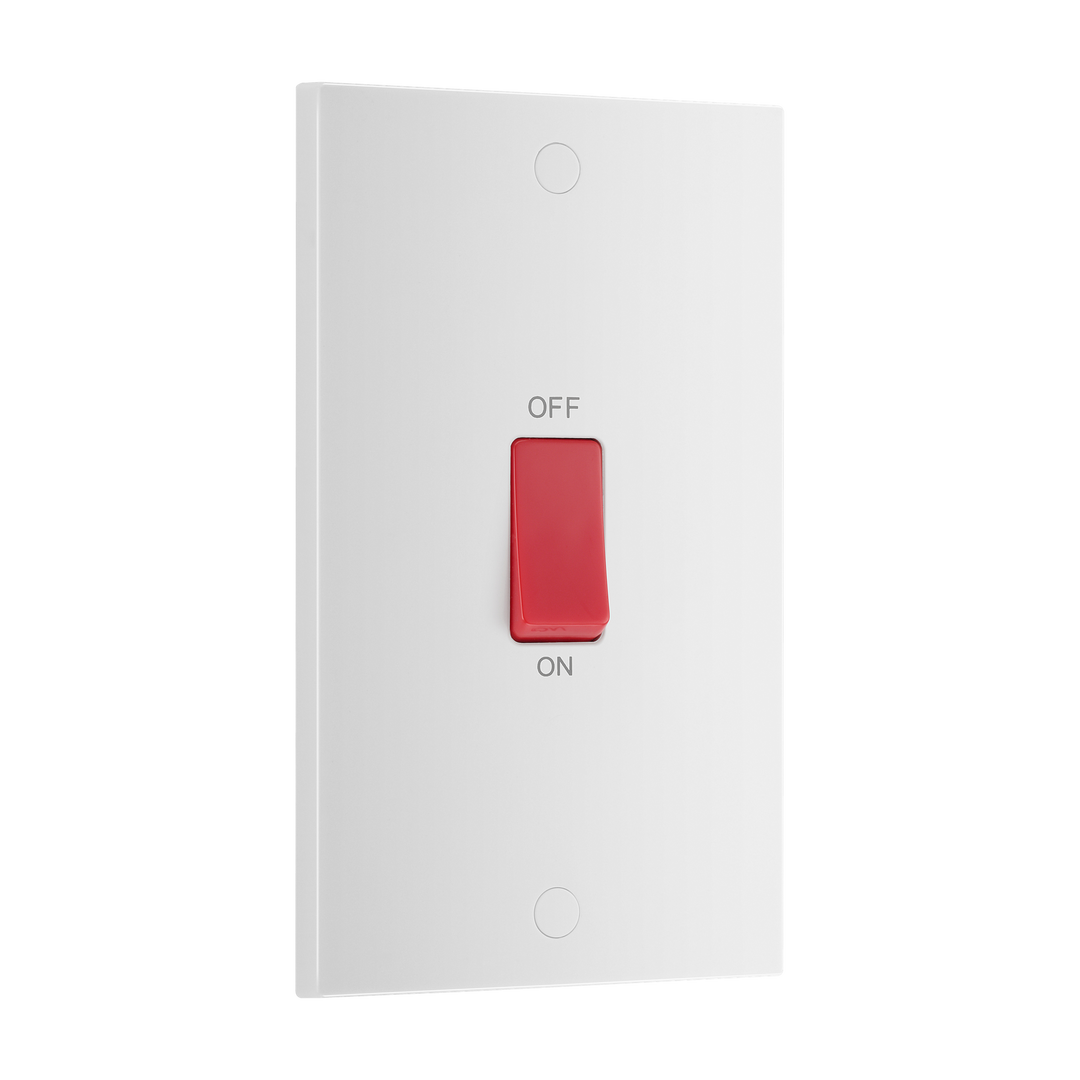

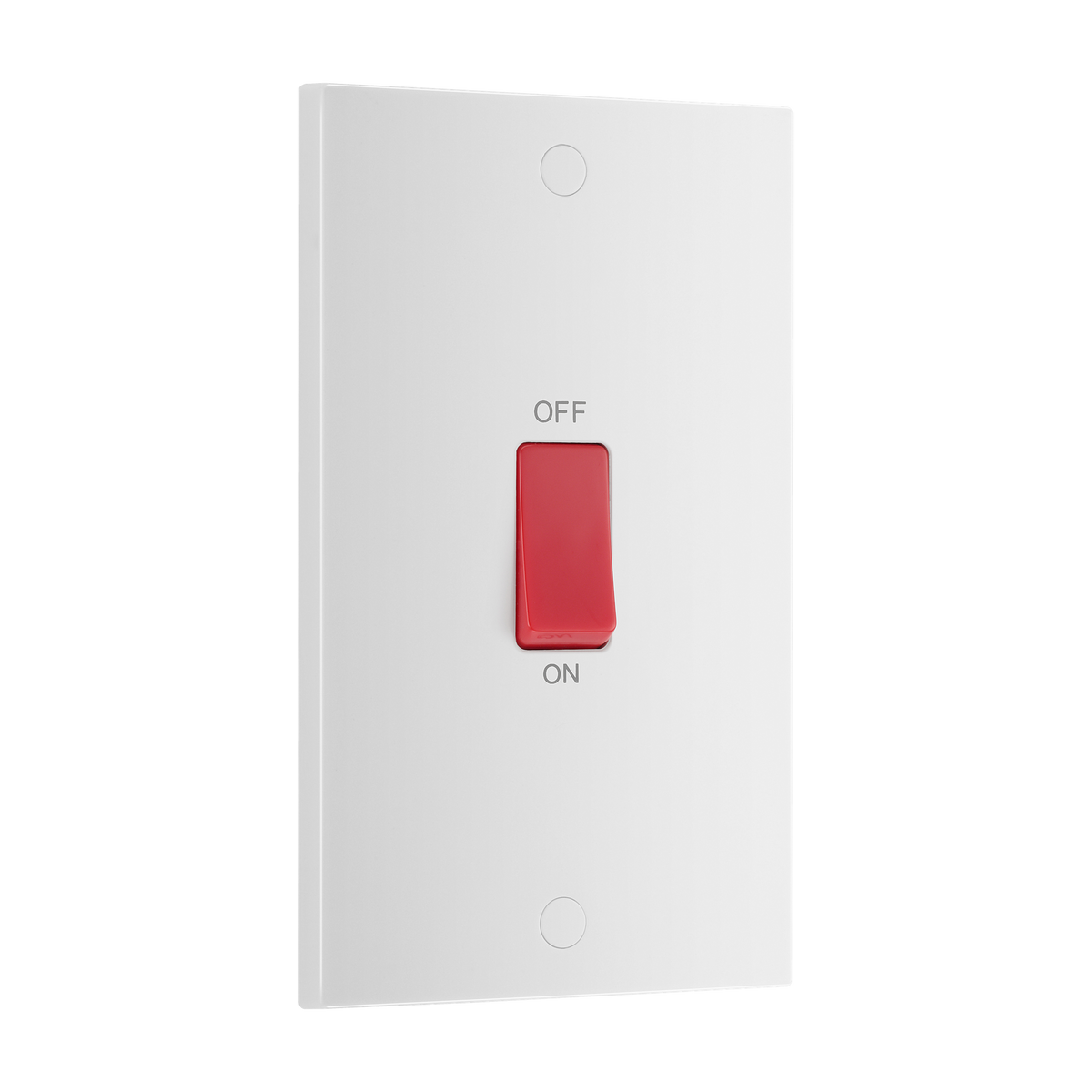

45A Large Plate Double Pole Switch – Square Edge White – BG 973-0J angled view

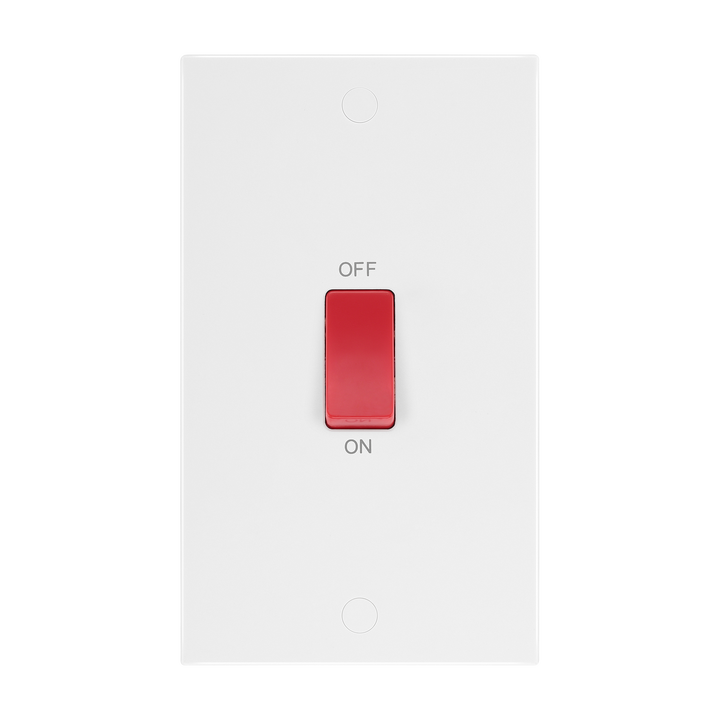

45A Large Plate Double Pole Switch – Square Edge White – BG 973-0J front view

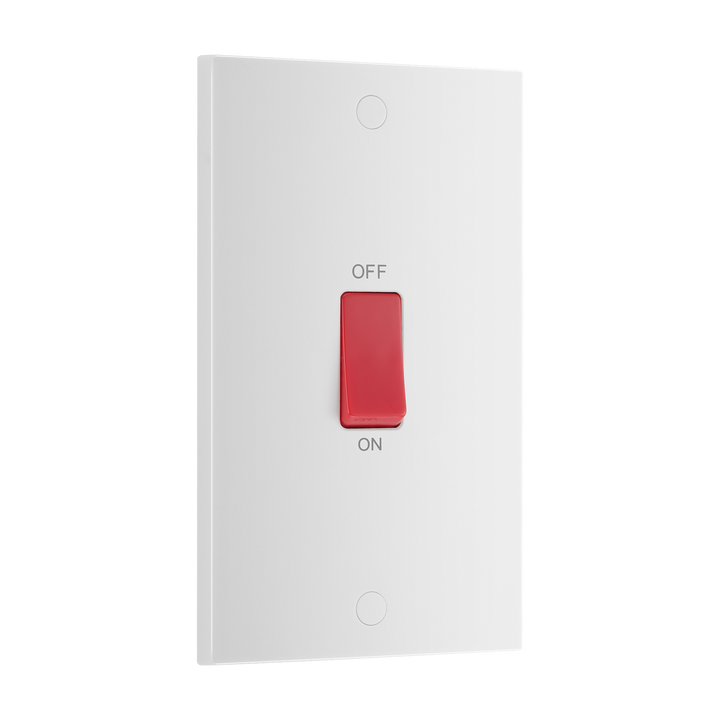

45A Large Plate Double Pole Switch – Square Edge White – BG 973-0J angled view

45A Large Plate Double Pole Switch – Square Edge White

Price
Regular price €8,49
Regular price Sale price €8,49
Save €-8,49
/
Tax included.

The BG 973-0J 45A Large Plate Double Pole Switch is part of the BG 900 Series White Moulded (square edge) range, finished in white moulded plastic with classic square edges. Manufactured by BG Electrical (Luceco).

Key features

  • 45A Rated
  • Screw covers for sleek appearance
  • Minimum mounting box depth 47mm
  • Manufactured using high grade thermoset Urea which effectively inhibits the growth of infectious diseases, including MRSA, E-Coli, Salmonella and Klebsiella Pneumonia bacteria
  • Certified to BS EN 60669
  • ASTA Licence number 1012

Specifications

Brand BG Electrical (Luceco)
Range BG 900 Series White Moulded (square edge)
Part number 973-0J
Colour White
Edge style Square edge
Captive Terminal Screws No
Backed-out Terminal Screws No
Minimum Box Depth (mm) 47
Terminal Capacity (# x mm²) 4 x 4 , 3 x 6.0, 1 x 16
Anti-microbial Property Yes
Fixing Screws Supplied Yes
Number of Switches 1
Screw Caps Yes
Switch Style Type Rocker
Switch Type (Ways & Poles) Double Pole
Switch Location Position Wall
Fixing Centres (mm) H-120.6
IP Rating IP20
Operating Voltage (V) 220-240
Switch State On/Off
Warranty (years) 25

What's in the box

  • 1 x 45A Large Plate Double Pole Switch, with fixing screws
