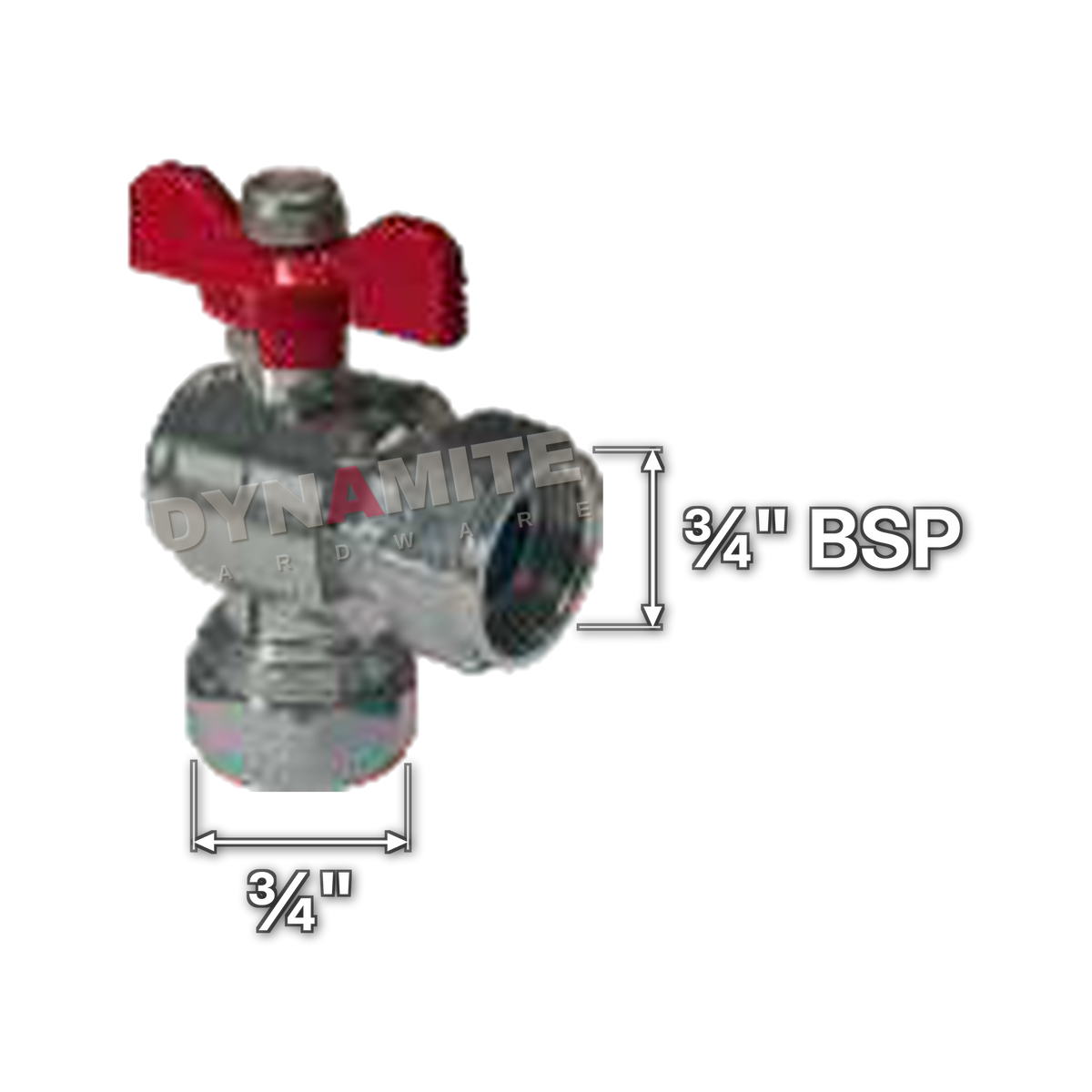

Angled Butterfly Ball Valve - Female BSP Swivel x Compression, ¾", size marked with a white arrow

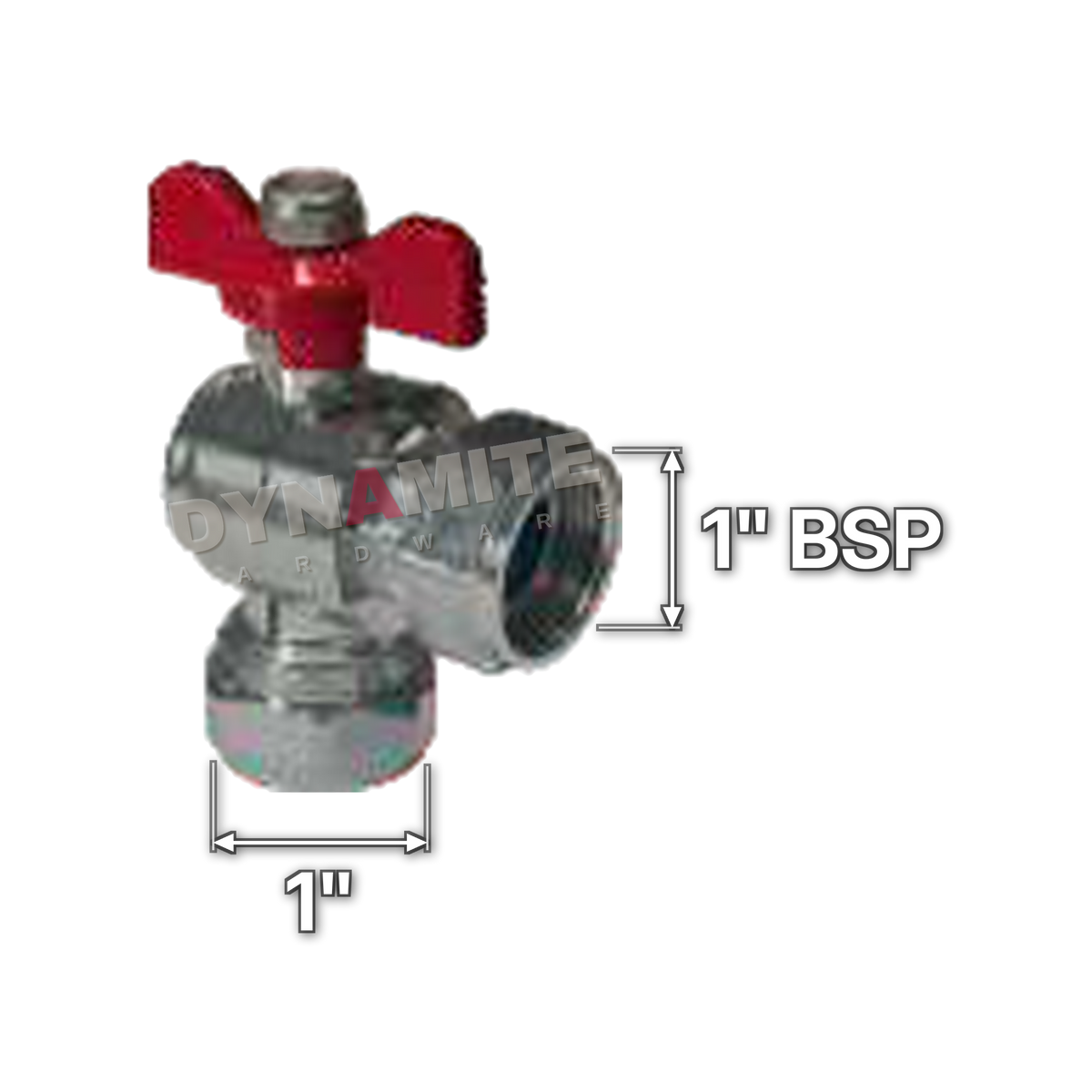

Angled Butterfly Ball Valve - Female BSP Swivel x Compression, 1", size marked with a white arrow

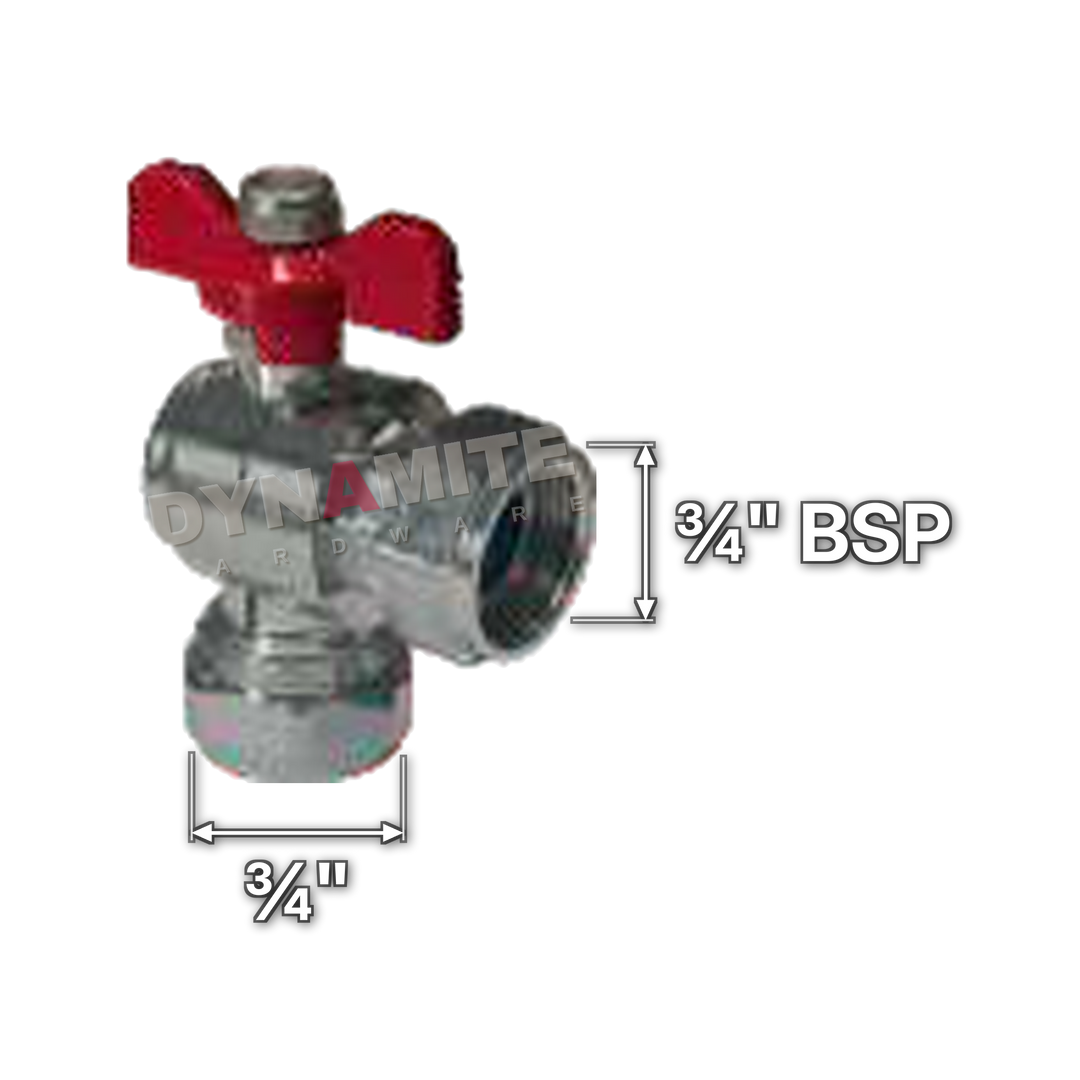

Angled Butterfly Ball Valve - Female BSP Swivel x Compression, ¾", size marked with a white arrow

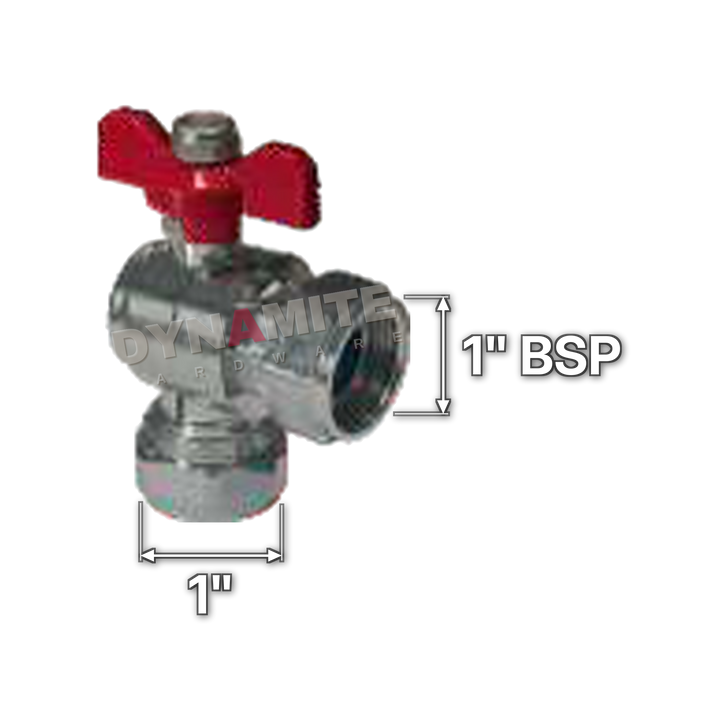

Angled Butterfly Ball Valve - Female BSP Swivel x Compression, 1", size marked with a white arrow

Angled Butterfly Ball Valve - Female BSP Swivel x Compression

Size
Price
Regular price €9,49
Regular price Sale price €9,49
Save €-9,49
/
Tax included.

An angle-pattern ball valve with a red butterfly (tee) handle, a female BSP swivel nut on one end and a compression nut and olive on the other, at 90°. Supplied with sealing washers for the swivel end. Turns a corner and isolates in one fitting: ideal for appliances, cylinders and pumps.

Made by Excel Industries.

Specifications

Type Ball valve (quarter turn)
Sizes available ¾", 1"
Ends Female BSP swivel nut x compression, 90° angle
Pattern Angled (90°)
Bore Standard
Operation Quarter-turn butterfly handle
Body Nickel-plated brass
Manufacturer Excel Industries
Excel codes 34IVA (¾"), 1IVA (1")

Not for gas.

Specifications from Excel Industries (catalogue Issue 26.7, isolation valves, page 38). Images are catalogue photos with sizes added.
