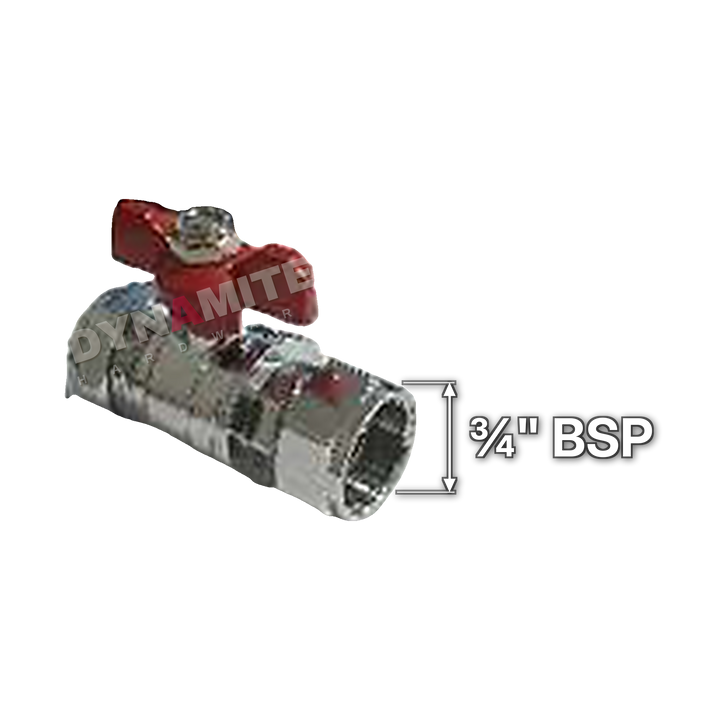

Butterfly Ball Valve - Female BSP Swivel x Compression, ¾", size marked with a white arrow

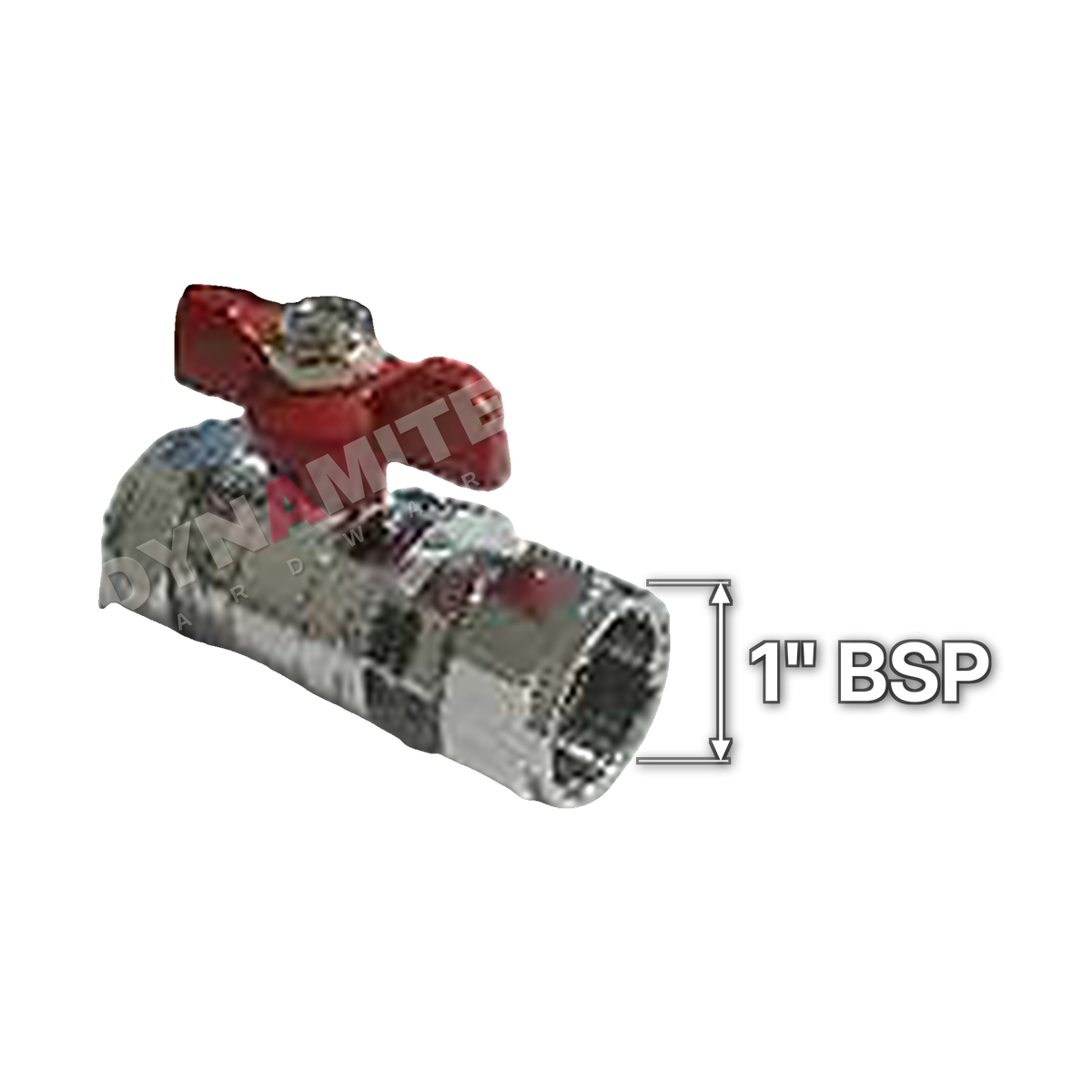

Butterfly Ball Valve - Female BSP Swivel x Compression, 1", size marked with a white arrow

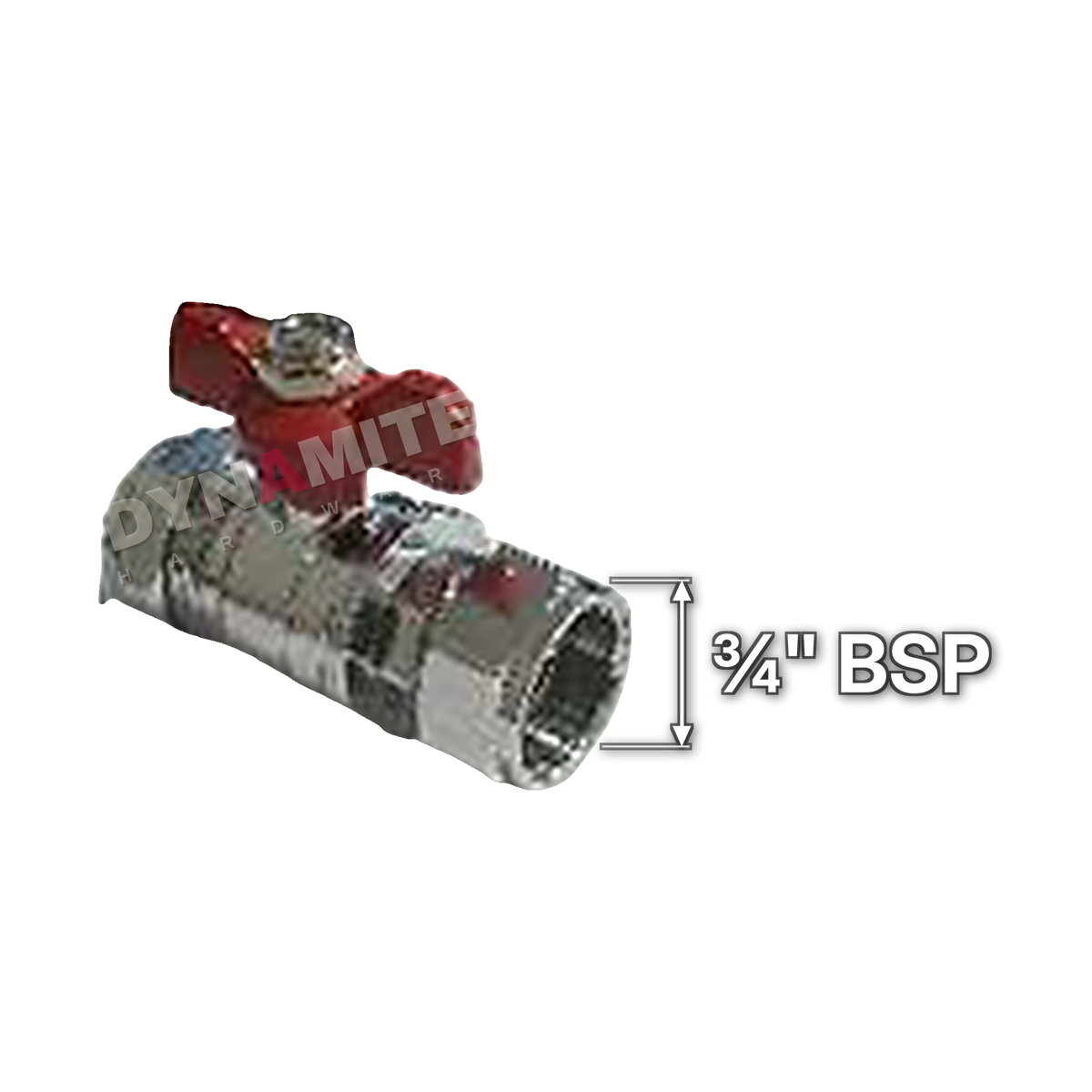

Butterfly Ball Valve - Female BSP Swivel x Compression, ¾", size marked with a white arrow
Butterfly Ball Valve - Female BSP Swivel x Compression, 1", size marked with a white arrow

Butterfly Ball Valve - Female BSP Swivel x Compression

Size
Price
Regular price €8,49
Regular price Sale price €8,49
Save €-8,49
/
Tax included.

A straight-pattern ball valve with a red butterfly (tee) handle, a female BSP swivel nut on one end and a compression nut and olive on the other. Supplied with sealing washers for the swivel end. Ideal for connecting appliances, cylinders and pumps to copper pipe with an isolating point.

Made by Excel Industries.

Specifications

Type Ball valve (quarter turn)
Sizes available ¾", 1"
Ends Female BSP swivel nut x compression
Pattern Straight
Bore Standard
Operation Quarter-turn butterfly handle
Body Nickel-plated brass
Manufacturer Excel Industries
Excel codes 34IVS (¾"), 1IVS (1")

Not for gas.

Specifications from Excel Industries (catalogue Issue 26.7, isolation valves, page 38). Images are catalogue photos with sizes added.
