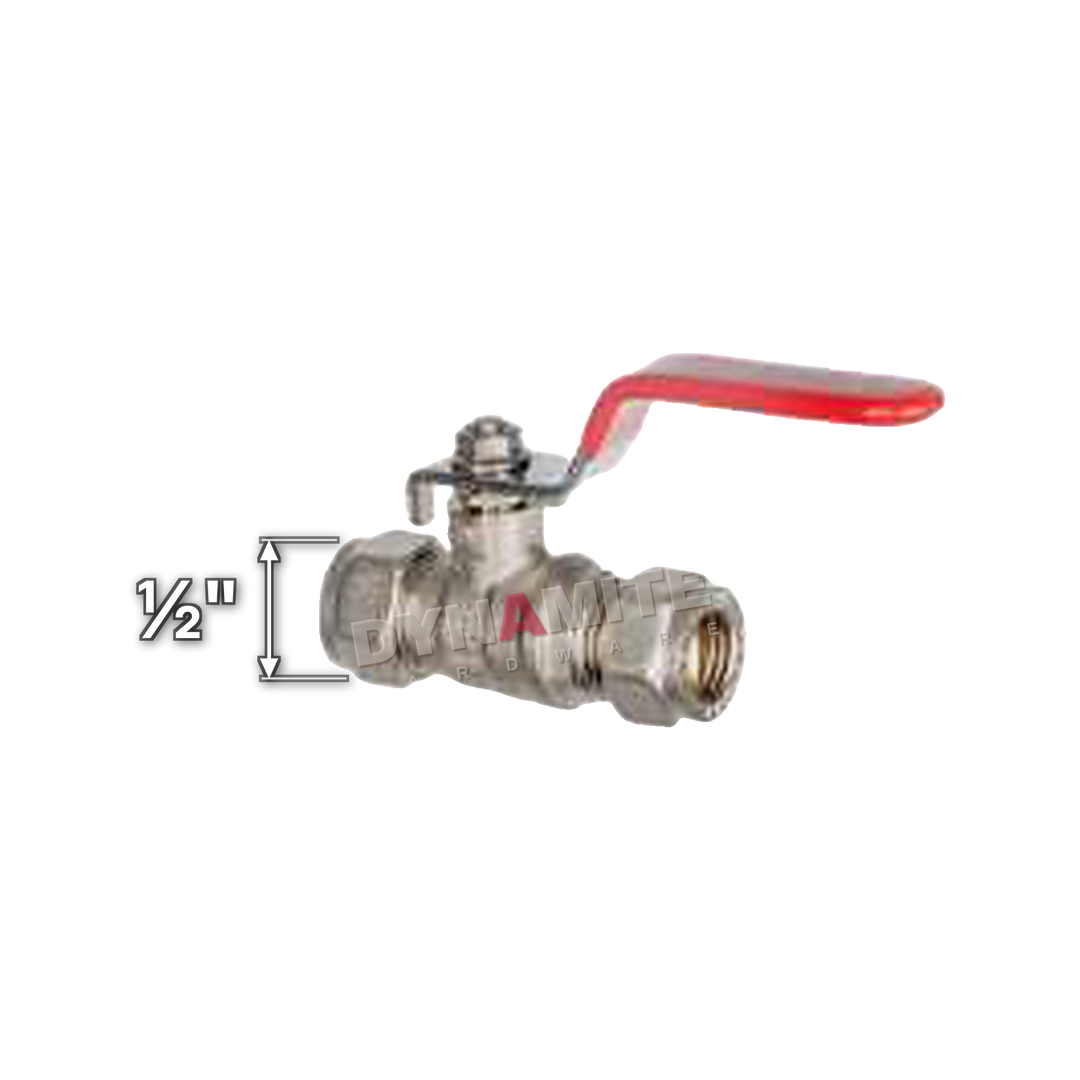

Reduced Bore Lever Ball Valve - Compression (Imperial), ½", size marked with a white arrow

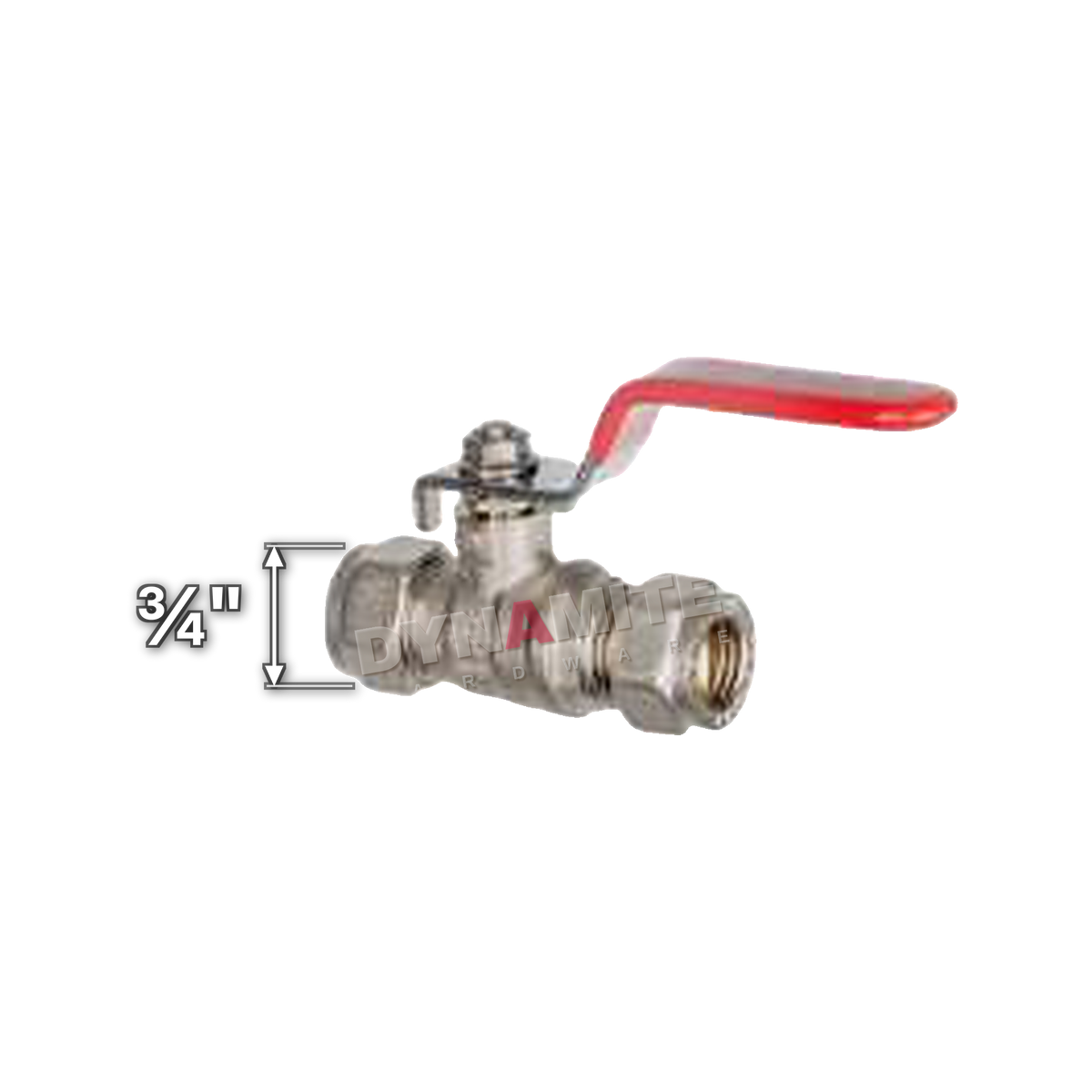

Reduced Bore Lever Ball Valve - Compression (Imperial), ¾", size marked with a white arrow

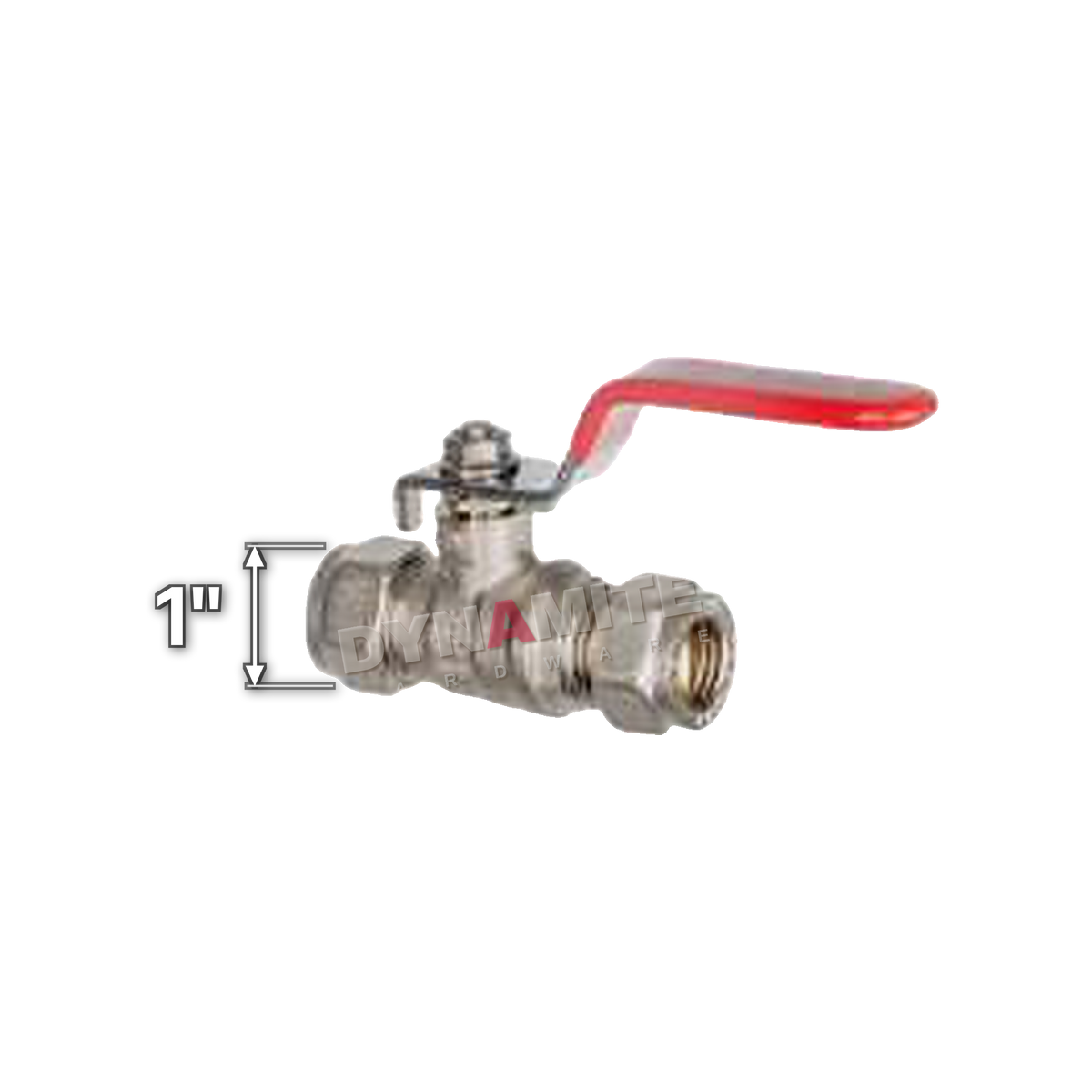

Reduced Bore Lever Ball Valve - Compression (Imperial), 1", size marked with a white arrow
Reduced Bore Lever Ball Valve - Compression (Imperial), ½", size marked with a white arrow
Reduced Bore Lever Ball Valve - Compression (Imperial), ¾", size marked with a white arrow
Reduced Bore Lever Ball Valve - Compression (Imperial), 1", size marked with a white arrow

Reduced Bore Lever Ball Valve - Compression (Imperial)

Size
Price
Regular price €6,49
Regular price Sale price €6,49
Save €-6,49
/
Tax included.

A brass lever ball valve with imperial compression nuts and olives on both ends. A quarter turn of the red lever turns the water fully on or off. Reduced bore (standard port) contract pattern: a cost-effective shut-off for domestic hot and cold water.

Made by Excel Industries.

Specifications

Type Ball valve (quarter turn)
Sizes available ½", ¾", 1"
Ends Compression x compression (imperial nuts & olives)
Bore Reduced bore
Operation Quarter-turn lever
Body Nickel-plated brass
Manufacturer Excel Industries
Excel codes 12BVCR (½"), 34BVCR (¾"), 1BVCR (1")

Imperial compression sizes: ½", ¾" and 1" fit Irish ½", ¾" and 1" copper pipe. For metric 15mm, 22mm or 28mm pipe, choose the metric version.

Not for gas.

Specifications from Excel Industries (catalogue Issue 26.7, isolation valves, page 37). Images are catalogue photos with sizes added.
