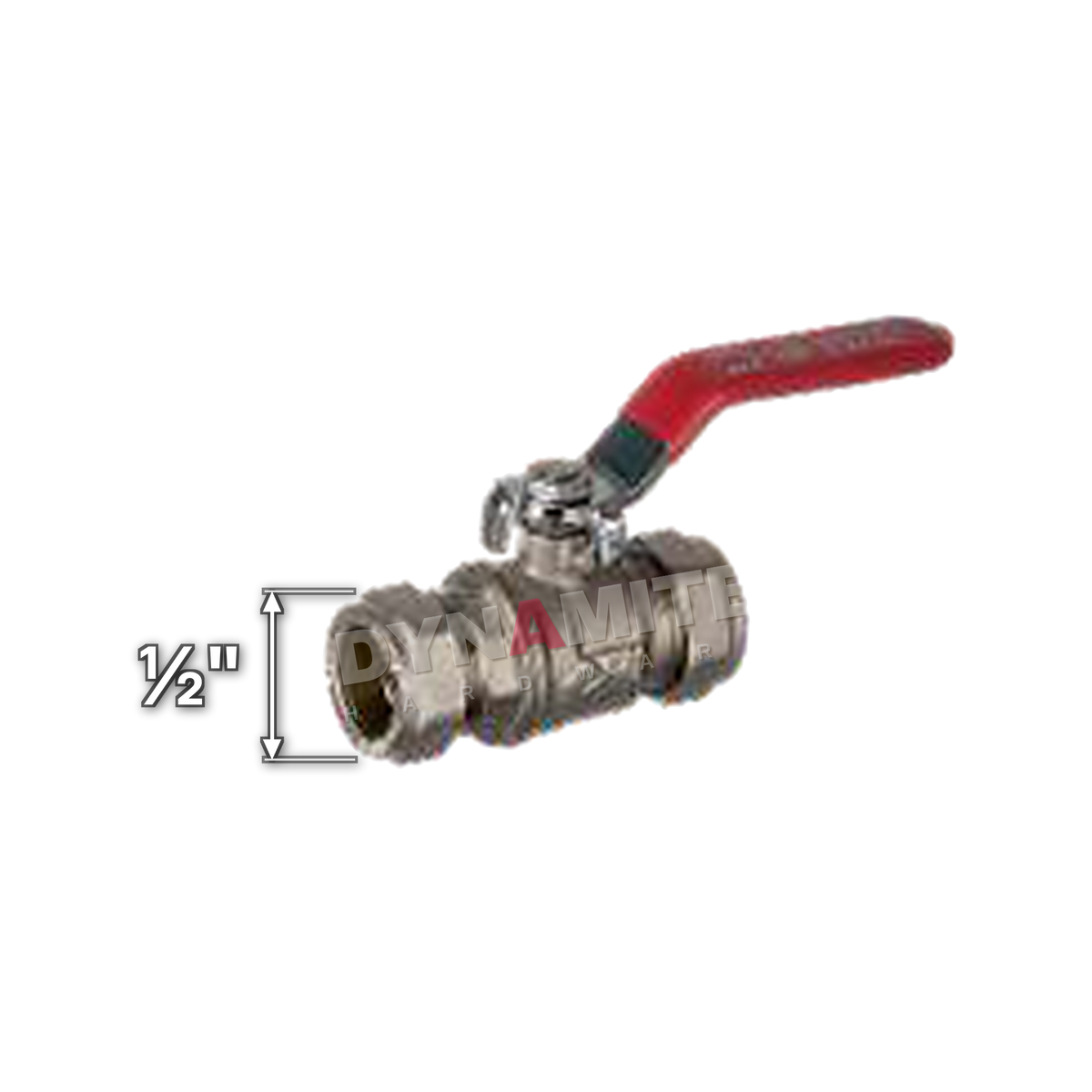

Full Bore Lever Ball Valve - Compression (Imperial), ½", size marked with a white arrow
Full Bore Lever Ball Valve - Compression (Imperial), ¾", size marked with a white arrow

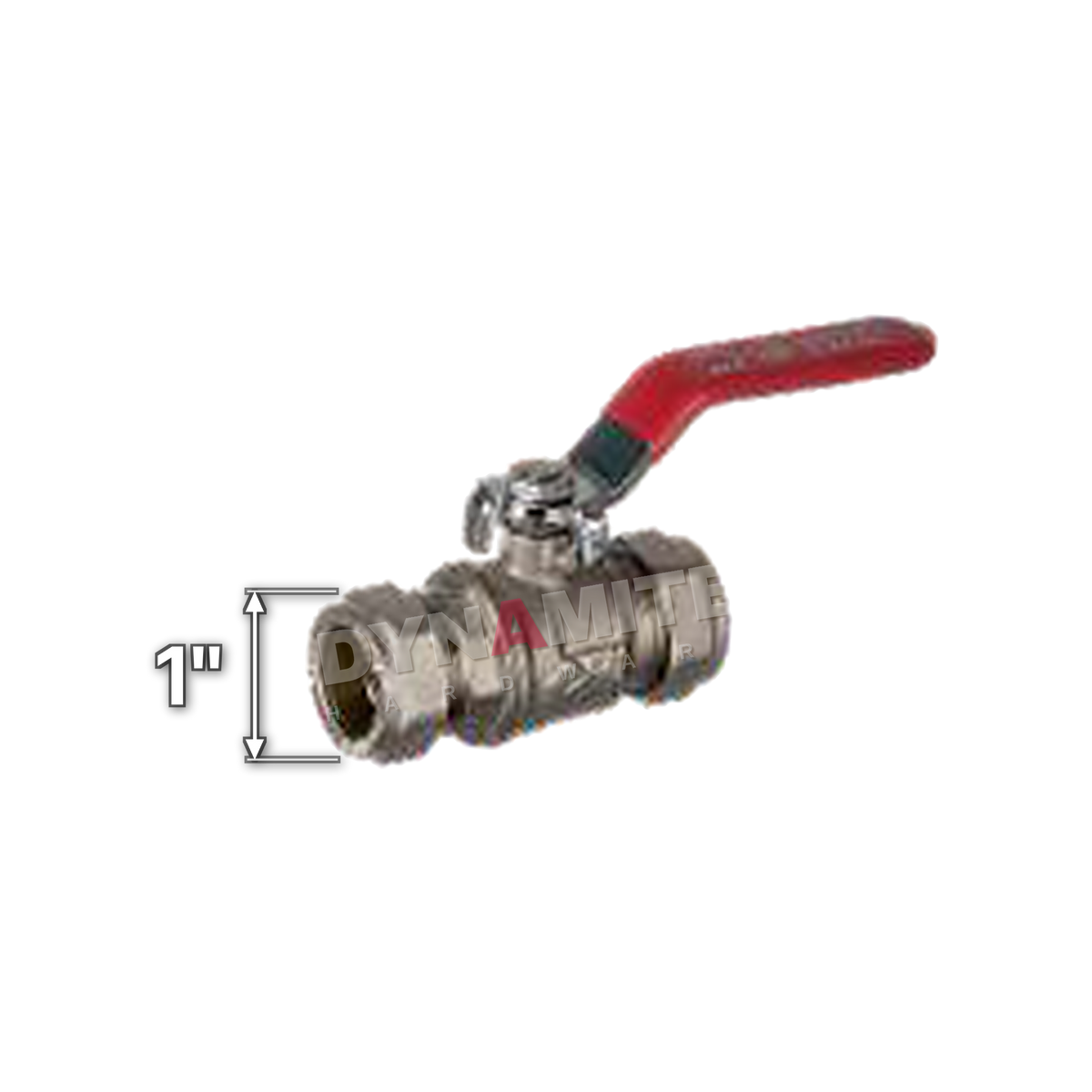

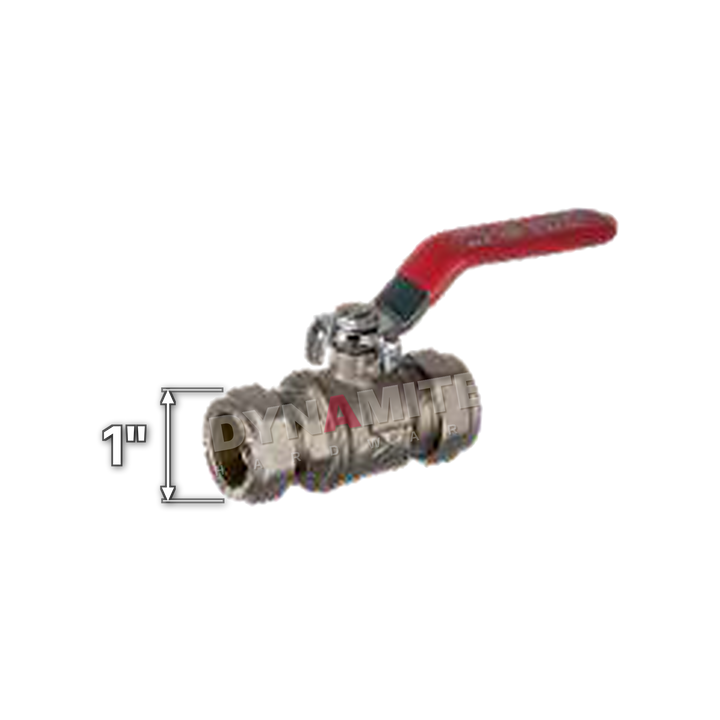

Full Bore Lever Ball Valve - Compression (Imperial), 1", size marked with a white arrow
Full Bore Lever Ball Valve - Compression (Imperial), ½", size marked with a white arrow
Full Bore Lever Ball Valve - Compression (Imperial), ¾", size marked with a white arrow
Full Bore Lever Ball Valve - Compression (Imperial), 1", size marked with a white arrow

Full Bore Lever Ball Valve - Compression (Imperial)

Size
Price
Regular price €6,49
Regular price Sale price €6,49
Save €-6,49
/
Tax included.

A full bore brass lever ball valve with imperial compression nuts and olives on both ends. A quarter turn of the red lever turns the water fully on or off, and the full bore gives an unrestricted flow. The valve has a gland tightening nut so the spindle can be re-sealed in service.

Made by Excel Industries.

Specifications

Type Ball valve (quarter turn)
Sizes available ½", ¾", 1"
Ends Compression x compression (imperial nuts & olives)
Bore Full bore
Operation Quarter-turn lever
Body Nickel-plated brass
Approval WRAS approved
Manufacturer Excel Industries
Excel codes 12BVC (½"), 34BVC (¾"), 1BVC (1")

Imperial compression sizes: ½", ¾" and 1" fit Irish ½", ¾" and 1" copper pipe. For metric 15mm, 22mm or 28mm pipe, choose the metric version.

Not for gas.

Specifications from Excel Industries (catalogue Issue 26.7, isolation valves, page 37). Images are catalogue photos with sizes added.
