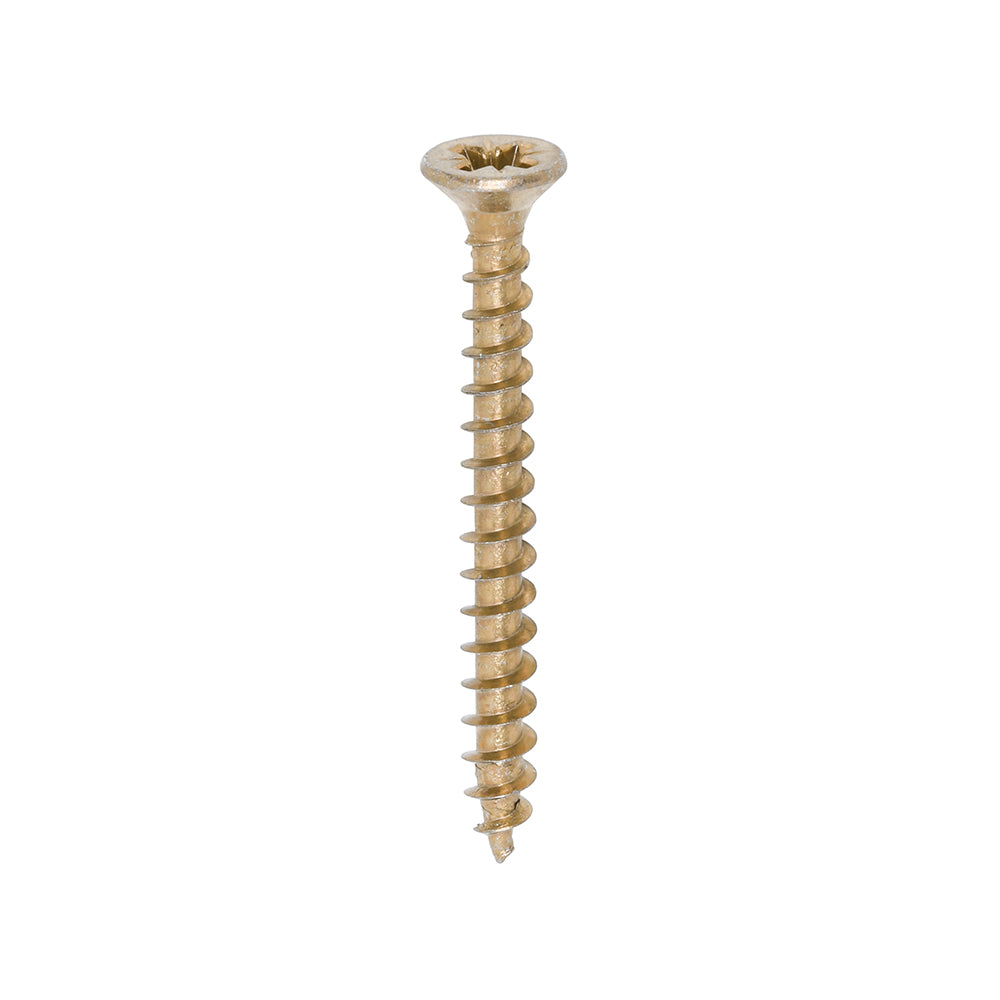

A single thread woodscrew mainly used in various types of timber and man-made boards or into masonry with the use of a plastic plug.
• Double countersunk reduces the likelihood of head shear and assists completion of countersinking
• Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion
• 40° deep single thread to provide a secure fixing with high pull-out resistance
• 25° sharp point and single lead for a fast start and improved thread acceptance
• All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length
Recess Type | Pozi |
Pack Type | Box |
L (mm) | 40 |
Point Type | 25° Sharp |
Finish | Zinc & Yellow |
MOQ | 1 |
Thread Ø (mm) | 4 |
Packs per Pallet | 1200 |
Substrates | Softwood, Chipboard, MDF, Masonry (with plug) |
L (inch) | 1 1⁄2 |
Packs per Carton | 50 |
Lubrication | Wax |
Head Type | Double Countersunk |
Material | Carbon Steel |
Thread L (mm) | 35 |
Size (imp.) | 8 x 1 1⁄2 |
Inner Thread Ø d1 (mm) | 2.5 |
Pack Qty | 200 |
Gauge | 8 |
Thread Type | 40° Single Deep |
Head Ø (mm) | 7.62 |
Pack Quantity Unit | Pieces |
Corrosion Rating (1-5) | 1 - Clean, dry & low humidity environments |
MOQ Increment | 1 |
Pallet Qty (pcs) | 240000 |
Size (mm) | 4.0 x 40 |
Driver Bit Size | PZ2 |
Feature 1 | Double countersunk reduces the likelihood of head shear and assists completion of countersinking |
Feature 5 | All sizes up to and including 75mm are fully threaded and lengths 80mm and above all have 70mm thread length |
Feature 2 | Wax lubricated to enhance screw insertion time, extra driving torque and resistance to corrosion |
Brand | TIMCO |
Feature 4 | 25° sharp point and single lead for a fast start and improved thread acceptance |
Feature 3 | 40° deep single thread to provide a secure fixing with high pull-out resistance |
Thread Coverage | Fully Threaded |
Pack Weight (kg) | 0.42 |
Pack Dimensions L x W x H (mm) | 92 x 70 x 60 |
